2.3 — Wiring Schematics
To wire up the ELNet LT Energy & Powermeter
No galvanic connection with the measurement current wire
(the current wire is passing through the current CT hole).

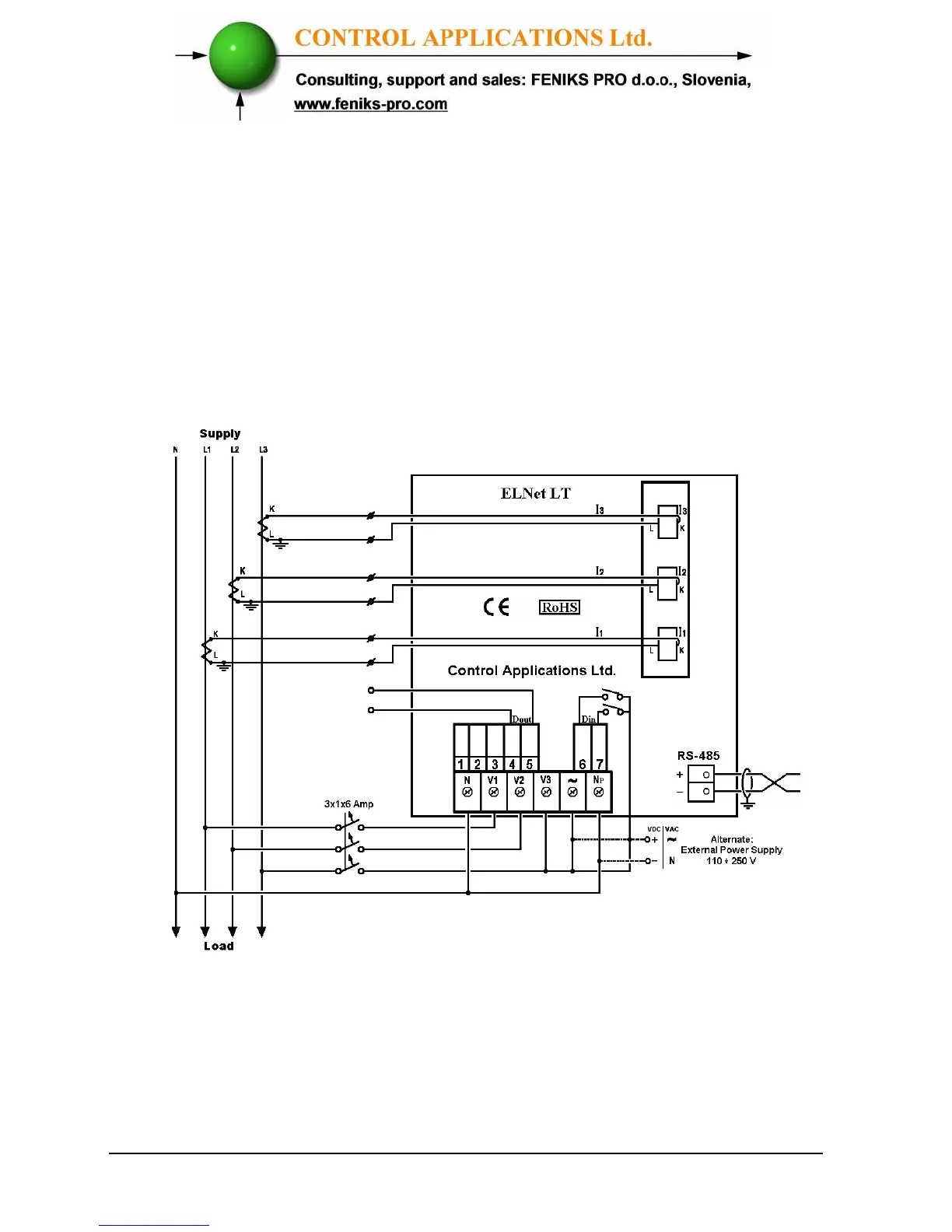

Figure 2.3 Schematic Wiring Diagram "Star" connection
