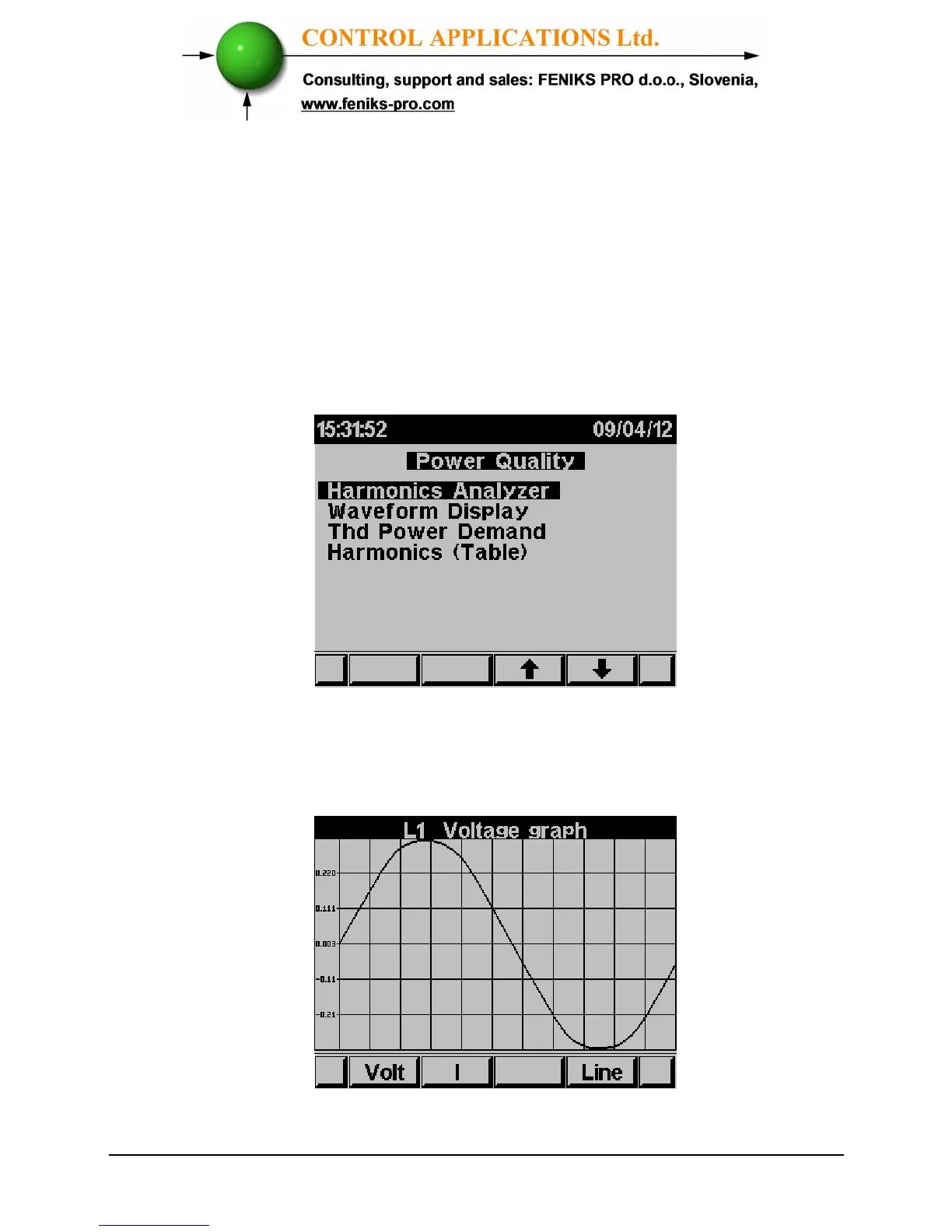

5.5.1 — Wave Form Display
To display Wave Form Graphs
1 From Main Menu scroll to Power Quality.
2 Click “ENTER” .
The Power Quality screen appears
Figure 5.8 Power Quality
3 Scroll to Waveform Display and click “ENTER”.
The Wave form Graphs screen appears
Figure 5.11 Voltage Graph
