ELNet LT - 4.7 - Delta;Open Delta;Star Electrical network definition

45

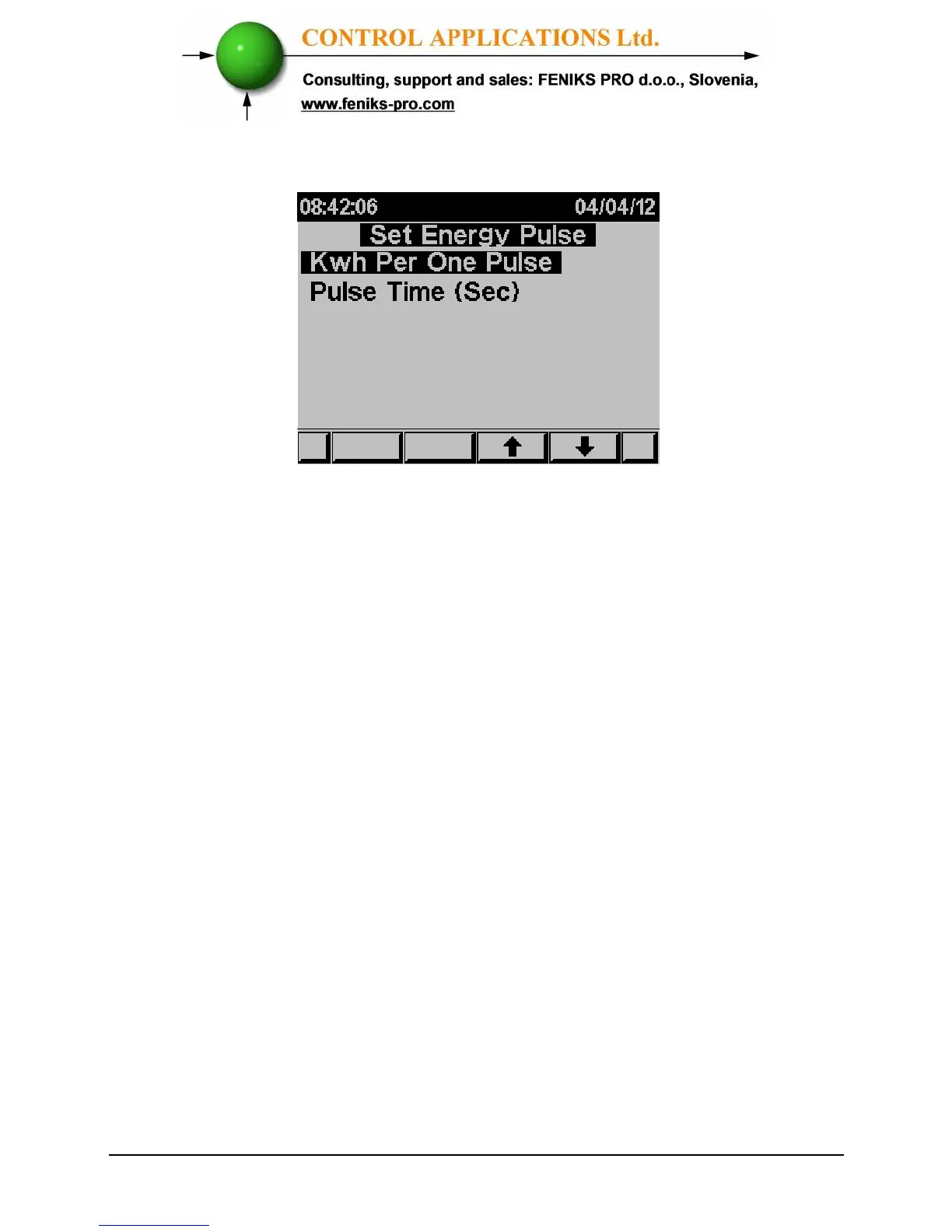

Figure 4.10 Set Energy Pulse
6 In order to set the KWH value pre pulse
scroll to KWH Per One Pulse and click
"ENTER".
7 In order to define how wide is the pulse
scroll to Pulse Time and click "ENTER".
8 Please note that while you are using the
output for energy pulse usage you cannot
use the same output for alarms.
4.7 — Delta/Open Delta/Star Electrical network
definition
The ELNet LT can be installed in three types of electrical
networks:
DELTA – a system without neutral line.
Open Delta (Aron) – a system without neutral line.
STAR – a system with neutral line
.
