5.2 — Reset I , V , F Peak values
In order to clear old peak values
1 From Main Menu scroll to Voltage, Current, Hz.
2 Click “ENTER” The Current Voltage and Frequency screen
appears.
3 Scroll to MIN/MAX RESET and click “ENTER”.
The Enter Code screen appears

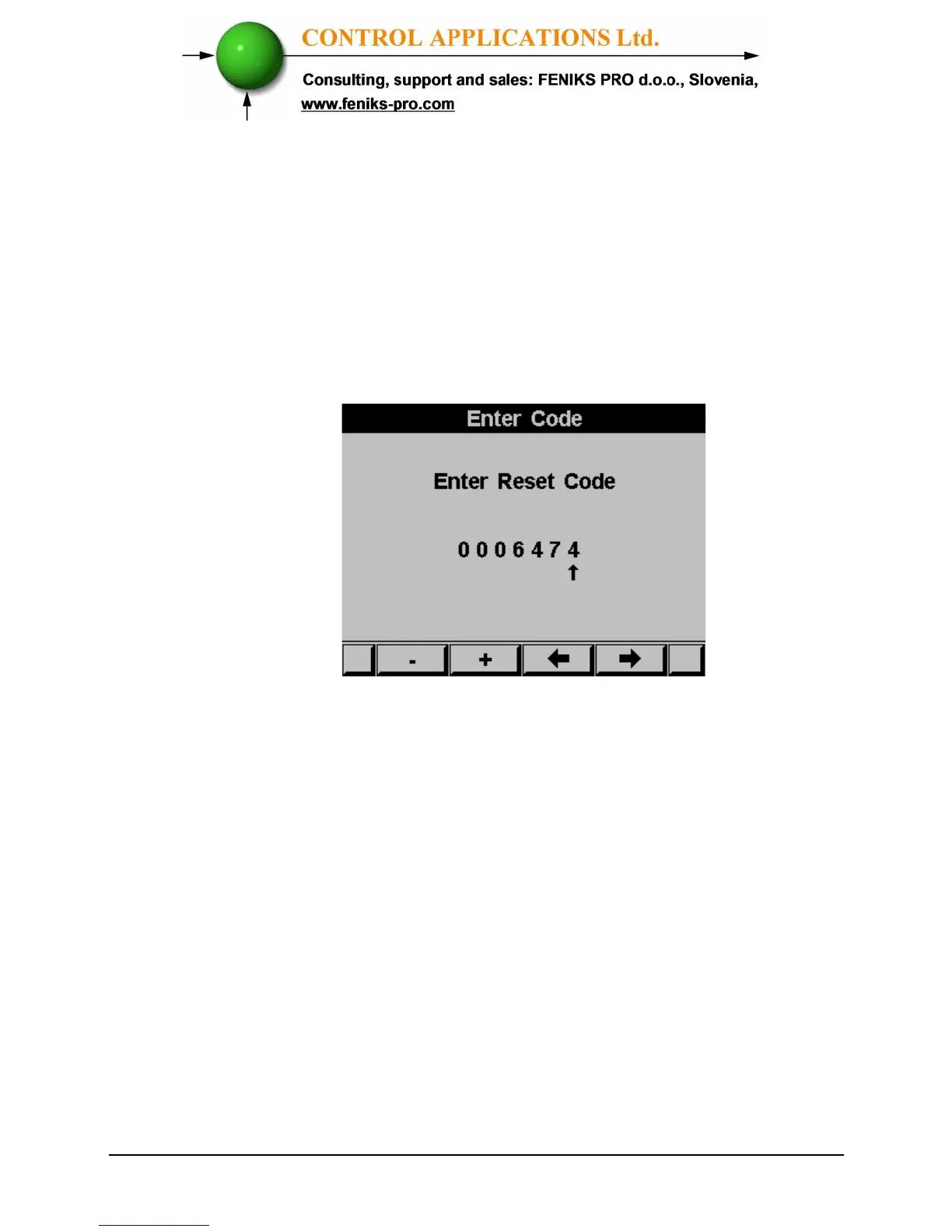

Figure 5.4 Enter reset code
In order to clear old peak values enter password 6474 .
Use the buttons F3 & F4 to move the cursor, to set the value
use buttons F1 &F2 .
5.3 — Leakage Current (LTP only)
Measuring the leakage current provides a very important safety
indication. If the leakage current exceeds the required safety
standards level a special and urgent examination of the electrical
system is required. ELNet LTP Energy & Powermeter
measures the leakage current by using the existing standard
measurement current transformers.
