CHAPTER 5 — FRONT PANEL DISPLAYS
In this chapter you will find instructions on how to obtain the
readings that the ELNet LT Energy & Powermeter provides,
e.g., Current, Voltage Power, Power Factor, Energy, and Power
quality.
5.1 — Current Voltage & Frequency
To display Current Voltage and Frequency for all 3 Phases
1 From Main Menu scroll to Voltage, Current, Hz.

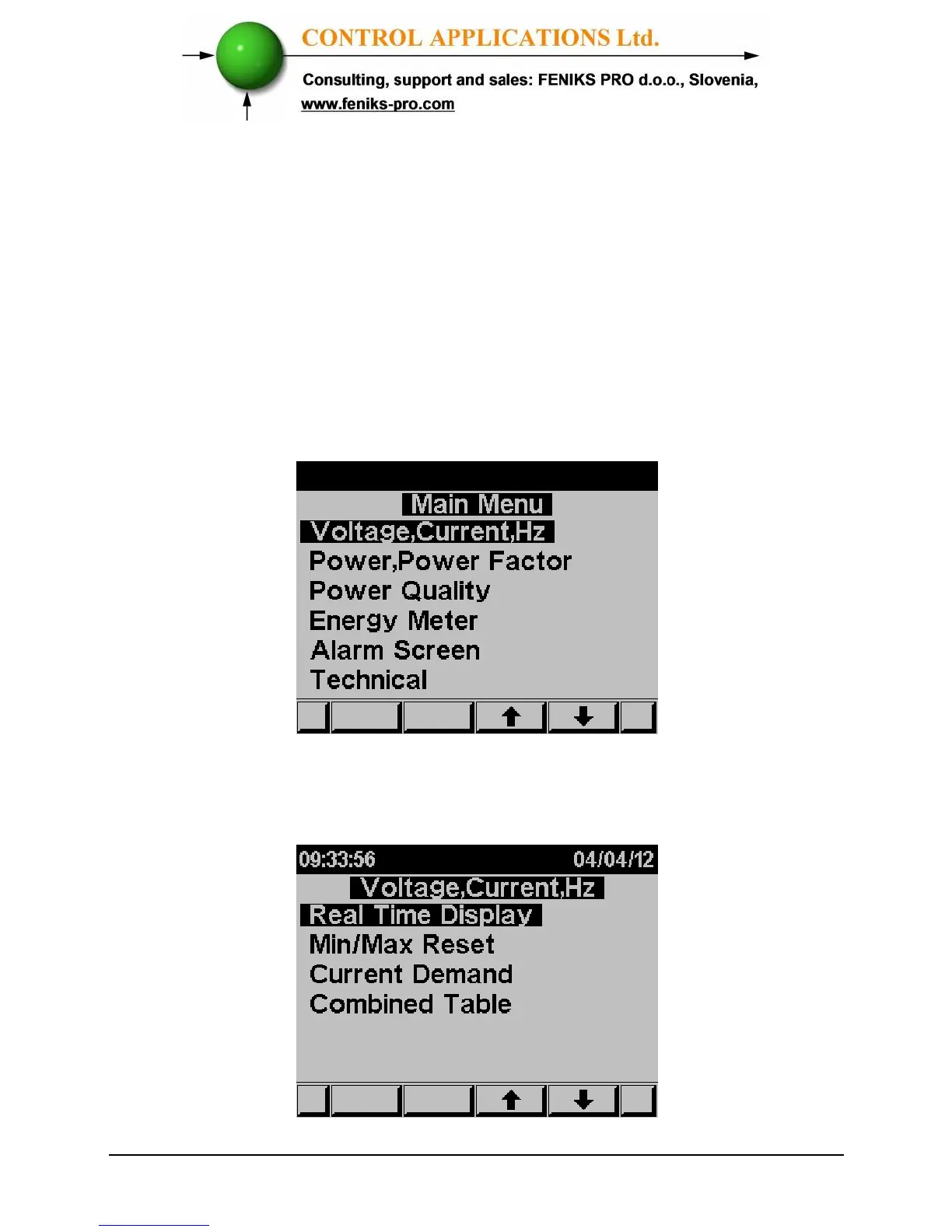

Figure 5.1 Main Menu
2 Click “ENTER”.
The Current Voltage and Frequency screen appears
Figure 5.2 Voltage, Current, Hz
