WARNING!
WARNING
Never allow an open circuit between the two Current
Transformer leads.
Repeat the procedure for Line 2 and Line 3.
Connect the rest of the connections to the ELNet LT
Energy
& Powermeter
by means of terminal connector plugs.

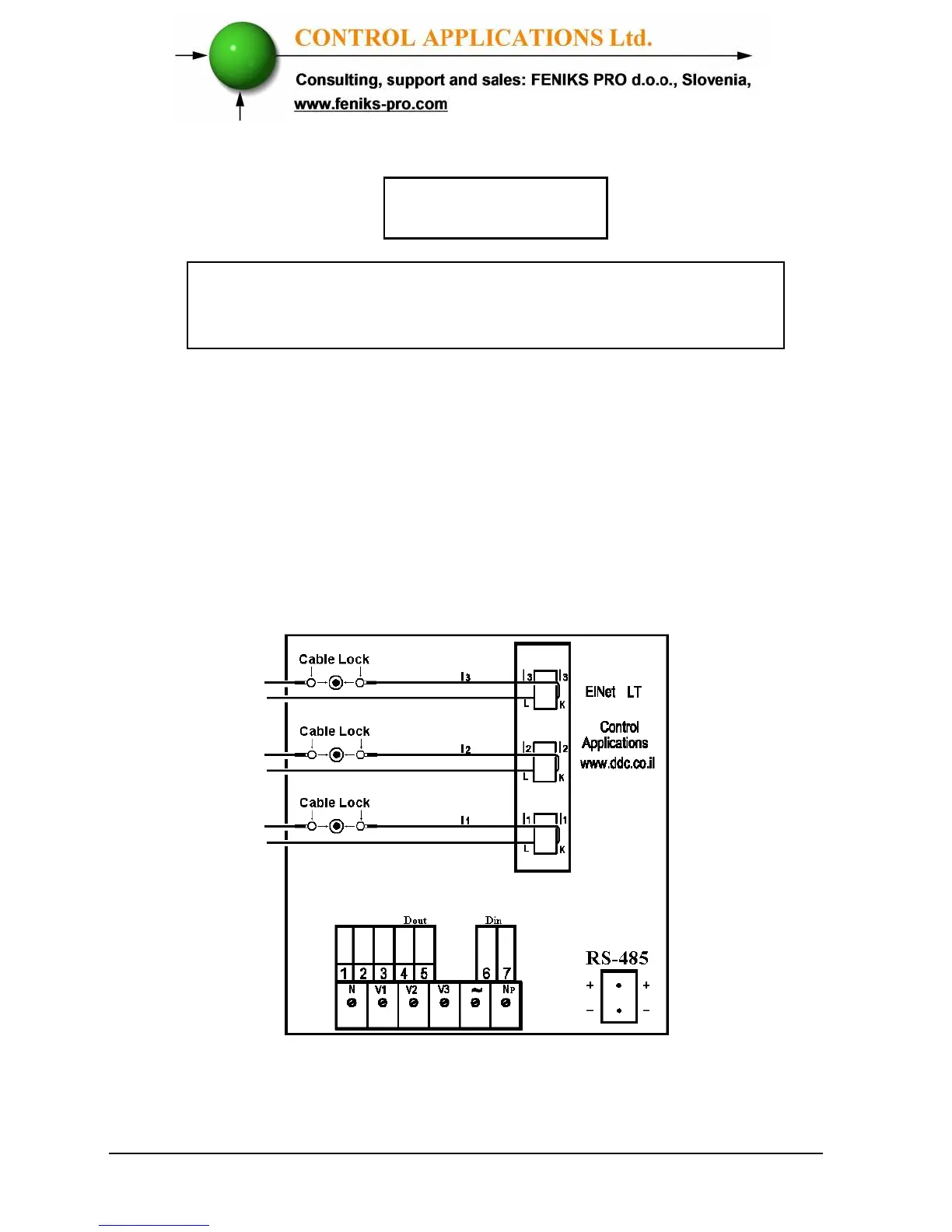

The Rear Panel (See Figure 2.4) has all connections printed and
is simple to follow. (See table 2-1 for connections)
