52

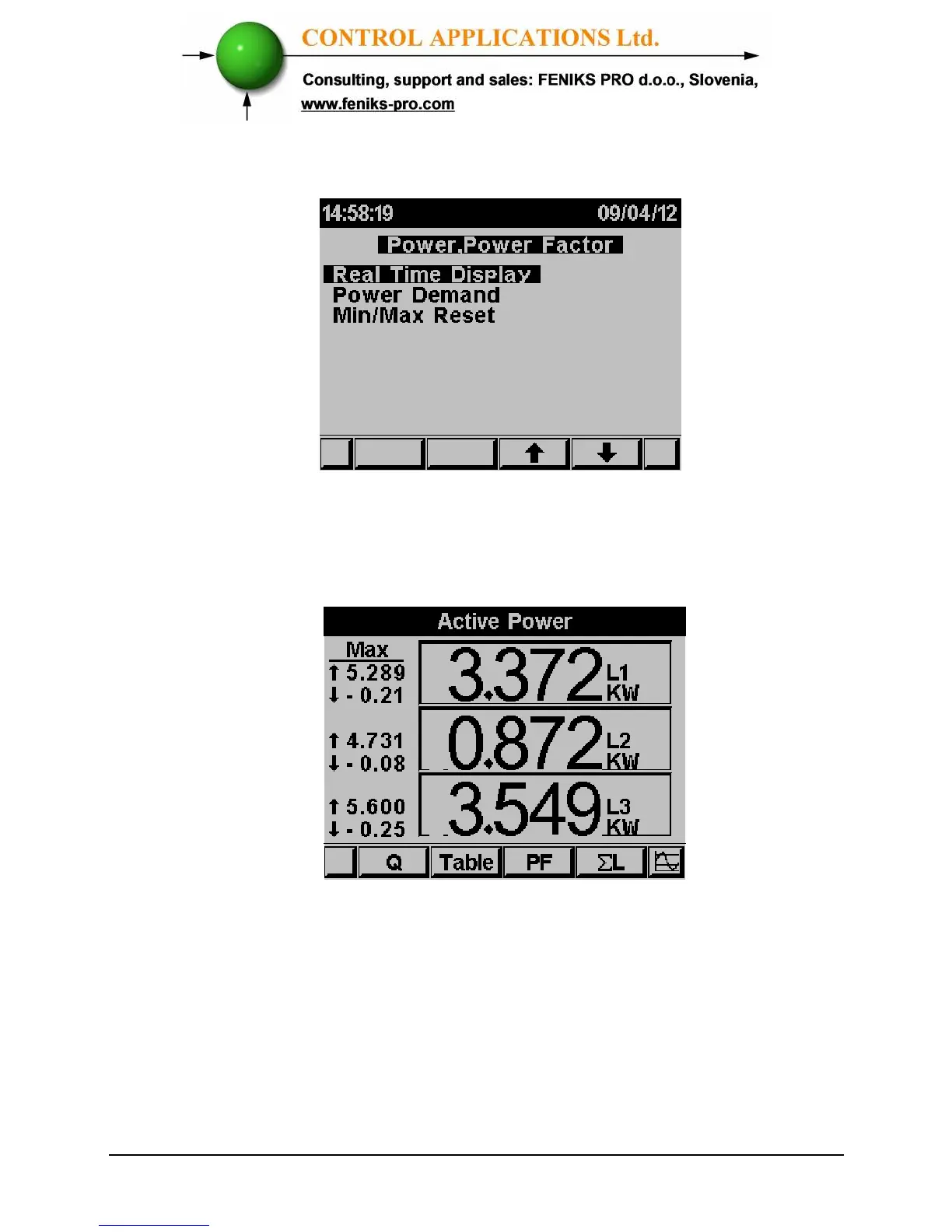

The Power, Power factor screen appears
Figure 5.7 Power, Power factor
3 Scroll to REAL TIME DISPLAY and click “ENTER”.
The real time Power, Power factor screen appears
Figure 5.6 Power factor
4 Use “F1” in order to display Reactive Power values.
5 Use “F2” in order to display Power values table view.
6 Use “F3” in order to display Power Factor values.
7 Use “F4” in order to display total 3 lines active reactive and
apparent power values.
