2.7 ems25advanced wiring diagram

Drip loops must be made in all cables

Note

For security, once ﬁtted, the rear cover can only be removed using a tool, such as a small, ﬂat

bladed screwdriver.

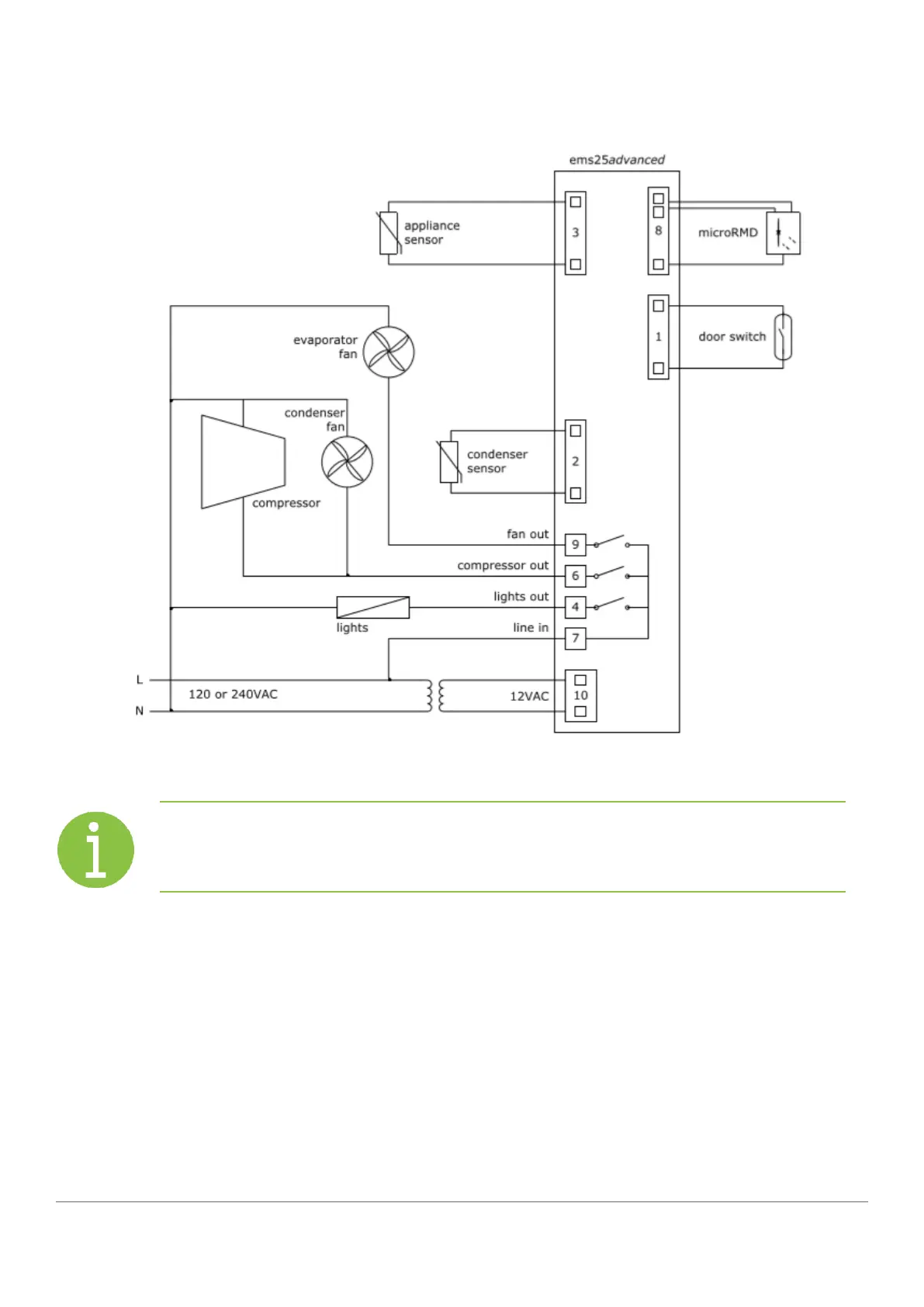

The wiring diagram for the ems25advanced:
