Note
The ems25 seriesc ontrollers must not be exposed to temperatures greater than 55°C (131°F) or
lower than 0°C (32°F).
2.8 How to mount ems25 series controllers
ems25 series controllers have an IP (Ingress Protection) rating of IP45. That is, the ems controller has protection
against water jets. Anappropriate level of protection must be given for the effects of water ingress due to water
jetting, condensation, product spillage, and so on.
Before beginning installation, remove all protective film from between the rear seals of the controller. The seals are
malleable, to ensure a water resistant seal around cables and prevent water ingress.

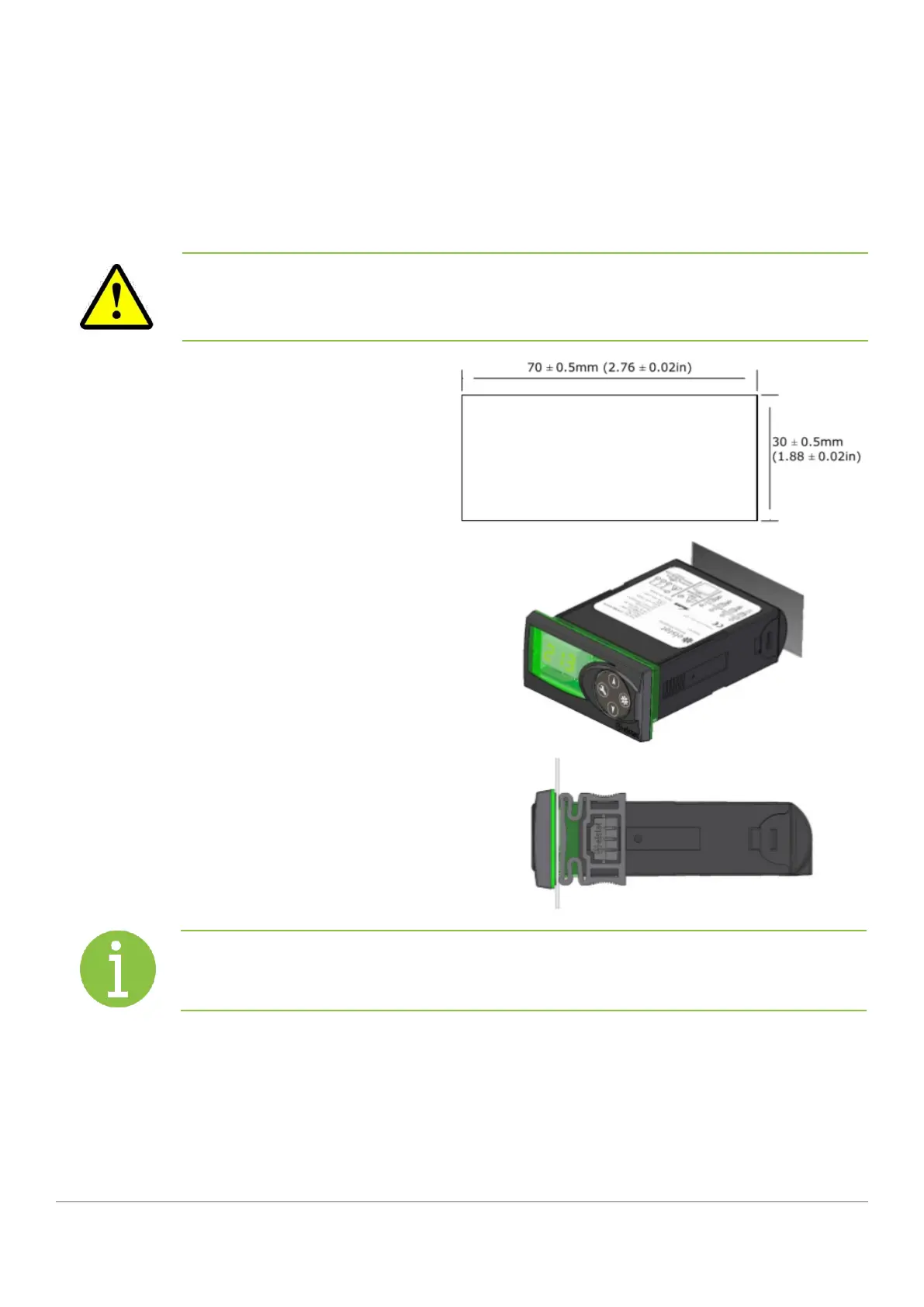

ems25 series controllers are designed for panel
mounting. The panel aperture dimensions are
shown to the right.
To mount an ems25 series controller, insert the
ems controller into the aperture as shown in the
example to the right.
Then, secure the ems controller into position using
the supplied display side-clips as shown to the
right.
Note
Decorative trim kits are supplied separately. See ‘ems decorative trims’ on page 88 The Large
decorative trim kits are screwed into place
To Next Page
