ELTRA ELEMENTRAC CS-i User Manual

Description
19
3.2 Back of the analyzer

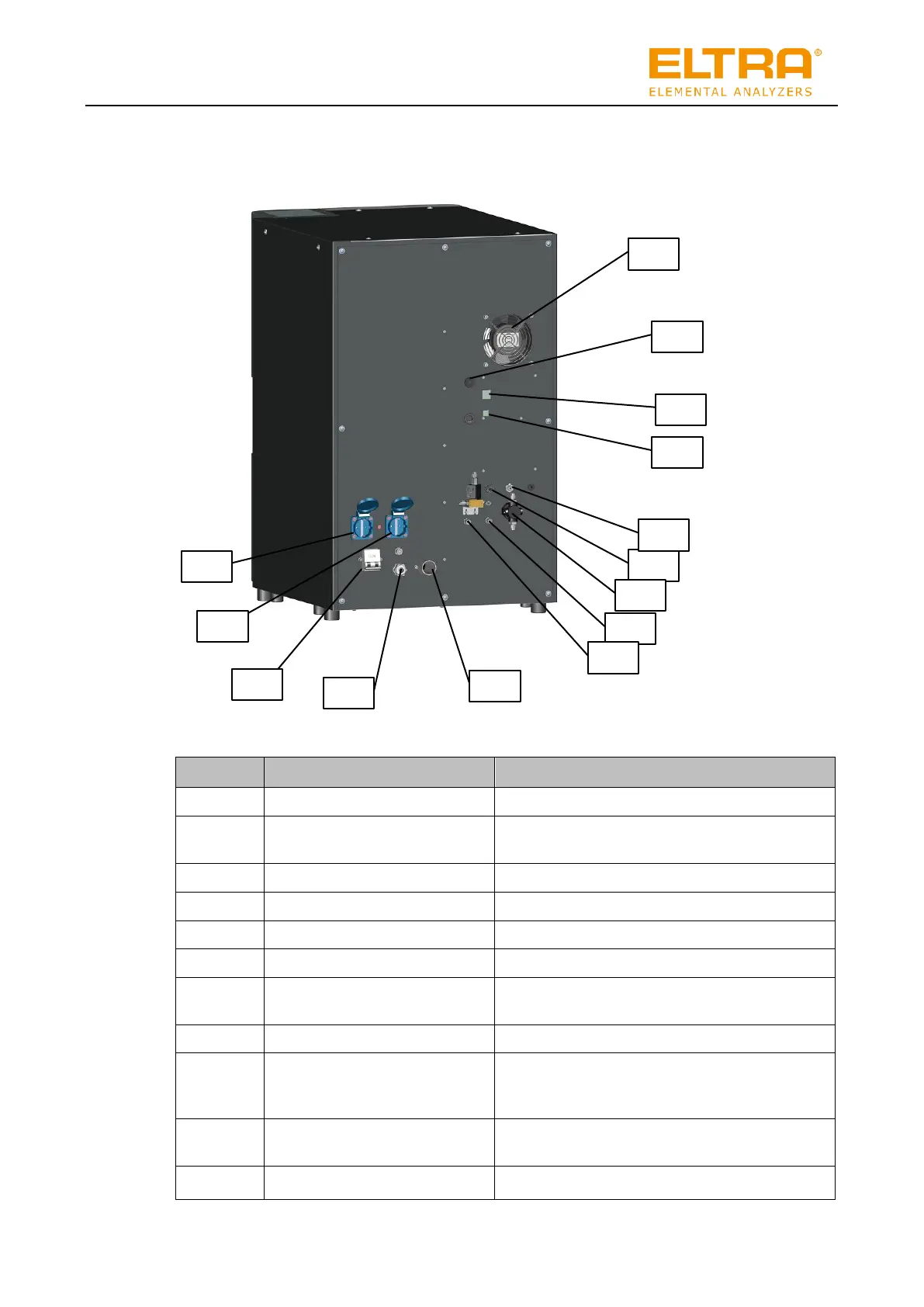

The following figure shows the back of the analyzer:
Fig. 3: Back of the analyzer
Position
Component
Description
1
Fan
Fan on the analyzer
2
USB cable (internally already
connected)
Cable for connecting to the PC
3
CAN connector
For connecting to the HTFr
4
USB connector
For connecting to the PC
5
Compressed air inlet
Compressed air connector
6
Gas outlet
For discharging the analysis gas
7
Carrier gas connector
Connector with pressure reducer for the carrier gas
oxygen
8
Inlet for analysis gas from the HTFr
Return of the analysis gas from the HTFr for analysis
9
Connector for carrier gas supply to
the HTFr
Carrier gas supply for the HTFr
10
Connector for vacuum cleaner
Connector for a vacuum cleaner to clean the furnace
after every analysis
11
Power connection
Connector for the machine’s power supply
1
2
3
4
6
7
8
5
9
11
10
13
14
12
