ELTRA ELEMENTRAC CS-i User Manual

Spare parts
69
11.1.3 Furnace
Position
Designation
Part No.
Quantity
1
M4-A2 cap nut
08.261.0001
2
2
Washer
08.701.0058
2
3
Spring
75122
2
4
Top knurled nut
14165
2
5
Roller bearing with
flange GFM-1112-
06
66500-0534
2
6
Bottom knurled nut
14161
2
7
Wing nut
76003
4
8
Glued
9
Bottom end plate of
the furnace
14025-2001
1
10
Pneumatic cylinder
14009-2001
1
11
Cone
14180
1
12
Cone insert
14170
13
Crucible tray
14168
1
14
Crucible
90148
90149
1000
15
Combustion tube
14130
1
16
Combustion coil
13067
1
17
Mounting bar
14080
2
18
Retaining ring
08.647.0006
2

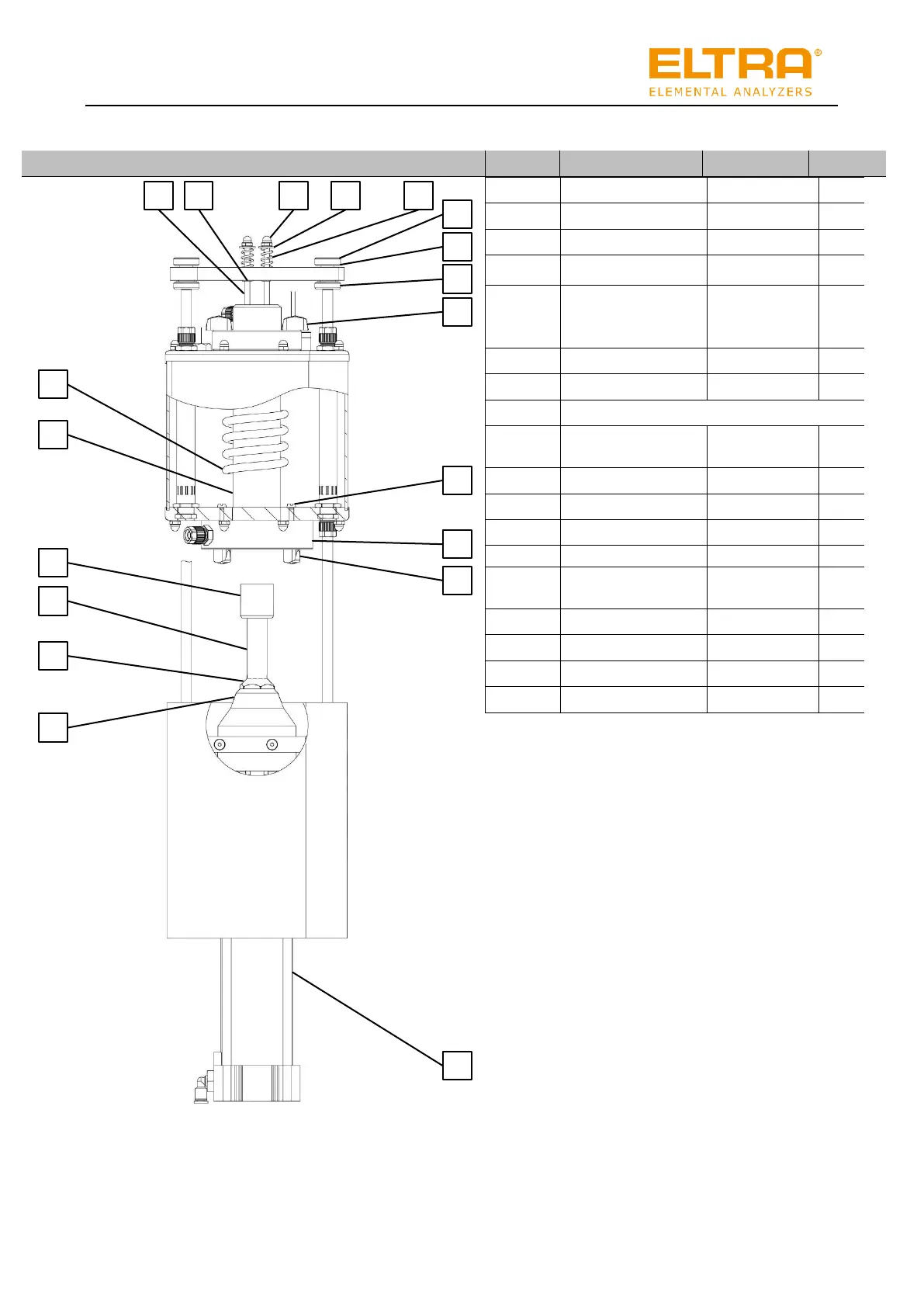

Fig. 31: Furnace, front view 1
1
2
3
4
5
7
8
9
7
10
11
12
13
©
15
16
17
18
6
14
