10.1.6 Filling the reagent tube on the catalyst furnace
CAUTION
C27.0094
Risk of burns
Hot catalyst furnace
− The furnace temperature of the catalyst furnace can be up to 800 °C
during operation and cause burns.
• Wear heat-resistant protective gloves when working with the catalyst
furnace .
• Only replace the catalyst furnace filling after a sufficiently long
cooling period.

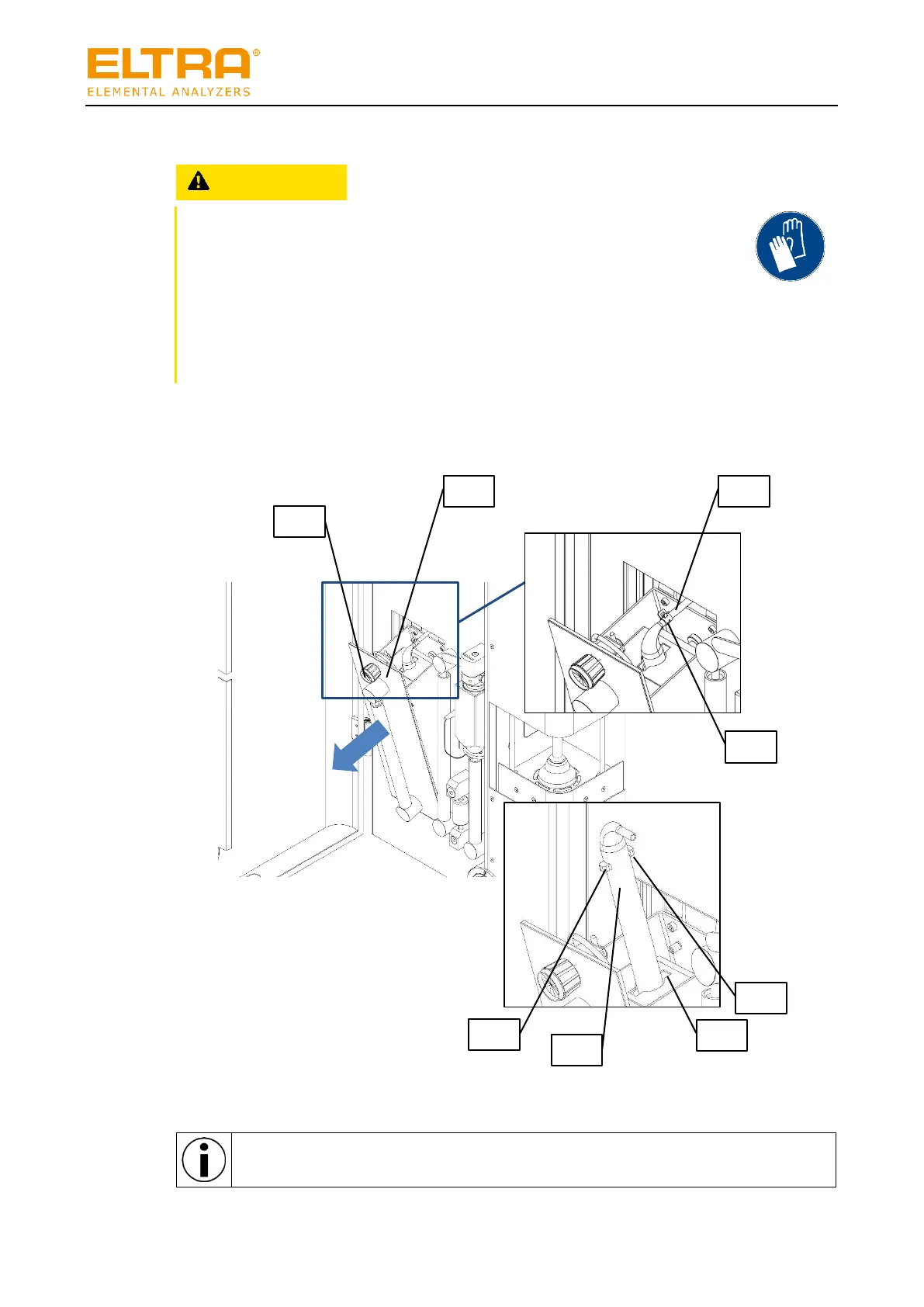

This diagram shows the front of the analyzer with open catalyst furnace and details of the
reagent tube:
Fig. 9: Open catalyst furnace with details of the reagent tube
The catalyst furnace is only functional once it has reached its operating temperature.
7
8
1
2
6
4
5
3
