10.1.10 Cleaning the connecting hose between the furnace and metal filter
Clean the hose connection from the dust filter to the furnace on the analyzer as follows:
1. Open the machine door (see Pos. 11 in “Front”).
The following figure shows the hose connection from the dust filter to the furnace of the
analyzer:

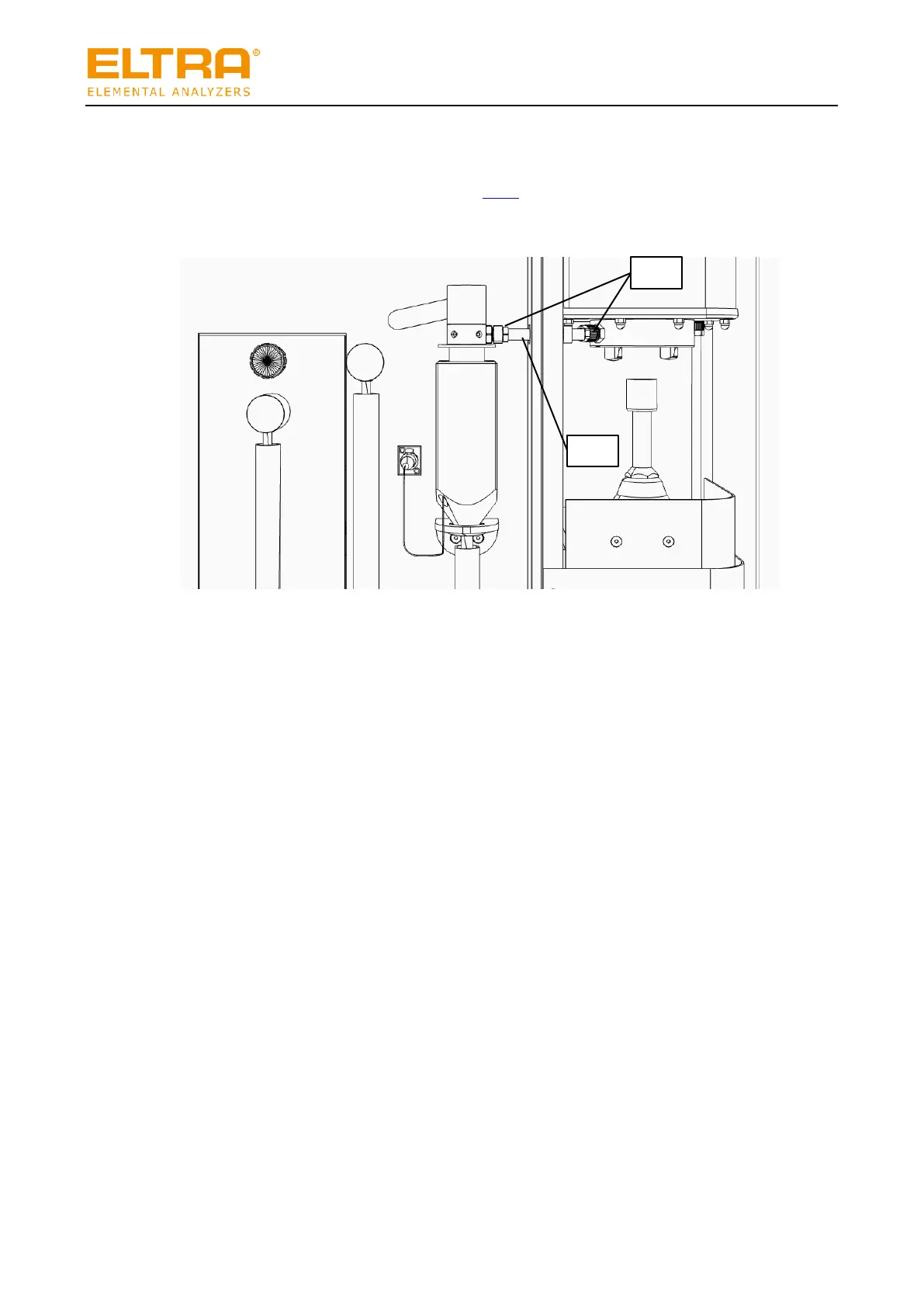

Fig. 25: Hose connection from the dust filter to the furnace
2. Unscrew the hose nuts on the filter connector and on the bottom furnace locking device (1).
3. Pull the hose (2) off.
4. In der ELEMENTS software, start the vacuum (“Analyzer status” window under “User
service”) or use an external vacuum cleaner to remove falling particles while cleaning.
5. Clean the hose with a pipe cleaner (Part No. 70002) or with a micro-brush (Part No. 88400-
0501).
6. Replace the hose (Part No. 51100-2040) if it can no longer be cleaned or leaks.
7. Insert the hose (2) and secure the hose nuts (1).
8. Close the machine door.
The hose connection from the dust filter to the furnace has been cleaned.
