Proceed as follows to remove a reagent tube on the front of the analyzer:
1. Turn the main switch on the analyzer to Position 1.
2. On the “Status analyzer” page of the ELEMENTS software, press the “Change reagents”
button to release the pressure.
The following diagram shows an example of removing a reagent tube on the front of the
analyzer:

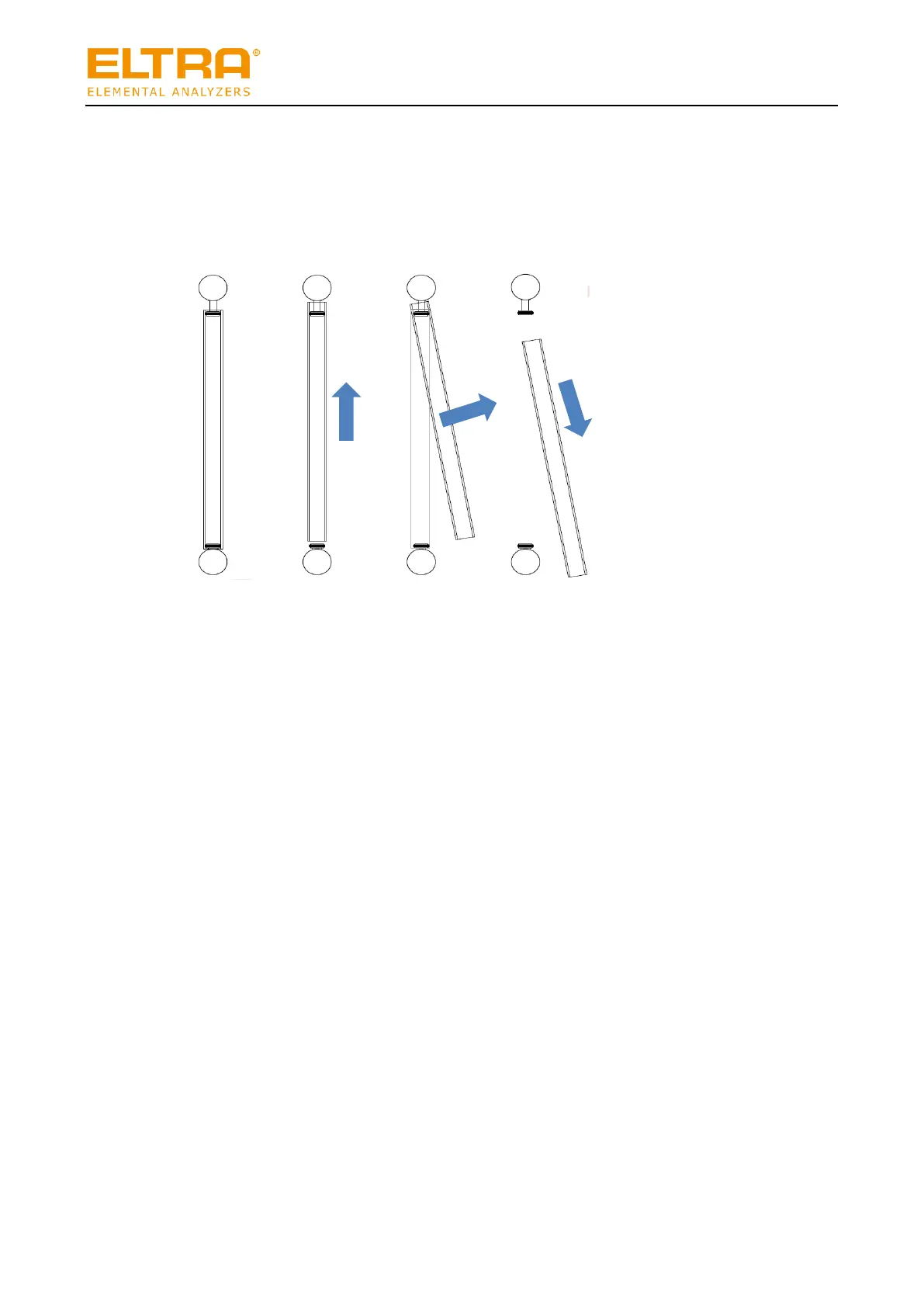

Fig. 6: Removing the reagent tube on the front of the analyzer
3. Slide the reagent tube upwards.
4. Swivel the reagent tube slightly to the side or to the front.
5. Pull the reagent tube out from below. If the reagent tube cannot be moved easily, turn it
slightly while puling it out.
The reagent tube on the front of the analyzer has been removed.
