AIRPLANE
FLIGHT
MANUAL
LIMITATIONS
ANAC APPROVED 2-06
REVISION 13 code 01 Page 1
AFM-1385

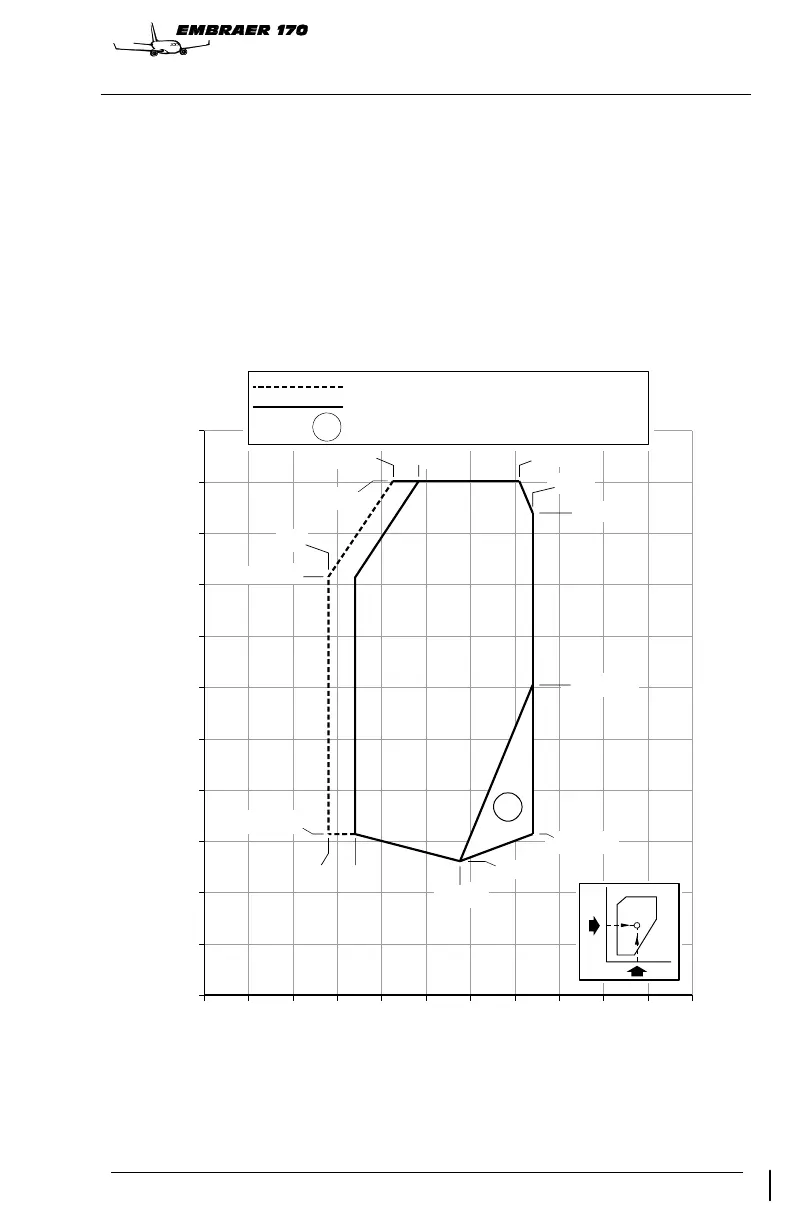

CENTER OF GRAVITY ENVELOPE
EMBRAER 170 STANDARD, LR, SE AND SU MODELS PRE-MOD
SB 170-00-0003 AND PRE-MOD 170-00-0016
NOTE: The data below must be used in conjunction with the maximum
weight values (ramp, takeoff, landing and zero fuel) associated
to each model and found in the Maximum Weight table.
90000
85000
80000
75000
70000
65000
60000
55000
50000
45000
40000
35000
0−10 −5 5 10 15 20 25 30 35 40 45
27%
82011 lb
65256 lb
50706 lb
48060 lb
4%
50706 lb
75728 lb
18.8%
WEIGHT − lb
CG POSITION − % MAC
4%
7%
14.2%11.2%
25.5%
1
INFLIGHT LIMITS (FLAPS AND GEAR UP)
TAKEOFF AND LANDING LIMITS
NOT ALLOWED FOR TAKEOFF
1REGION
85097 lb
EM170AOM020103C.DGN
