Hardware components
19
Hardware Overview

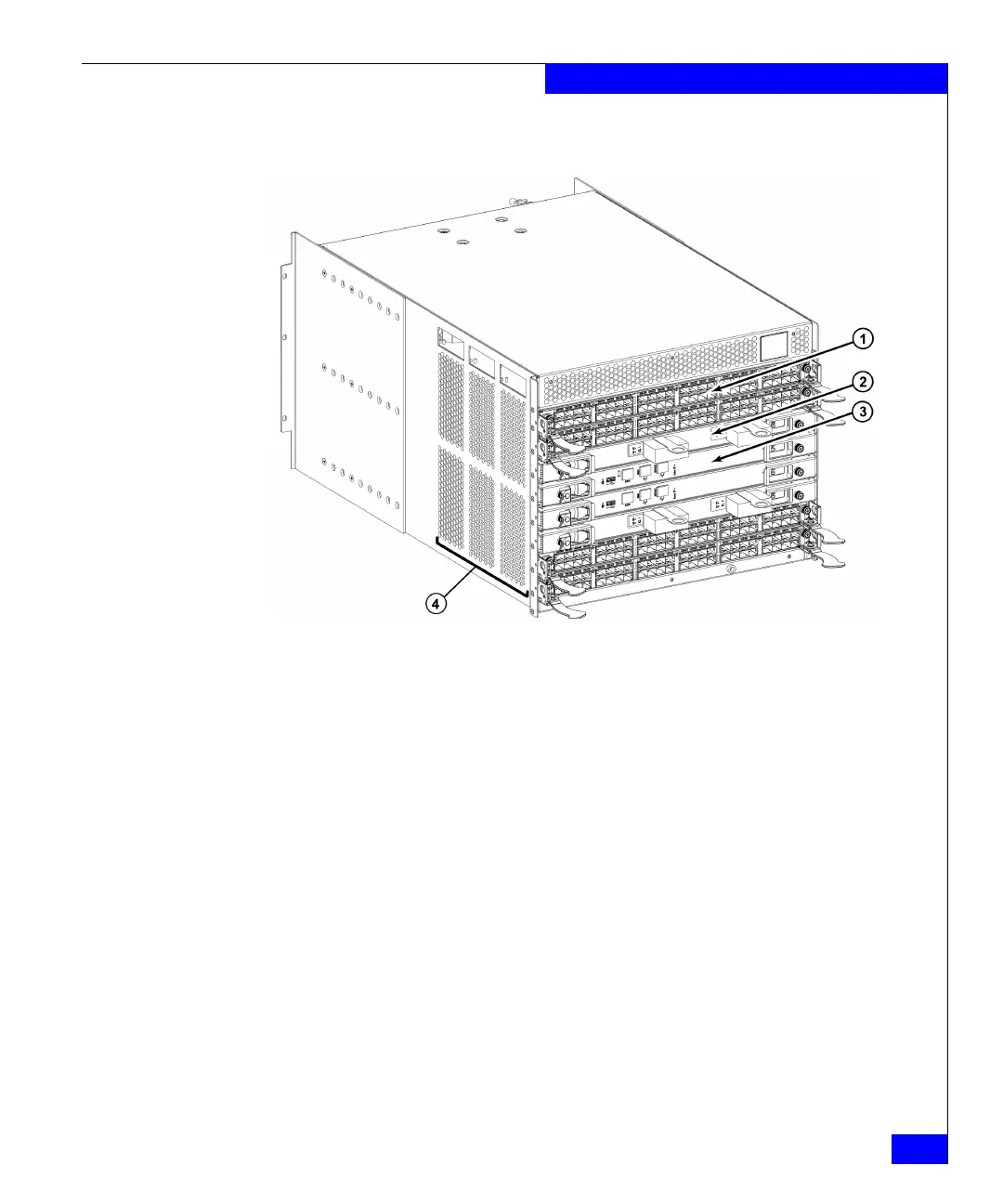

Figure 1 Port side of the ED-DCX-4S-B (sample configuration)
1 PB-DCX-48P port blade (example, 4x) 3 Control processor blade (CP8) (2x)
2 Core switch blade (CR4S-8) (2x) 4 Exhaust vent
