EMC Connectrix B Series v6.2 ED-DCX-4S-B Hardware Reference Manual
Hardware Overview

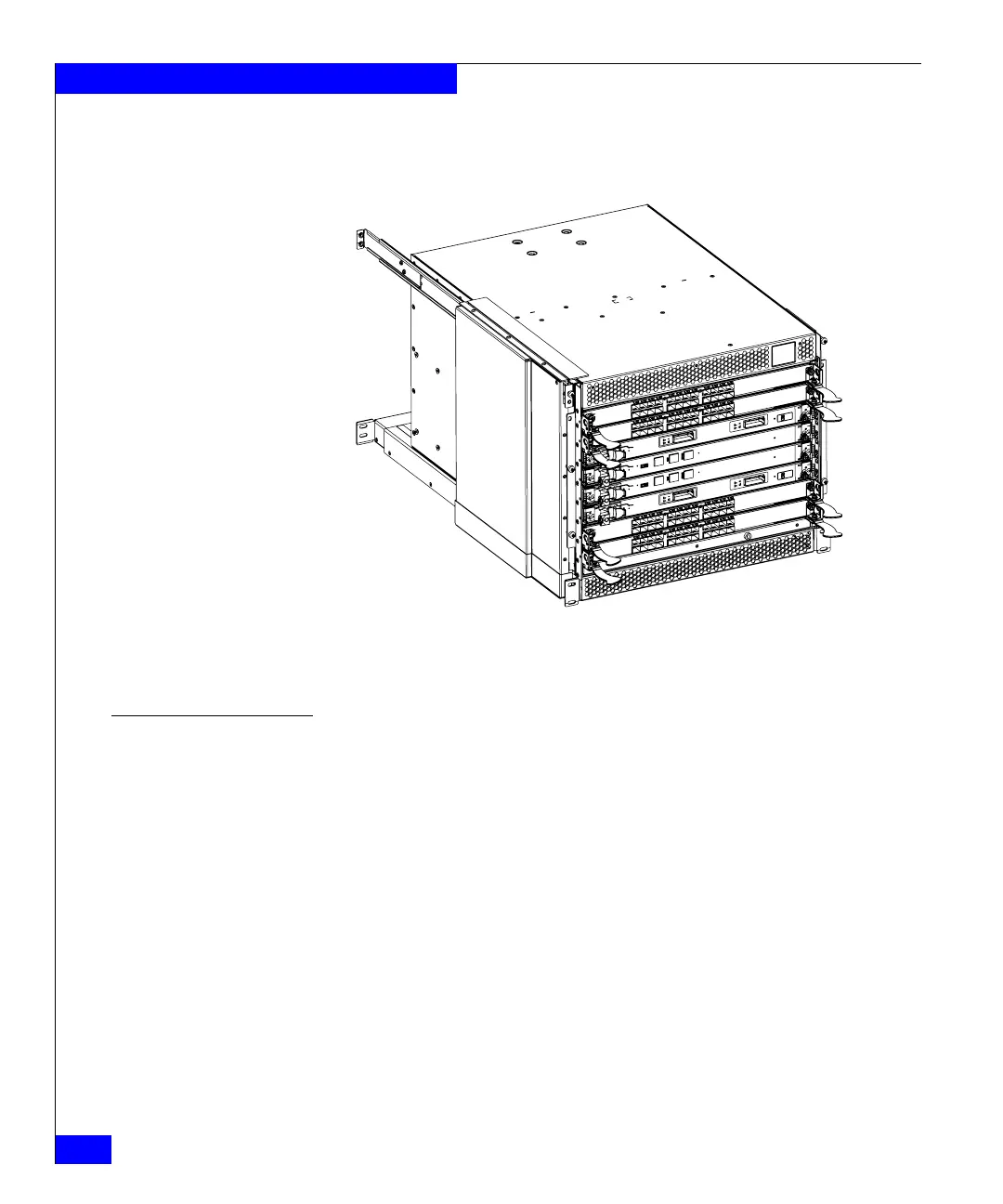

Figure 2 Port side of the ED-DCX-4S-B with the port side exhaust kit installed
(sample configuration)
Nonport side of the ED-DCX-4S-B
Figure 3 on page 21 displays a sample configuration of the nonport
side view of the ED-DCX-4S-B.
