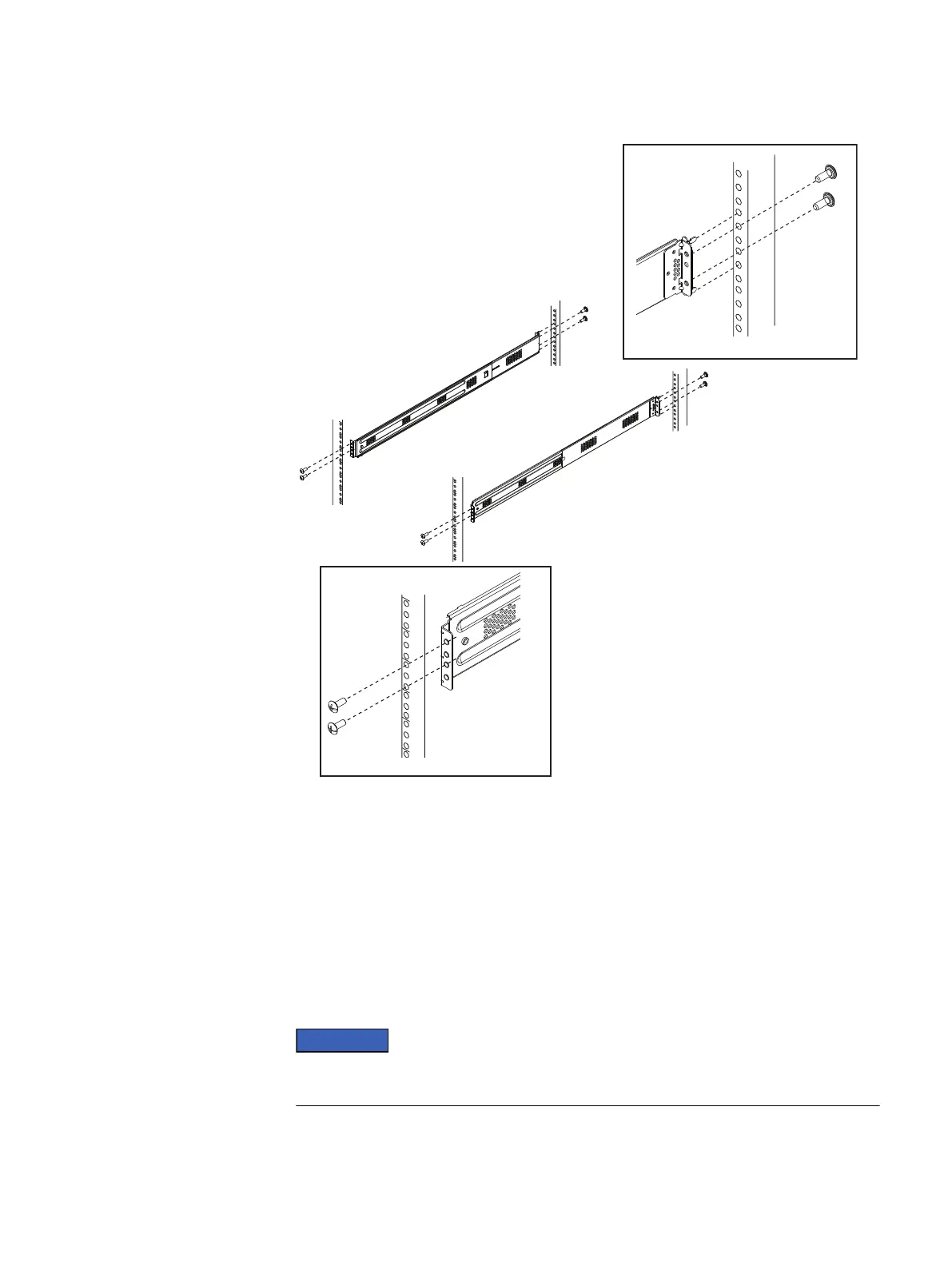

Figure 2 Installing the SPE SPS rails
Installing the SPE rails
The SPE rails should be installed immediately above the SPS rails. The left adjustable rail
has a connector protruding from the front which goes through a hole in the front channel
of the cabinet and will connect to light the bezel.
Procedure
1. Insert the adjustable 4U rail slide and seat the alignment pins into the rear channel of
your cabinet.
2. Extend the rail and align the front of the rails as shown in Figure 3 on page 23.
NOTICE
On the left adjustable rail, there is a blue light power connector protruding from the
front of the adjustable rail which goes through a hole in the front channel.
Assemble components in your cabinet
22 EMC VNX Series VNX8000 Block Installation Guide
