EMC2 VNX Series Installation Guide

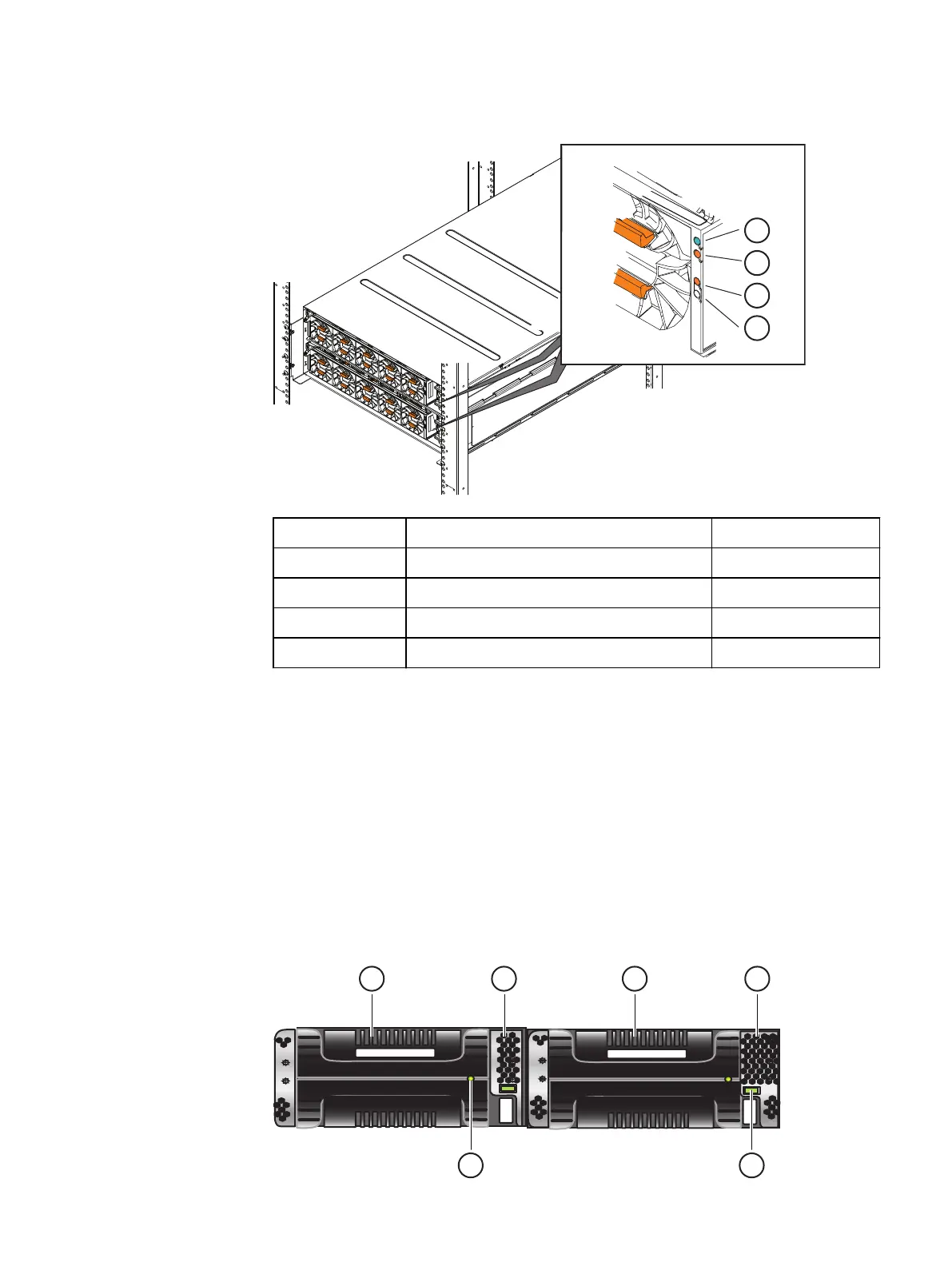

Figure 37 SPE LEDs
1
2
4
3
Location LEDs State/color
1 SP power LED On/blue
2 SP chassis fault LED Off
3 SP fault LED Off
4 Unsafe to remove LED Off
Procedure
1. Verify that the CPU power LED on each storage processor is blue.
2. Verify that the fault LEDs on each storage processor are off.
If any fault LEDs are on, or if any power LEDs remain flashing after approximately 15
minutes of operation, contact your authorized service provider.
Verify SPS status
Ensure that the SPS is powered up correctly by using the physical indicators. The
hardware information guide for your system provides more information on all the LEDs.
Figure 38 SPS LEDs
1 2
3
4
5
6
Power up
Verify SPS status 51
