EMC2 VNX Series Installation Guide

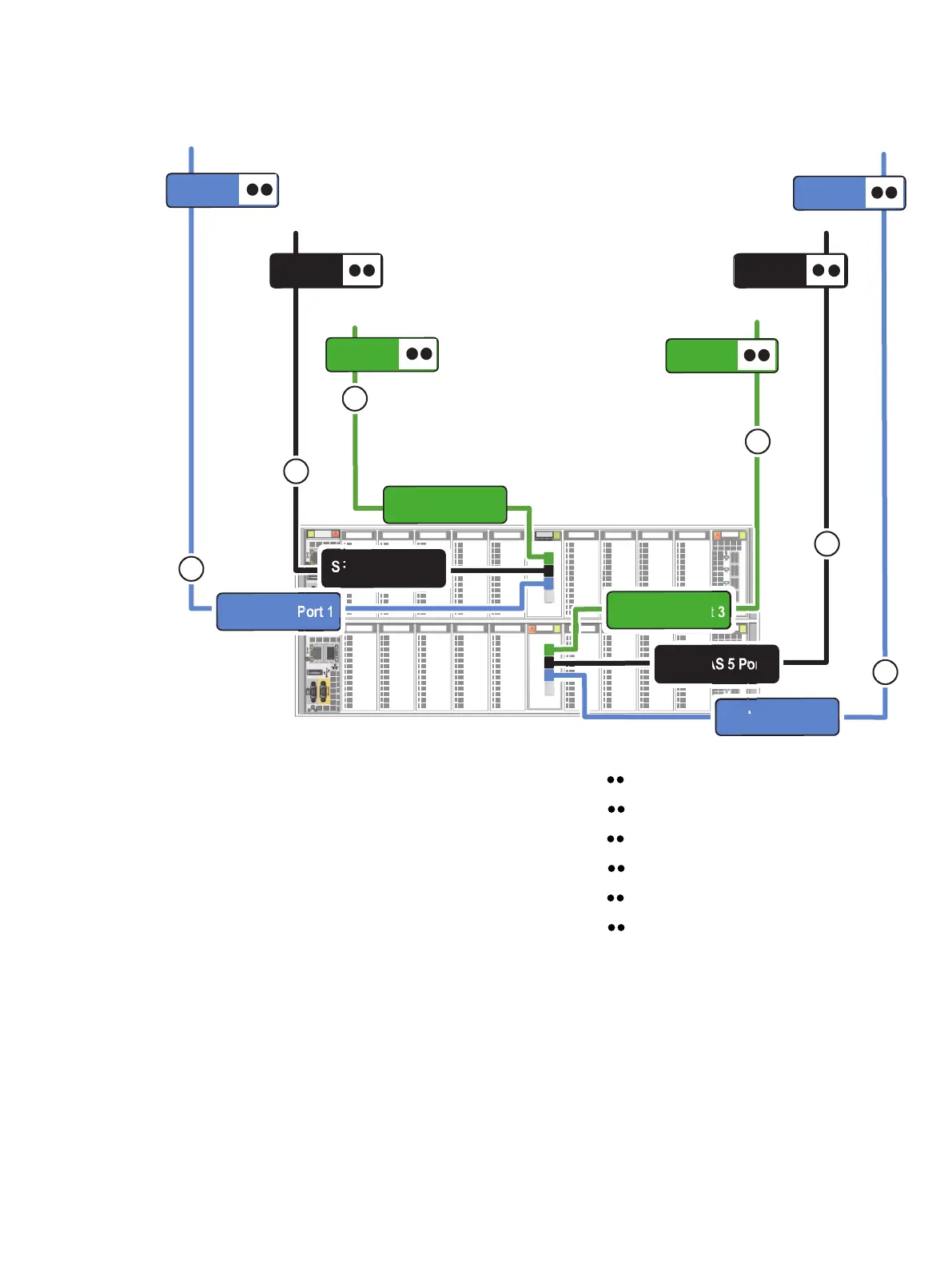

Figure 45 Cabling the other ports from the first SAS I/O module to DAEs
SP A SAS 5 Port 2
LCC B
LCC A
SP B SAS 5 Port 2
SP A SAS 5 Port 3
LCC A
LCC B
SP A SAS 5 Port 1
SP B SAS 5 Port 1
LCC A
LCC
B
SP B SAS 5 Port 3
1
2
3
4
5
6
a. Connect SP A SAS 5 port 1 to DAE 1 LCC A ( ). This is cable 1.
b. Connect SP B SAS 5 port 1 to DAE 1 LCC B ( ). This is cable 2.
c. Connect SP A SAS 5 port 2 to DAE 2 LCC A ( ). This is cable 3.
d. Connect SP B SAS 5 port 2 to DAE 2 LCC B ( ). This is cable 4.
e. Connect SP A SAS 5 port 3 to DAE 3 LCC A ( ). This is cable 5.
f. Connect SP B SAS 5 port 3 to DAE 3 LCC B ( ). This is cable 6.
3. Optionally, connect additional storage to the ports in the SAS I/O module in slot 10 of
the SPE. See Figure 46 on page 64.
Add additional storage
Connecting additional DAEs to your VNX system 63
