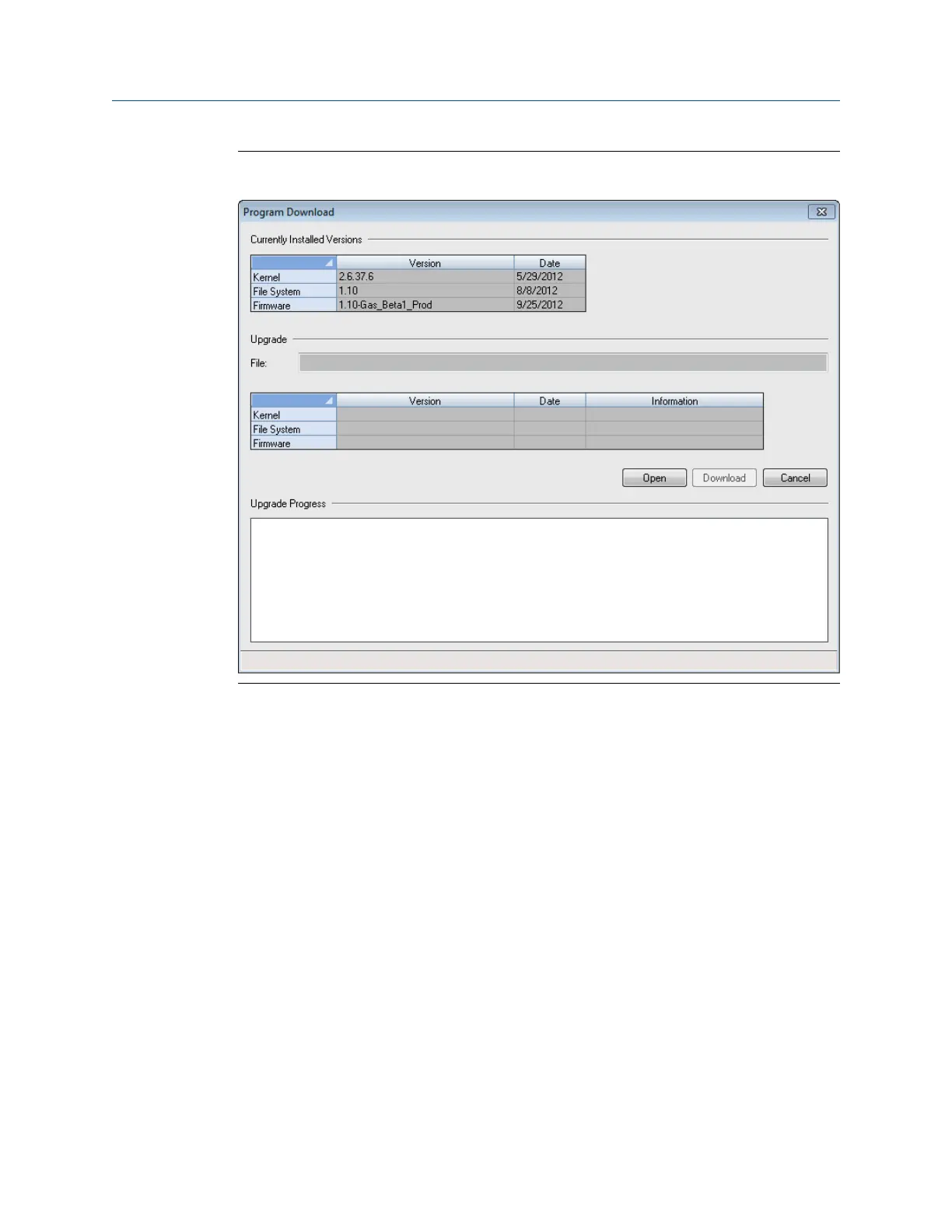

Program download dialogFigure 7-9:
Procedure
1. Click Open to display an Open Download File dialog and select the desired file and
click Open.
The filename displays in the File edit box under Upgrade. The Version and Date of
the components to download display in the table under Upgrade. All of the
components will be identified as if they are older, newer, or the same as what is
currently installed in the meter.
2. Daniel MeterLink
™
only downloads components that are different than what is
currently installed in the meter. At least one component must be different for
download before the Download button is enabled.
3. Click Download to initiate the download process. Daniel MeterLink
™
collects the
configuration from the meter and displays a message where it was saved. If the
upgrade requires the database to be reset, then it will be necessary to use the Edit/
Compare Configuration dialog to write this configuration back down to the meter
after the program download is complete (). After the configuration is saved, a
progress bar will appear showing the status of the file download. After the files have
been transferred successfully to the meter, the meter will start the upgrade process
and the status will be shown down below Upgrade Progress.
Commands
