2.4 Nameplate description

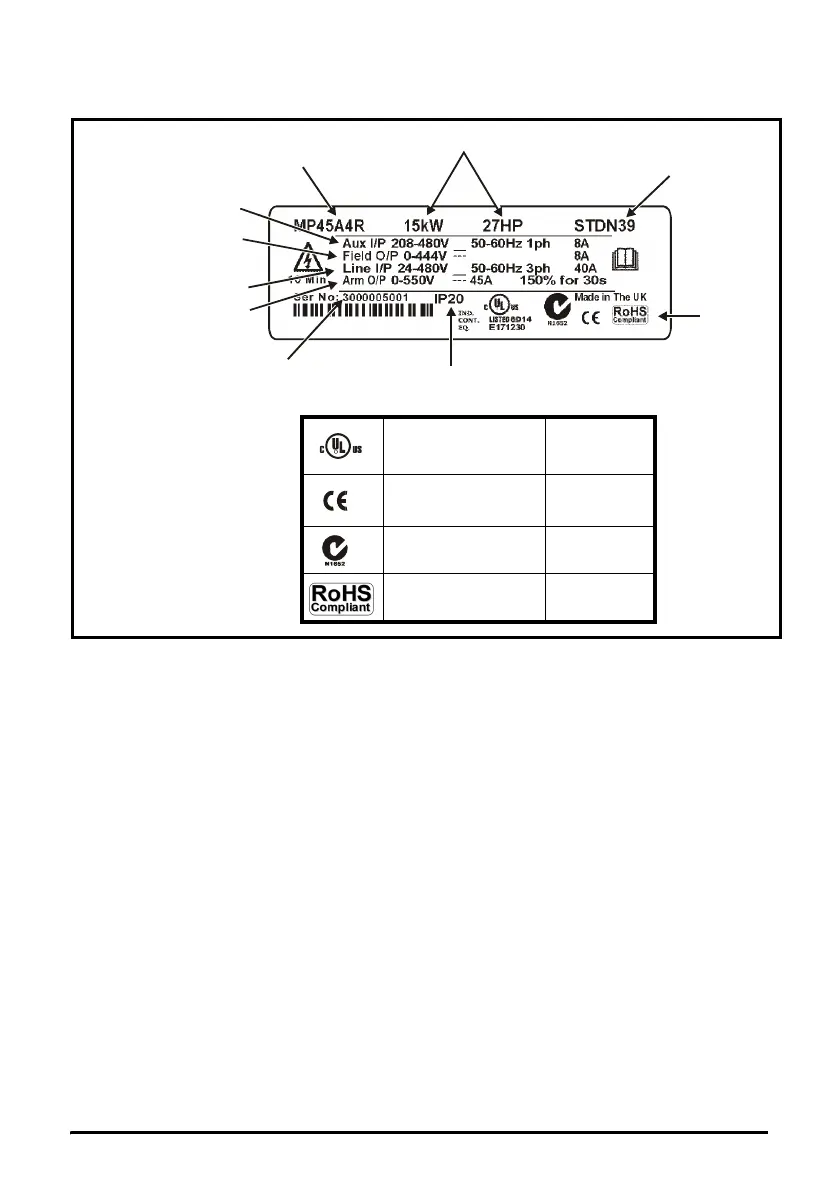

Figure 2-2 Typical drive rating label
2.4.1 Output current
The continuous output current ratings given on the rating label are for maximum 40°C
(104 °F) and 1000 m altitude. Derating is required for higher ambient temperatures
>40°C (104 °F) and higher altitude. For derating information, refer to the Mentor MP
User Guide on the CD supplied with the drive.
2.4.2 Input current
The input current is affected by the supply voltage, frequency and load inductance. The
input current given on the rating label is the typical input current.
Model
Auxiliary input voltage/
frequency/current
Field output
voltage current
Line input voltage/
frequency/current
Armature output voltage/
current/overload
Rating
Customer and
date code
Approvals
Serial number
IP Rating
Key to approvals
UL approval Worldwide
CE approval Europe
C Tick approval Australia
RoHS compliant Europe
R
