Mentor MP Short Form Guide 79
Issue Number: 5 www.controltechniques.com
Safety Information Product information
Mechanical
installation
Electrical
installation
Getting started
Running the
motor
SMARTCARD
operation
Advanced
parameters
Diagnostics UL listing

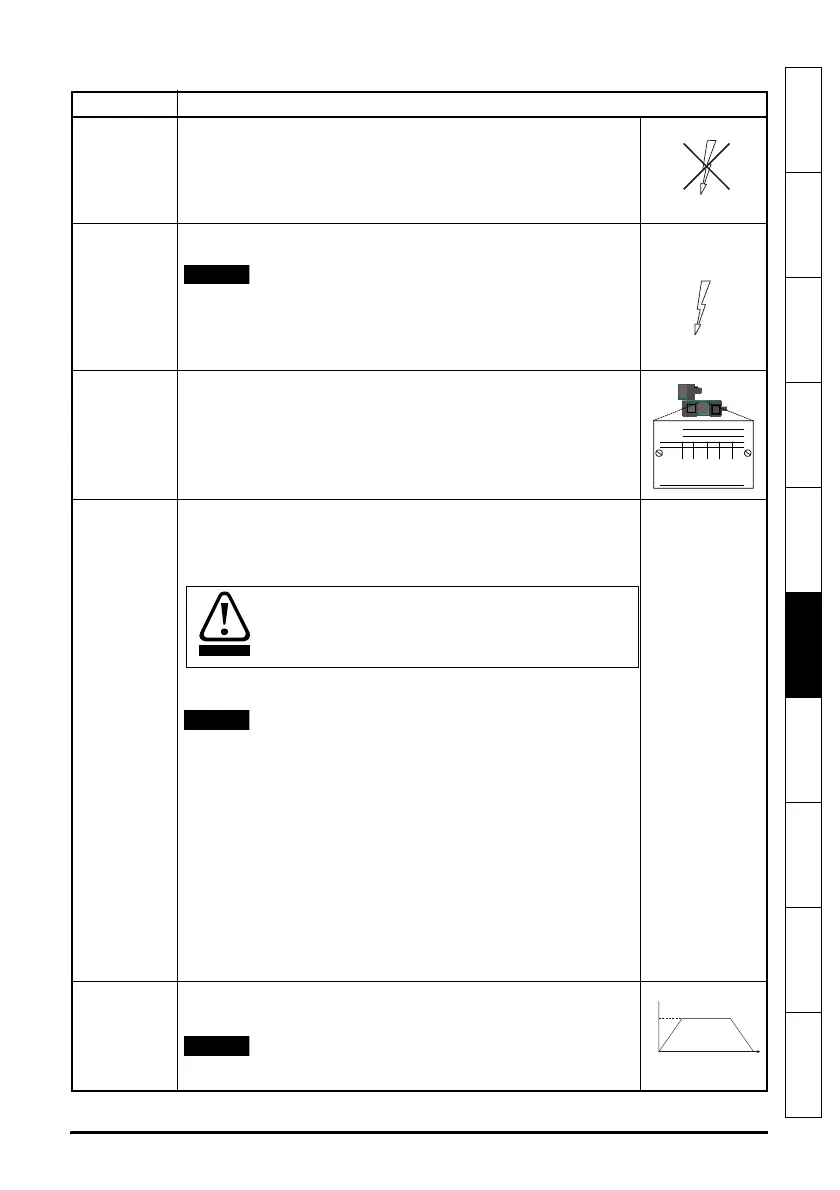

6.1 Quick start commissioning / start-up (from European defaults)
Action Detail
Before power-
up
Ensure:
Drive Enable signal is not given (terminal 31)
Run signal is not given
Motor connected
Tacho connected if one is being used
Encoder connected if one is being used
Power-up the
drive
Ensure:
Drive displays ‘inh’
The drive will trip ‘th’ (Motor thermistor trip) if no motor thermistor is
connected to analog input 3 (terminal 8). If the motor protection is not
connected to the drive, the ‘th’ trip can be disabled by setting Pr 7.15
(in01, 0.81) (analog input 3 mode) to VOLt.
For drive trips, see Chapter 9 Diagnostics on page 122.
Enter motor
nameplate
details
Enter:
Armature rated voltage in Pr 5.09 (SE06, 0.27) (V)
Motor rated current in Pr 5.07 (SE07, 0.28) (A)
Motor rated speed (base speed) in Pr 5.08 (SE08, 0.29) (rpm)
Field rated current in Pr 5.70 (SE10, 0.31) (A)
Field rated voltage in Pr 5.73 (SE11, 0.32) (V)
Set motor
feedback
parameters
Incremental encoder basic set-up
Enter:
Drive encoder type in Pr 3.38 (Fb07, 0.77) = Ab (0): Quadrature
encoder
Encoder power supply in
Pr 3.36 (Fb06, 0.76)
= 5V (0), 8V (1), 15V (2)
or 24V (3)
If output voltage from the encoder is >5V, then the termination resistors must be
disabled
Pr 3.39 (Fb08, 0.78)
to 0.
Drive encoder lines per revolution (ELPR) in Pr 3.34 (Fb05, 0.75)
(set according to encoder)
Drive encoder termination resistor setting in Pr 3.39 (Fb08, 0.78)
0 = A-A\, B-B\, Z-Z\ termination resistors disabled
1 = A-A\, B-B\, termination resistors enabled, Z-Z\ termination
resistors disabled
2 = A-A\, B-B\, Z-Z\ termination resistors enabled
Tachometer set-up
Enter:
Tachometer voltage rating Pr 3.51 (Fb02, 0.72) (V/1000 rpm)
Tachometer input mode Pr 3.53 (Fb03, 0.73)
Set maximum
speed
Enter:
Maximum speed in Pr 1.06 (SE02, 0.23) (rpm)
•Set Pr 5.64 = On If field weakening is required
For field weakening in Estimated Speed Mode please refer to the Mentor
MP User Guide - Chapter 8 Optimization - Field current.
NOTE
Mot X XXXXXXXXX
No XXXXXXXXXX kg
XXXXXXXXXXXXXXXXXXXX XXXXXX
X
X
XX
XX
XXX
XXX
XX
XX
XXX
XXX
X
X
XXXXXXXXXX XXXXXXXXXXXXXXXX XXXXXXXXX
XXXXXXXXXXXXXXXXXXXX XXXXXX
XXXXXXXXXXXXXXXXXXXX XXXXXX
XXXXXXXXXXXXXXXXXXXX XXXXXX
NOTE
NOTE
SE02
t
Setting the encoder voltage supply too high for the encoder
could result in damage to the feedback device
CAUT ION
