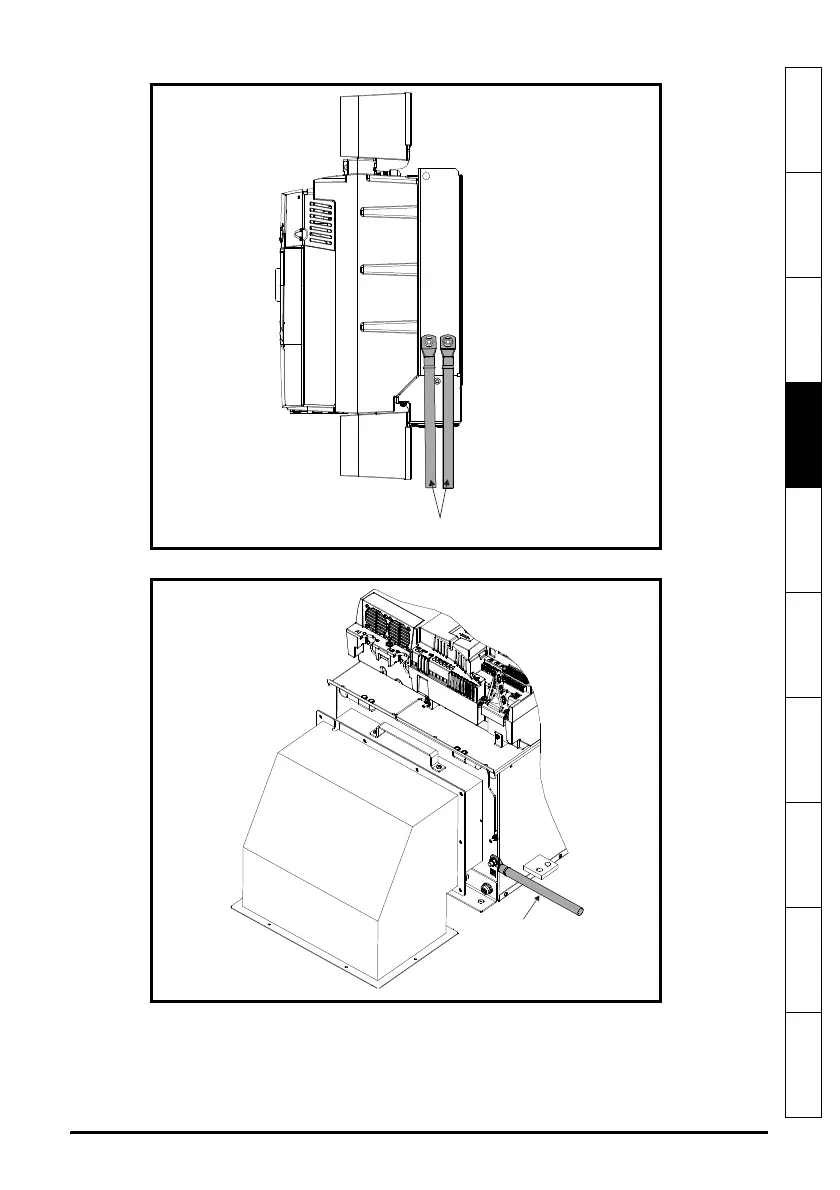

Figure 4-3 Location of ground connections on size 2A / 2B drives
Figure 4-4 Location of ground connection on size 2C / 2D drives
4.3 AC supply requirements
The standard drive is rated for a nominal supply voltage up to 480 Vrms.
An optional rating of 575 Vrms is available for size 1 drives.
An optional rating of 575 Vrms and 690 Vrms is available for size 2 drives.
Ground
connections
Ground connection
