Mentor MP Short Form Guide 27
Issue Number: 5 www.controltechniques.com
Safety Information Product information
Mechanical
installation
Electrical
installation
Getting started Running the motor
SMARTCARD
operation
Advanced
parameters
Diagnostics UL listing

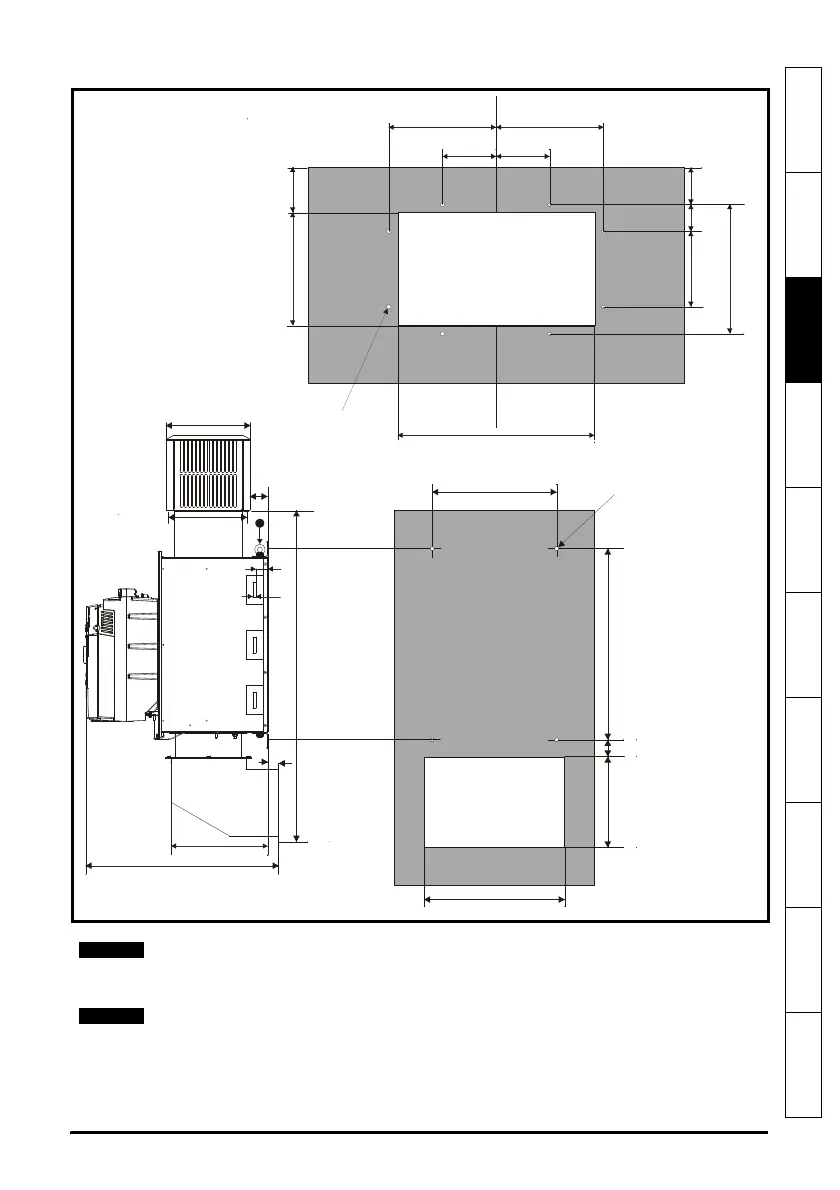

Figure 3-12 Size 2C back-plate and mounting detail
394mm (15.51in)
605mm
(23.82in)
53mm
(2.09in)
288mm
(11.34in)
450mm (17.72in)
1050mm (41.34in)
306mm (12.05in)
611mm (24.05in)
35mm
(1.38in)
38mm
(1.5in)
59mm
(2.32in)
270mm
(10.63in)
4 holes
to suit M10
260mm
(10.24in)
180mm (7.09in)
180mm (7.09in)
90mm
(3.54in)
90mm
(3.54in)
68.5mm
(2.70in)
50mm
(1.97in)
190mm
(7.48in)
240mm
(9.45in)
333mm (13.11in)
83.5
(3.29in)
210mm
(8.27in)
Rear
Front
8 holes
∅ 7mm
1
9mm
(0.35in)
1. M10 eye-bolts can be inserted in the location shown for lifting the drive. These are
not supplied with the drive.
NOTE
With the SMARTCARD installed to the drive, the depth measurement increases by 7.6
mm (0.30 in).
NOTE
