Encore ENPS-2012 User Manual

Configuration from Embedded Web Server

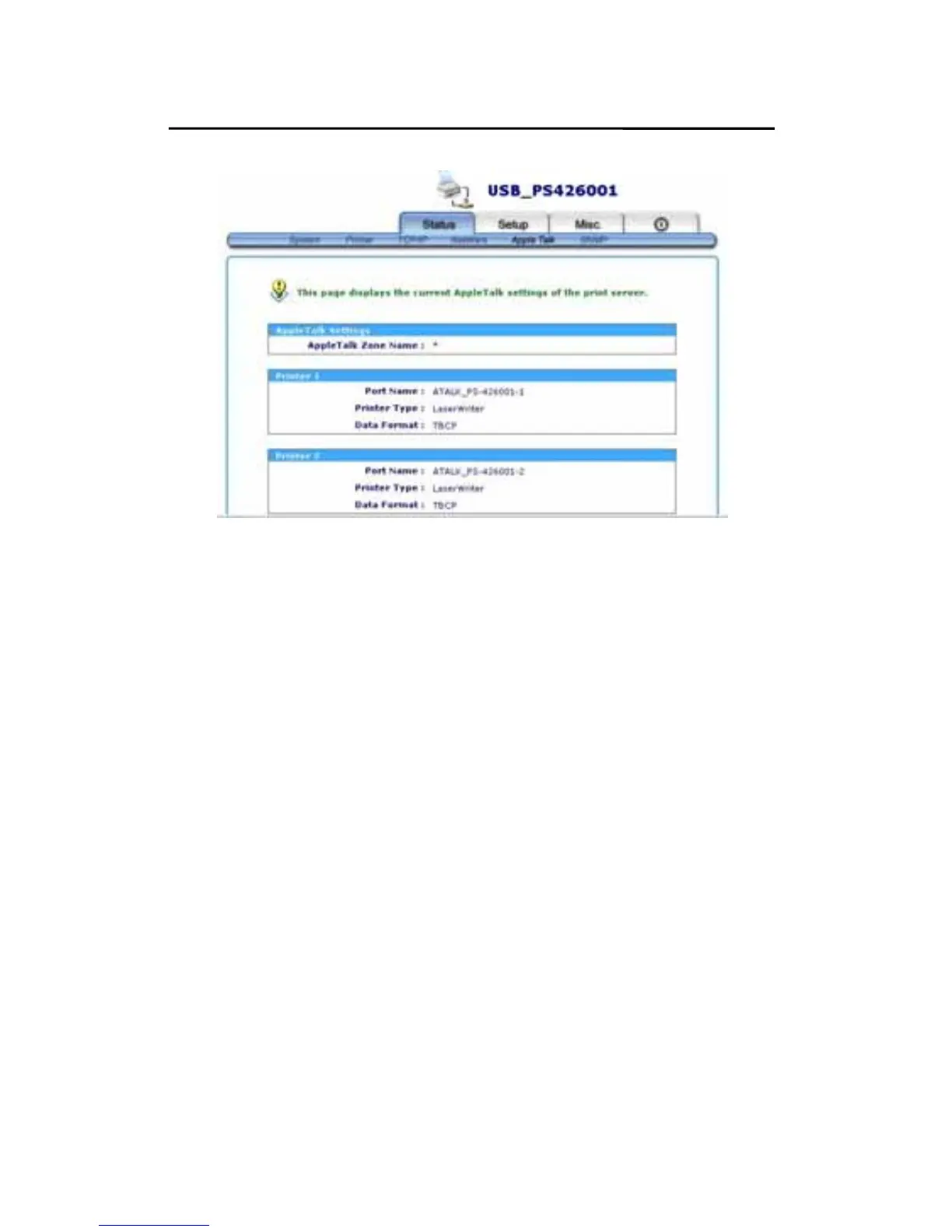

Zone Name: If no any zone exists, the print server itself
displays the zone name as an asterisk (*) in
the current AppleTalk Status of the print
server in the web browser.
Port Name: <ATALK_PS>-xxxxxx-1, where xxxxxx
represents the last six digits of the print
server’s Node ID.
Printer Type: This option allows you to view printer type
from the print server. If you are using a
PostScript printer you can select the
LaserWriter 8 icon from your Mac computer.
Data Format: This option allows you to view data format
from the print server. If you are using a
PostScript printer you can select ASCII,
TBCP or BCP format from web
configuration.
5 - 10

Encore ENPS-2012 Specifications

Ports & interfaces

USB ports	2 x USB 2.0
Parallel port	1 Bi-direction parallel port (IEEE 1284)
Network port	RJ-45 for 10Base-T or 100Base-TX
