Encore ENPS-2012 User Manual

Upgrading Print Server
Upgrading the print server from
Browser
1. Ensure mps17.bin is located in your current working
directory.
2. Enter the IP address of the print server as the URL.

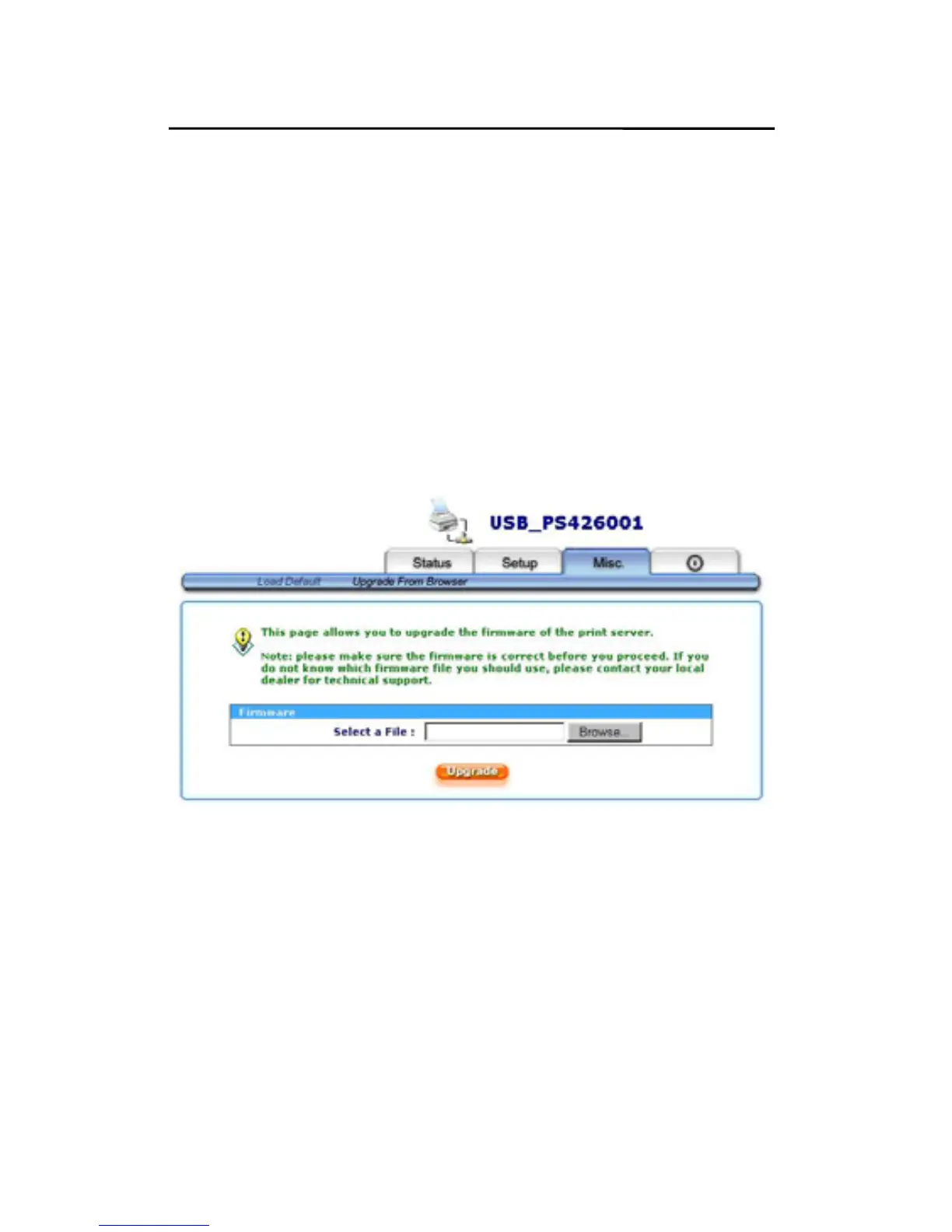

3. Click Misc, and then choose Upgrade From
Browser, it then as shown in the following picture.
4. Click Browser and select the firmware file.
5. Click Upgrade.
6. Done.
8 - 4

Encore ENPS-2012 Specifications

Ports & interfaces

USB ports	2 x USB 2.0
Parallel port	1 Bi-direction parallel port (IEEE 1284)
Network port	RJ-45 for 10Base-T or 100Base-TX
