Encore ENPS-2012 User Manual

Configuration from Embedded Web Server

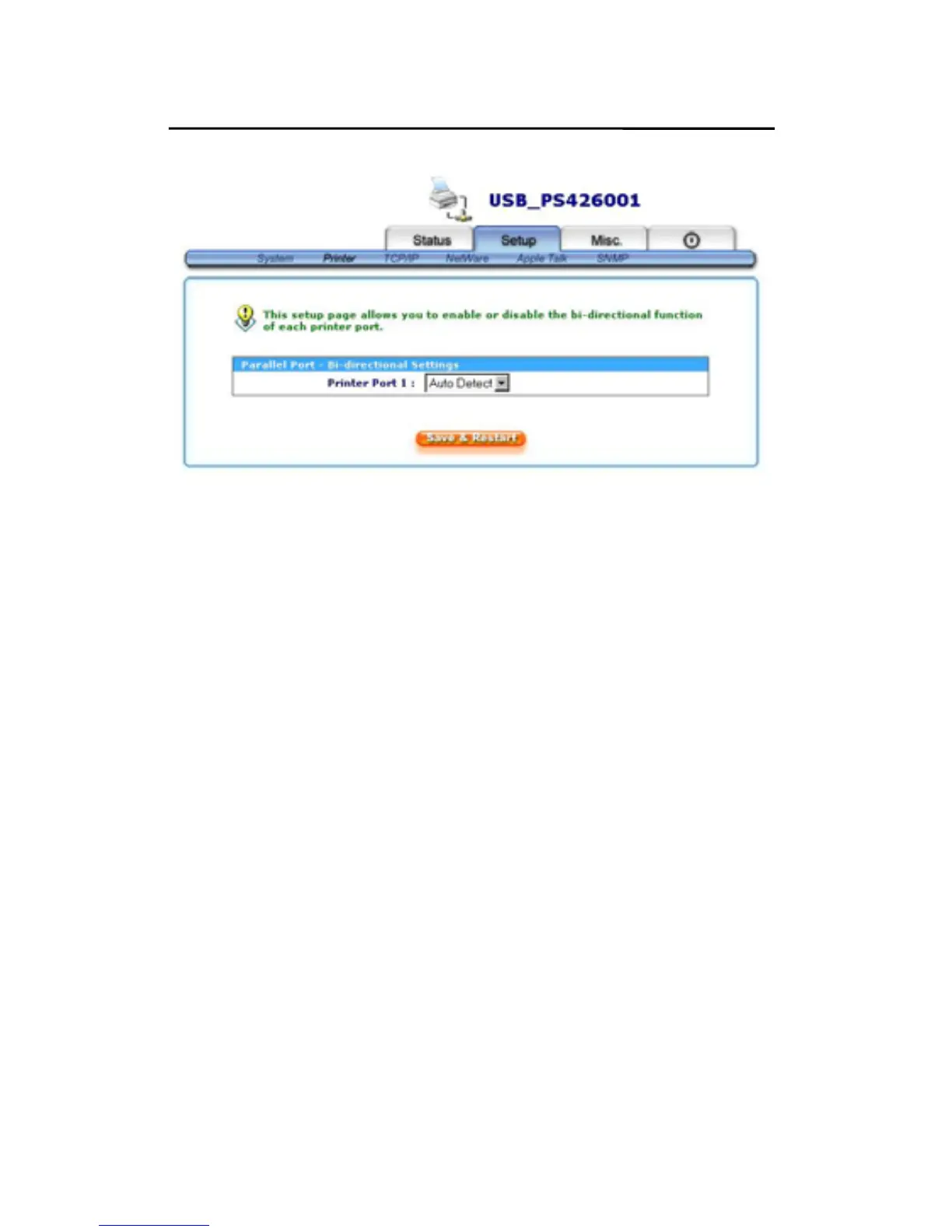

Bi-directional: This option allows you to select the
bi-directional of the print server. There are
two ways to select this option, includes
Disable or Auto Detect.
NetWare Setup
1. Log into your NetWare file server as a Supervisor
(Admin.) or equivalent.
2. Select NetWare and type in the Print server that created
during PCONSOLE Select the NetWare File Server to
which the print server device will be attached.
3. Click Setup, it then appears the sub-menu.
4. Click NetWare, it then as shown in the following picture.
5 - 14

Encore ENPS-2012 Specifications

Ports & interfaces

USB ports	2 x USB 2.0
Parallel port	1 Bi-direction parallel port (IEEE 1284)
Network port	RJ-45 for 10Base-T or 100Base-TX
