Commissioning with the FF configuration program Cerabar M, Deltabar M, Deltapilot M
152 Endress+Hauser
10 By means of the Empty calibration/
LOW_LEVEL_EASY parameter, enter a value, here 0
"l" for example.
A0031029

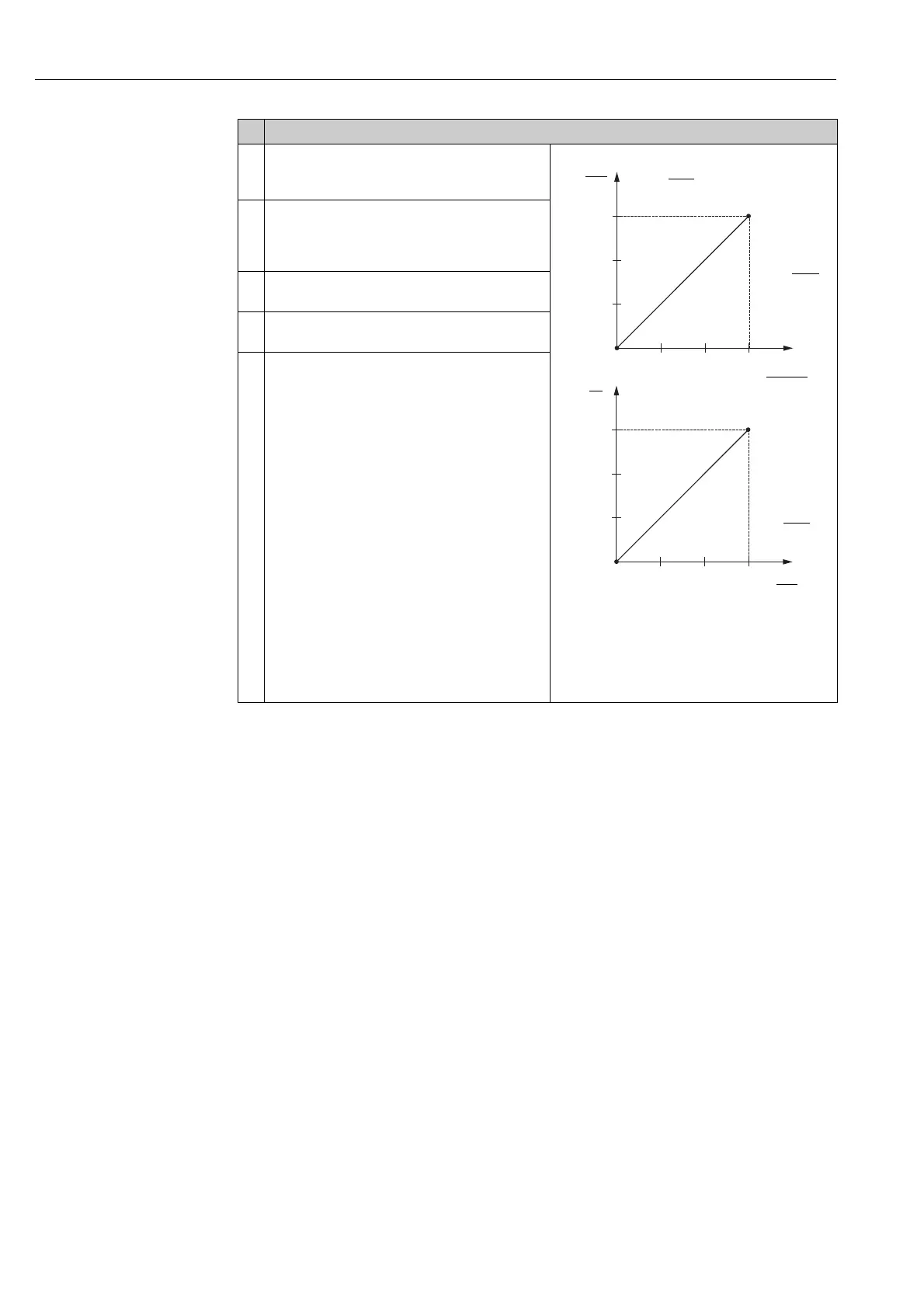

Fig. 45: Calibration with reference pressure - wet
calibration
A See Table, step 8.
B See Table, step 10.
C See Table, step 12.
11 Fill the container up to the upper level point.
The associated level value can be viewed by means of
the Meas. level/
MEASURED_ACTUAL_LEVEL_EASY parameter.
12 By means of the Full calib./HIGH_LEVEL_EASY
parameter, enter a value, here 1000 "l" for example.
13 Set the Pressure Transducer Block to the "Auto" block
mode.
14 If necessary, configure the
Channel/CHANNEL ( ä 211),
Linearization Type/L_TYPE ( ä 212),
Transducer Scale/XD_SCALE ( ä 210) and
Output Scale/OUT_SCALE ( ä 211) parameters
by means of the Analog Input Block.
Description
A
h
p
g
=
×r
h
p
g
=
×r
r=1
g
cm
3
B
C
V
[l]
h
[m]
h
[m]
p
[mbar]
1000
4.5
0
0.5
0.5
50
4.5
450
