Installation Deltabar PMD75B HART
16 Endress+Hauser

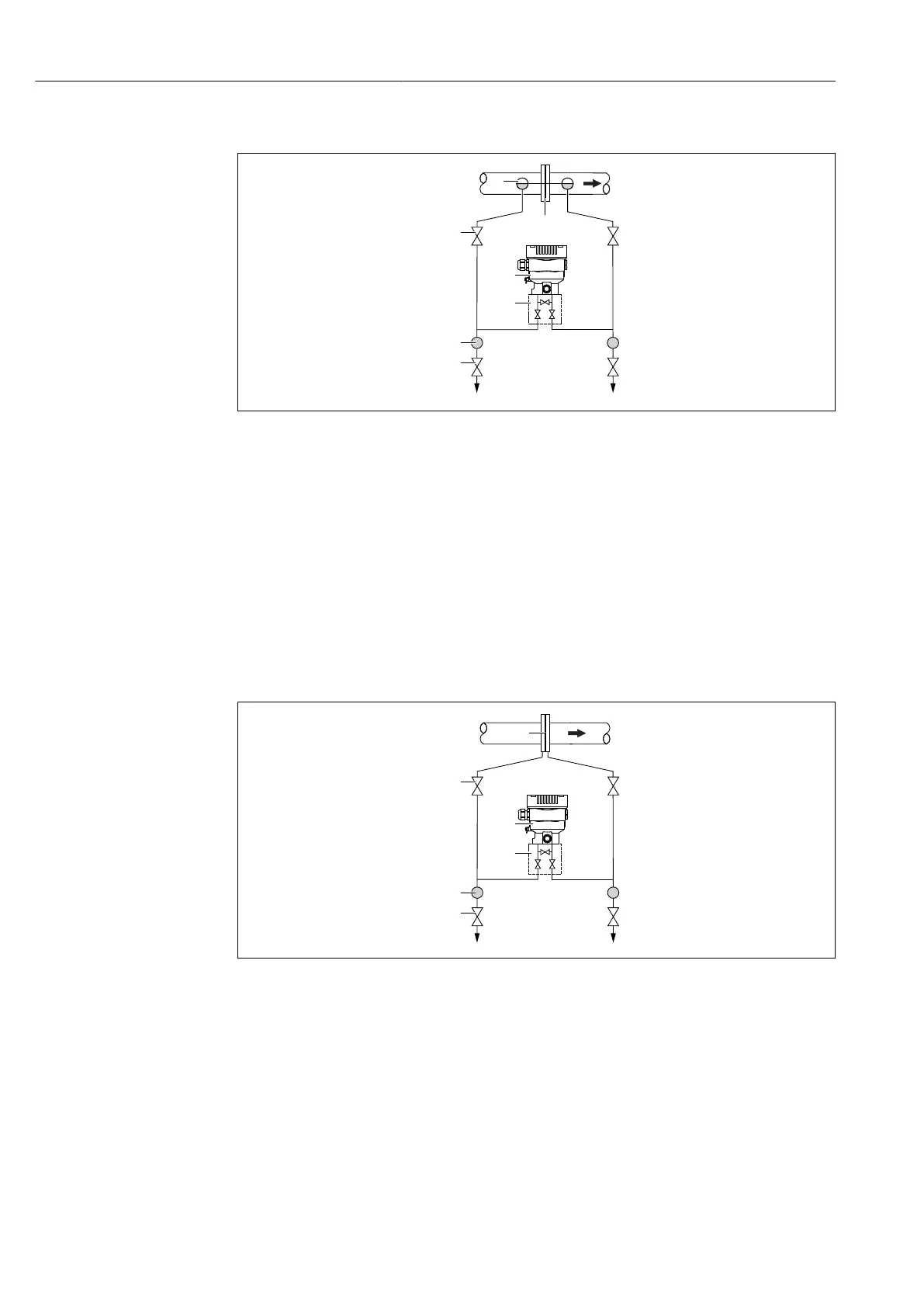

Flow measurement in vapors
+
–
1
5
3
2
7
6
4
A0038212
1 Orifice plate or pitot tube
2 Condensate traps
3 Shut-off valves
4 Measuring device
5 Three-valve manifold
6 Separator
7 Drain valves
• Mount the measuring device below the measuring point
• Mount the condensate traps at the same level as the tapping points and at the same
distance to the measuring device
• Prior to commissioning, fill the piping to the height of the condensate traps
Flow measurement in liquids
+
–
1
3
4
2
6
5
A0038213
1 Orifice plate or pitot tube
2 Shut-off valves
3 Measuring device
4 Three-valve manifold
5 Separator
6 Drain valves
• Mount the measuring device below the measuring point so that the piping is always
filled with liquid and gas bubbles can run back into the process piping
• When measuring in media with solid parts, such as dirty liquids, installing separators
and drain valves is useful for capturing and removing sediment
