Endress+Hauser Deltabar PMD75B HART User Manual

Deltabar PMD75B HART Installation
Endress+Hauser 15
3 3
A / D
K
1 1
2 2
3
N
1
3
3
N
2
1
3
1
1
G / J
3
A0038688

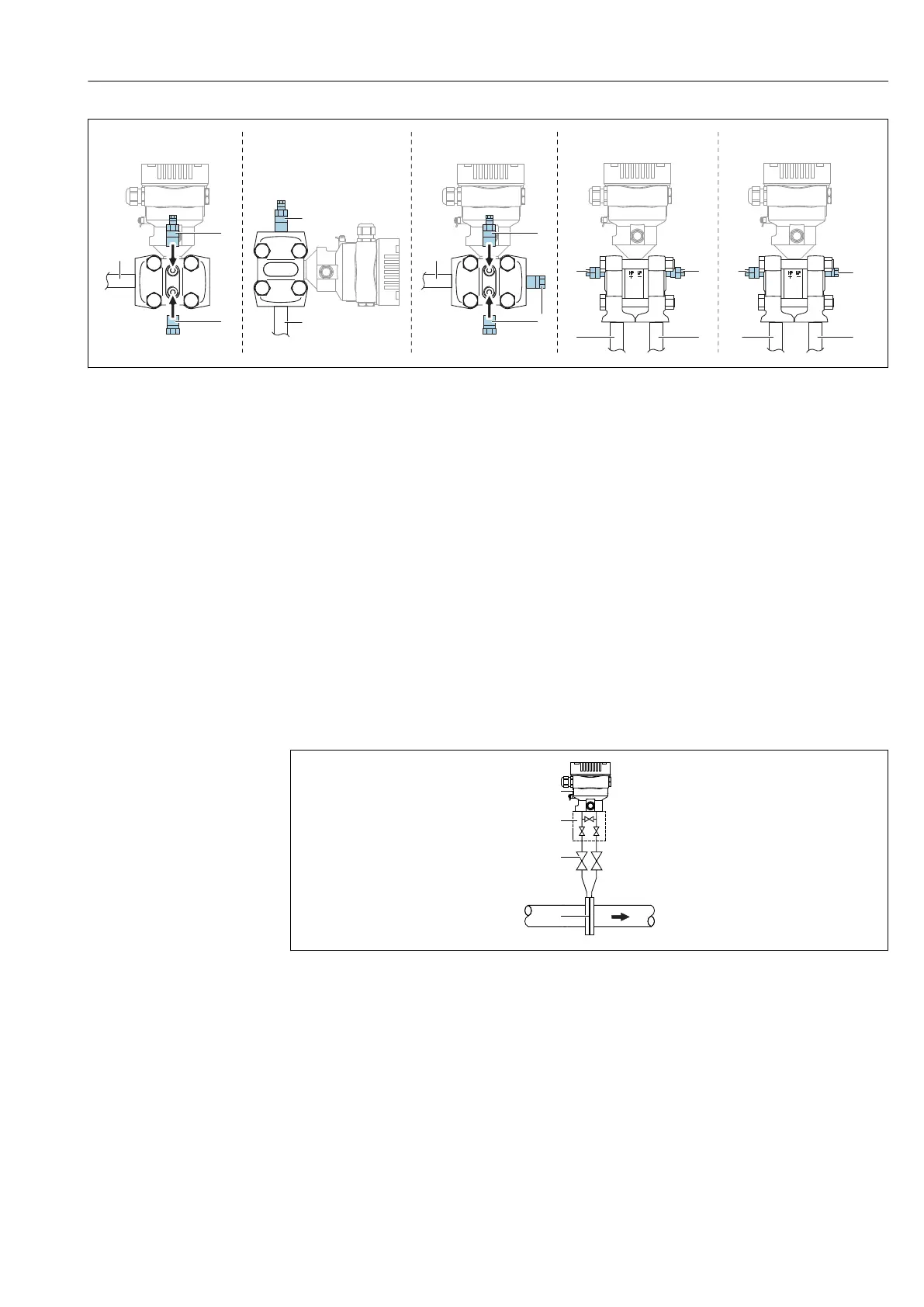

 1 A/D, G/J, K, N: order options
A/D Horizontal impulse line, left or right side HP, with side vent. Thread on one side and side thread for horizontal
impulse line.
G/J Vertical impulse line, left or right side HP, with vent. Thread on each side for vertical impulse line.
K Universal side flange, with vent. Thread on each side and side thread for universal mounting.
N Gauge pressure/absolute pressure: Bottom process connection, left side HP, vent on one side. Thread on each
side and side thread for mounting on existing manifolds.
N Differential pressure: Bottom process connection, left side HP, vent on both sides. Thread on each side and
side thread for mounting on existing manifolds.
1 Vent valve
2 Sealing plug
3 Impulse line
5.2 Mounting the measuring device
5.2.1 Flow measurement
Flow measurement in gases
+
–
4
3
2
1
A0038211
1 Orifice plate or pitot tube
2 Shut-off valves
3 Three-valve manifold
4 Measuring device
Mount the measuring device above the measuring point so that condensate can flow into
the process piping.
