Deltabar PMD75B HART About this document
Endress+Hauser 7
1.3 List of abbreviations
URL OPLMWP
LRL
0
p
LRV
URV
1
2
3
4
A0029505

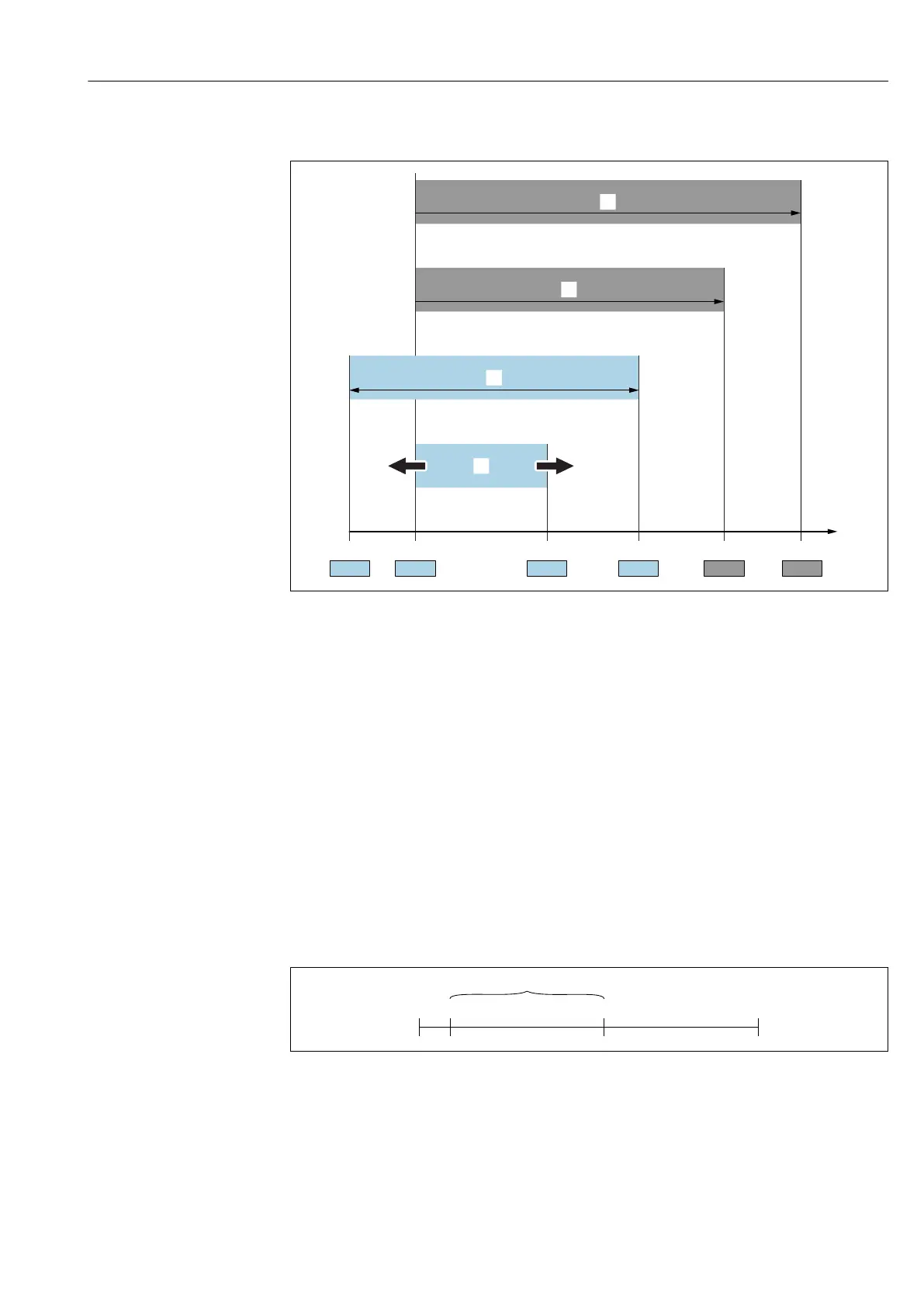

1 OPL: The OPL (over pressure limit = sensor overload limit) for the measuring device depends on the lowest-
rated element, with regard to pressure, of the selected components, i.e. the process connection has to be taken
into consideration in addition to the measuring cell. Pay attention to the pressure/temperature dependency.
The OPL may only be applied for a short period of time.
2 MWP: The MWP (maximum working pressure) for the sensors depends on the lowest-rated element, with
regard to pressure, of the selected components, i.e. the process connection has to be taken into consideration
in addition to the measuring cell. Pay attention to the pressure/temperature dependency. The MWP may be
applied at the device for an unlimited period. The MWP can be found on the nameplate.
3 The maximum sensor measuring range corresponds to the span between the LRL and URL. This sensor
measuring range is equivalent to the maximum calibratable/adjustable span.
4 The calibrated/adjusted span corresponds to the span between the LRV and URV. Factory setting: 0 to URL.
Other calibrated spans can be ordered as customized spans.
p Pressure
LRL Lower range limit
URL Upper range limit
LRV Lower range value
URV Upper range value
TD Turn down. Example - see the following section.
1.4 Turn down calculation
A0029545
1 Calibrated/adjusted span
2 Zero point-based span
3 Upper range limit (URL)
