Operation options Deltabar PMD75B HART
30 Endress+Hauser
7 Operation options
7.1 Overview of operation options
• Operation via operating keys and DIP switches on the electronic insert
• Operation via optical operating keys on the device display (optional)
• Operation via Bluetooth® wireless technology (with optional Bluetooth device display)
• Operation via operating tool (Endress+Hauser FieldCare/DeviceCare or AMS, PDM, etc.)
• Operation via handheld, Fieldcare, AMS and PDM
7.2 Operating keys and DIP switches on the electronic
insert
7.2.1 HART

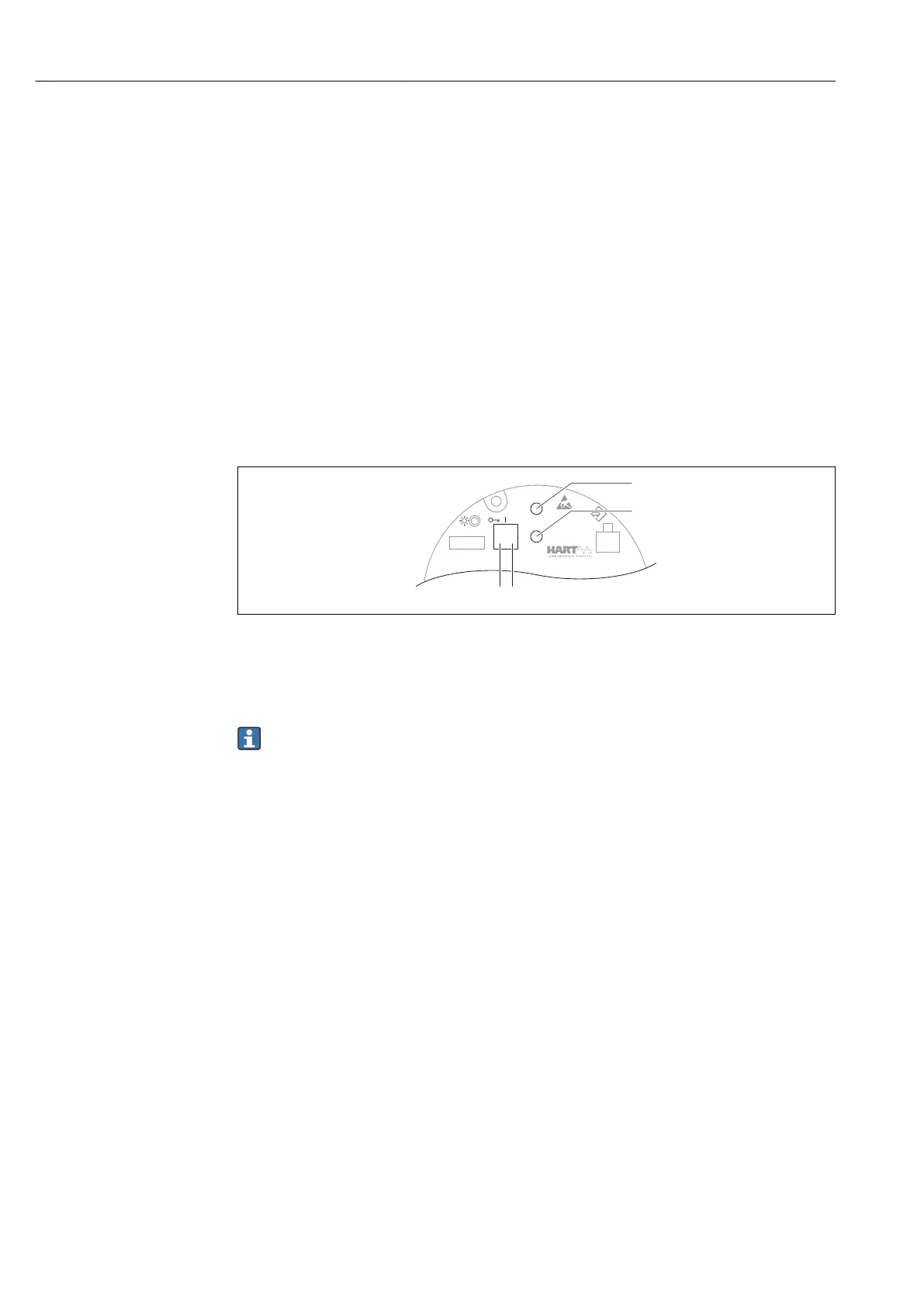

1
2
Alarm
on
off
MaxSW
Zero/I
Span/II
Display
34
A0039285
1 Operating key for lower range value (Zero)
2 Operating key for upper range value (Span)
3 DIP switch for alarm current
4 DIP switch for locking and unlocking the measuring device
The setting of the DIP switches has priority over settings made via other operating
methods (e.g. FieldCare/DeviceCare).
7.3 Structure and function of the operating menu
The differences between the structure of the operating menus of the local display and the
Endress+Hauser FieldCare or DeviceCare operating tools can be summarized as follows:
The local display is suitable for configuring simple applications.
More elaborate applications can be configured with the Endress+Hauser FieldCare or
DeviceCare tools and Bluetooth and the SmartBlue App. "Wizards" help the user to
commission the various applications. The user is guided through the individual
configuration steps.
7.3.1 User roles and related access authorization
The two user roles "Operator" option and "Maintenance" option have different write
access to the parameters if a device-specific access code has been defined. This access code
protects the device configuration via the local display from unauthorized access.
