Installation Deltabar PMD75B HART
18 Endress+Hauser

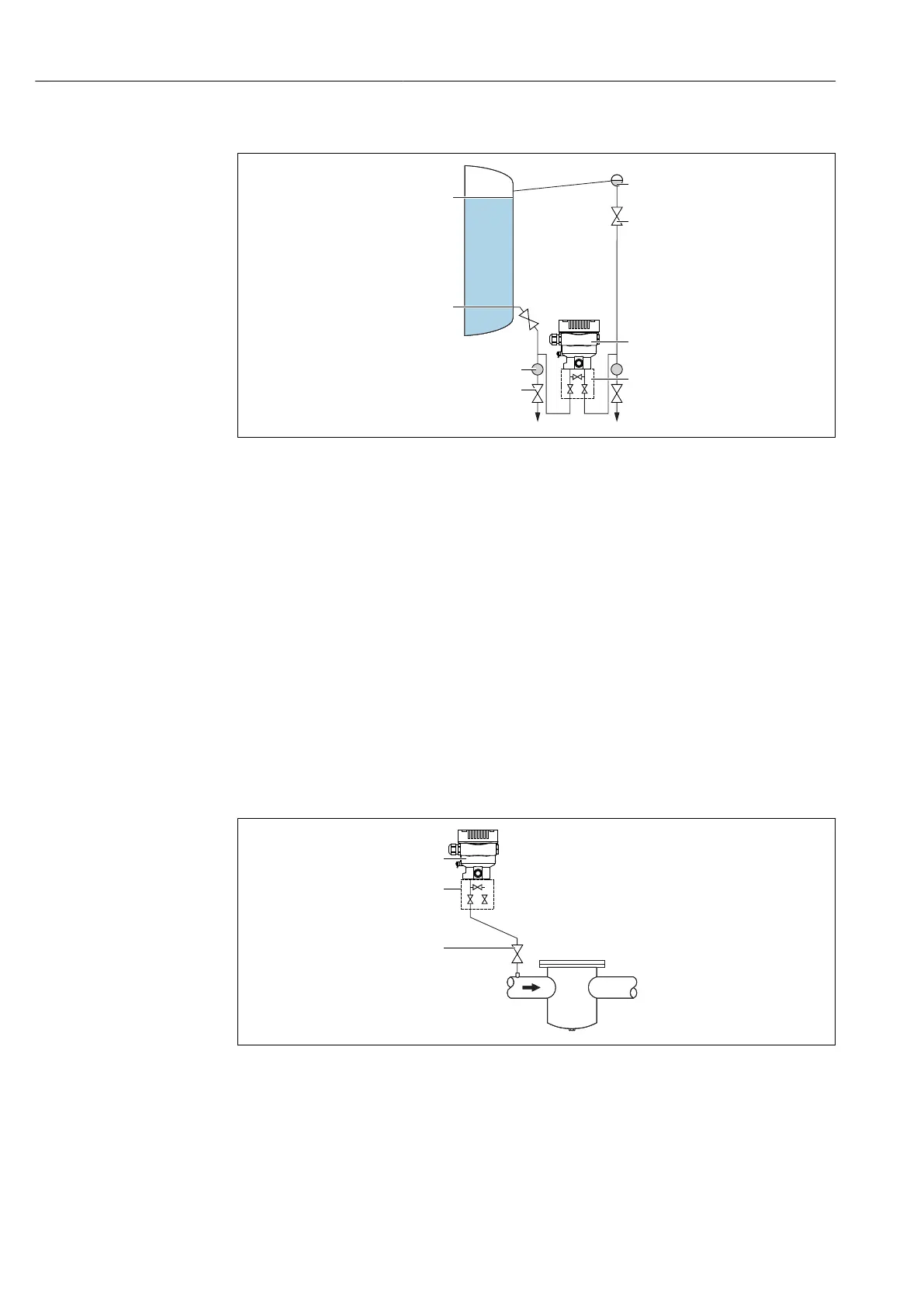

Level measurement in a closed vessel with superimposed vapor
–
+
min.
5
6
3
4
–
max.
2
1
A0038216
1 Condensate trap
2 Shut-off valves
3 Measuring device
4 Three-valve manifold
5 Drain valves
6 Separator
• Mount the measuring device below the lower measuring connection so that the piping is
always filled with liquid
• Always connect the low-pressure side above the maximum level
• The condensate trap ensures constant pressure on the low-pressure side
• When measuring in media with solid parts, such as dirty liquids, installing separators
and drain valves is useful for capturing and removing sediment
5.2.3 Pressure measurement
Pressure measurement with 160 bar (2 400 psi) and 250 bar (3 750 psi) measuring
cell
+
1
2
3
4
A0038218
1 Measuring device with blind flange on LP side
2 Two-valve manifold
3 Shut-off valves
4 Pressurized container
