Deltabar PMD75B HART Electrical connection
Endress+Hauser 27

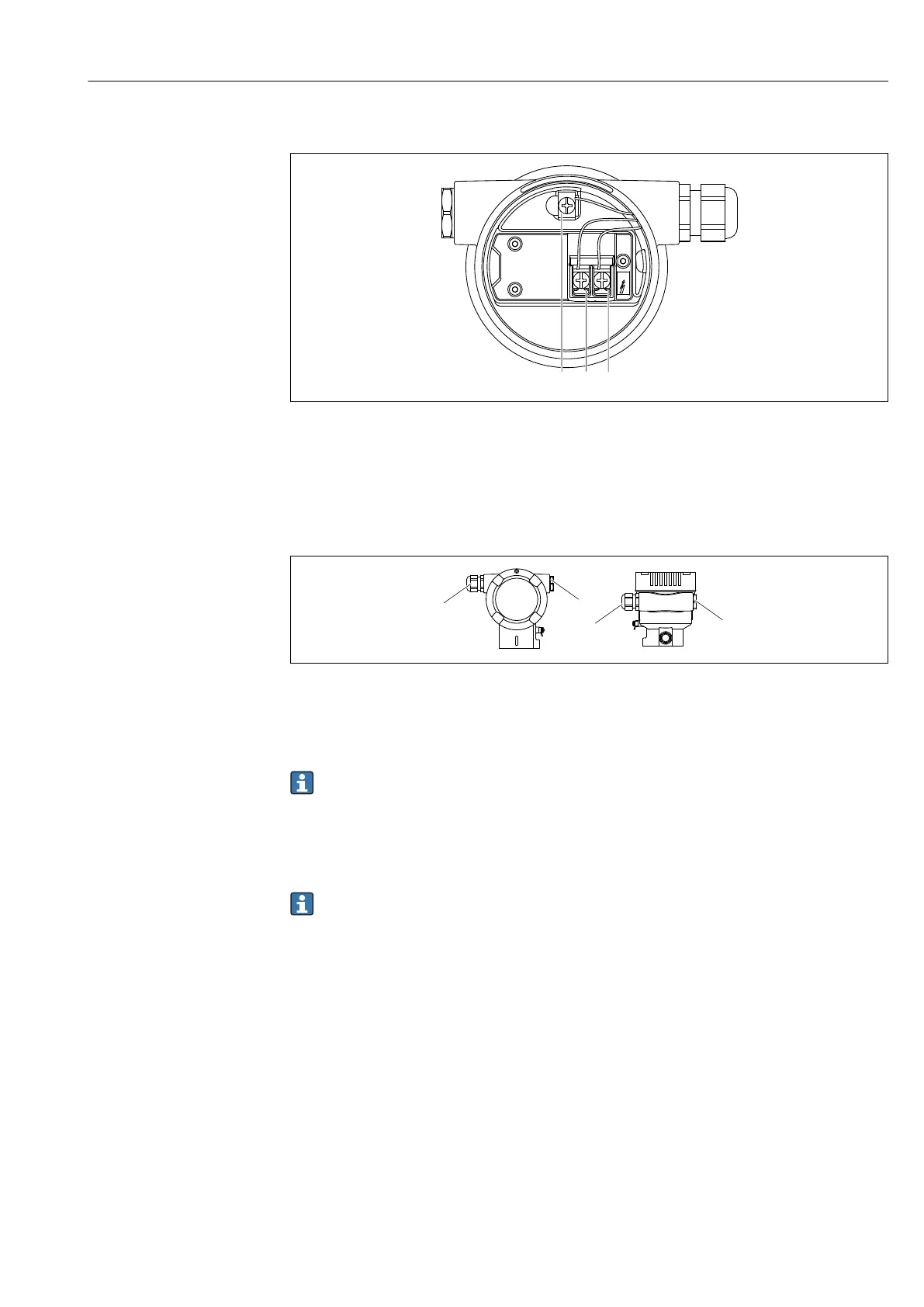

Dual compartment housing
+
-
123
A0042803
 4 Connection terminals and ground terminal in the connection compartment
1 Positive terminal
2 Negative terminal
3 Internal grounding terminal
6.2.9 Cable entries
1
2
1
2
A0038156
1 Cable entry
2 Dummy plug
The type of cable entry depends on the device version ordered.
Always route connecting cables downwards so that moisture cannot penetrate the
connection compartment.
If necessary, create a drip loop or use a weather protection cover.
6.2.10 Available device plugs
In the case of devices with a plug, the housing does not have to be opened to establish
the connection.
Use the enclosed seals to prevent the penetration of moisture into the device.
Measuring devices with cable tail version
In preparation.
