Prerequisites:
• Measured variable with square root extraction in relation to pressure
• In the Output current transfer function parameter, set the Square option.
Menu path: Application → Sensor → Sensor configuration → Output current transfer
function
• Enter the switch-on point for low flow cut off in the Low cutoff parameter (default 5 %)
Menu path: Application → Sensor → Sensor configuration → Low cutoff

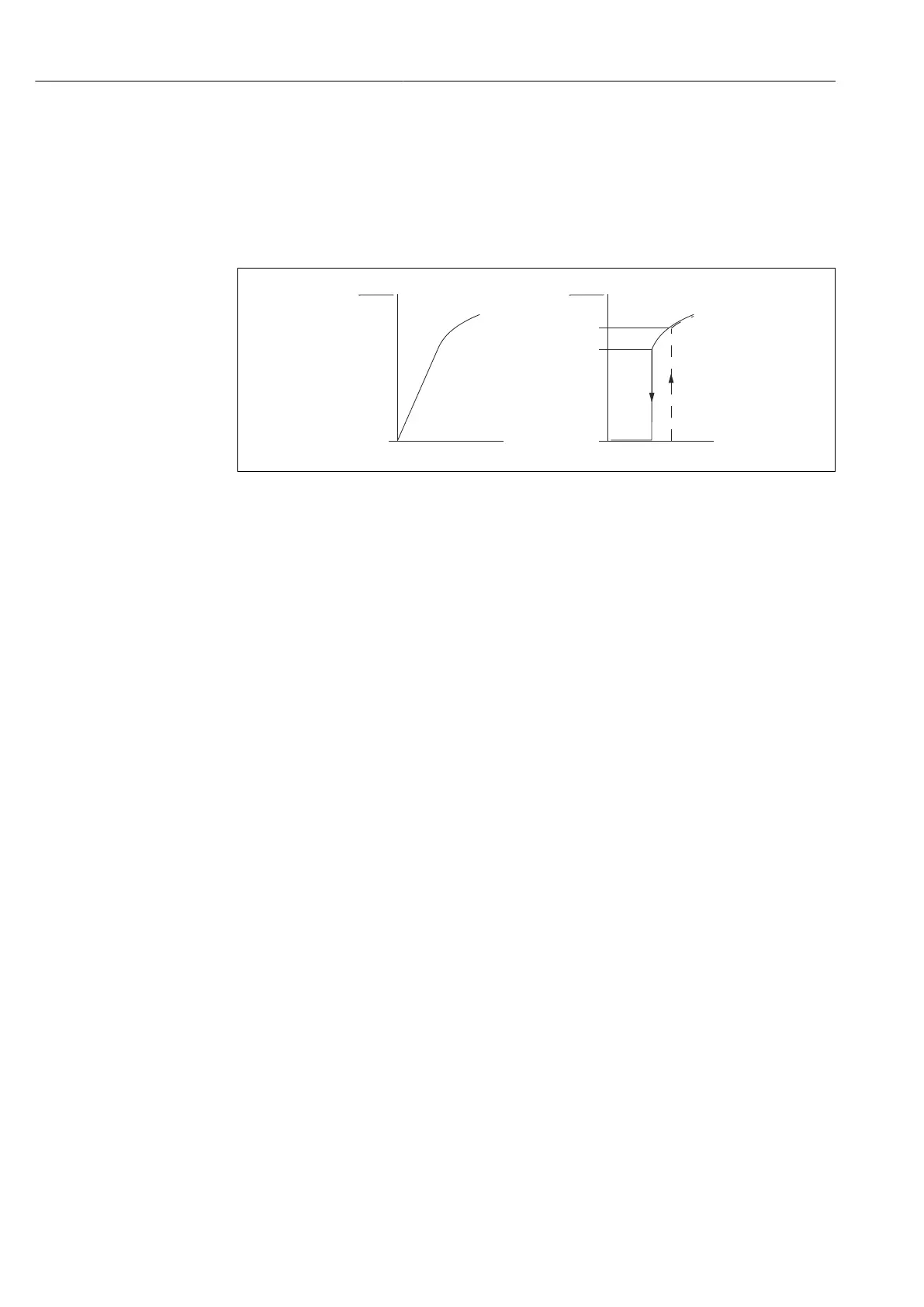

6%
5%
0% 0%
Q
Qmax
Q
Qmax
∆ ∆p p
A0025191
• The hysteresis between the switch-on point and the switch-off point is always 1 % of the
maximum flow value
• If a switch-on point of 0 % is entered, low flow cut off is deactivated
In the Assign PV parameter, the Pressure option must be set (factory setting)
Menu path: Application → Scaled Variable → Assign PV
The set unit is also output on the fieldbus.
9.7.6 Cleaning the pressure piping
Differential pressure measurement
Before the device is adjusted, the pressure piping must be cleaned, where necessary, and
filled with fluid.
