CLS 50 200.0 µS/cm - 1000 mS/cm
CLS 52 2000 µS/cm - 1000 mS/cm
Conductivity K = 0.01 200.0 mS/cm - 200.0 µS/cm
K = 0.1 2.000 µS/cm - 2000 µS/cm
K = 1 20.00 µS/cm - 20.00 mS/cm
K = 10 200.0 µS - 200.0 mS/cm
K = 0.01 200.0 KWcm - 20.00 MWcm
MOhm K = 0.1 20.00 KWcm - 2000KWcm
K = 1 2.000 KWcm - 200.0 KWcm
The 0/4 mA value is automatically set to 1% of the 20 mA value.
D) User-Selectable Current Output Characteristic
Any output characteristic can be defined by means of a current output table which may
contain up to 21 elements:
Conductivity (µS/cm)
Upper measuring range value
Current output
(%)

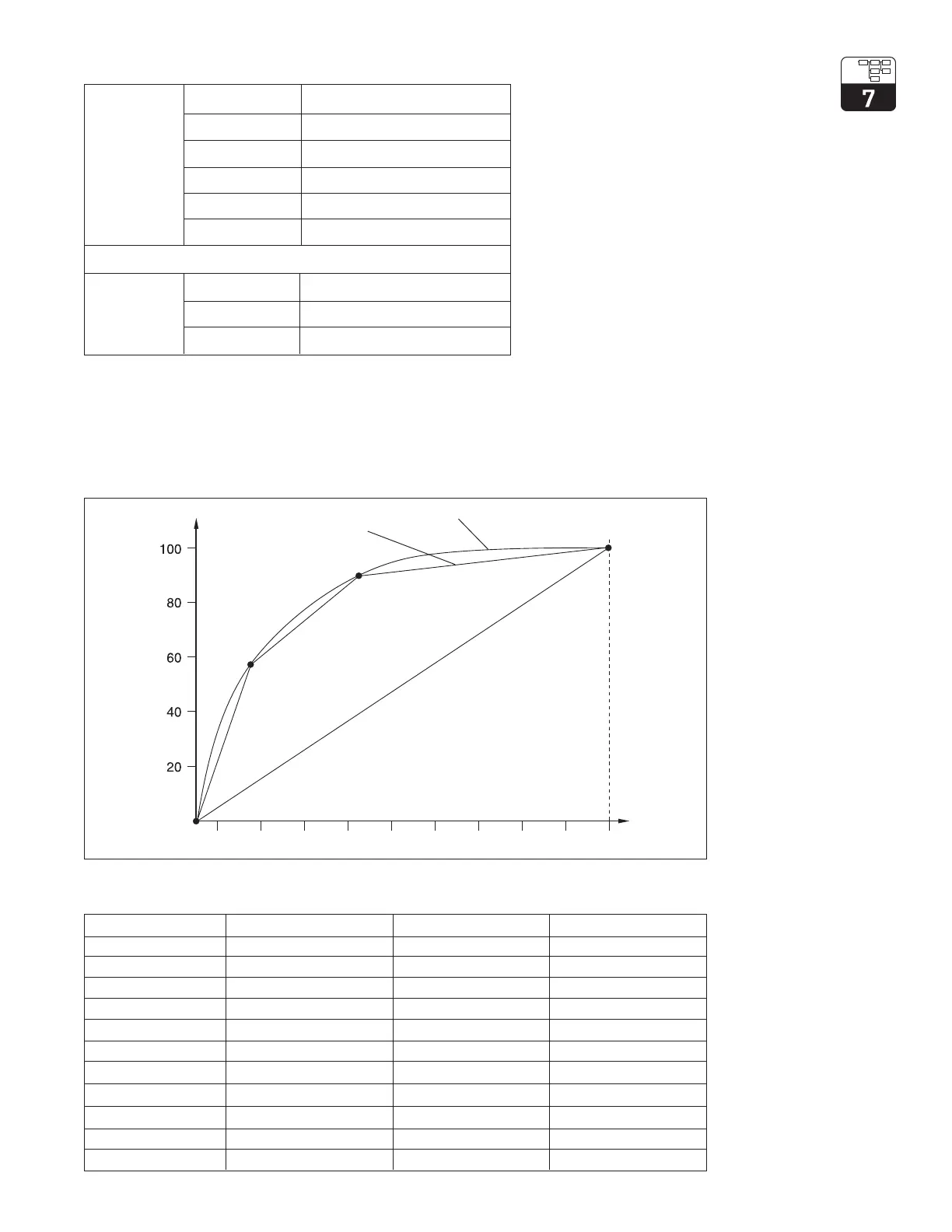

Figure 7.5
Example of a
characteristic with 2 and
4 value pairs
1: Actual curve
2: Interpolated curve
1
2
Example of a current output table for log 3
Current output (%) Conductivity (µS/cm) Current output (%) Conductivity (µS/cm)
00.1554.47
5 0.14 60 6.31
10 0.2 65 8.91
15 0.28 70 12.6
20 0.4 75 17.8
25 0.56 80 25.1
30 0.79 85 35.5
35 1.12 90 50.1
40 1.58 95 70.8
45 2.24 100 100
50 3.16
