Installation Proline Prosonic Flow 91
16 Endress+Hauser
2. With the first measuring wire:
– Fit the fixer over the mounting bolt of the strapping band that is already securely mounted.
– Run the measuring wire clockwise around the pipe.
– Fit the cable lug over the mounting bolt of the strapping band that can still be moved.
3. With the second measuring wire:
– Fit the cable lug over the mounting bolt of the strapping band that is already securely
mounted.
– Run the measuring wire counterclockwise around the pipe.
– Fit the fixer over the mounting bolt of the strapping band that can still be moved.
4. Take the still movable strapping band, incl. the mounting bolt, and move it until both
measuring wires are evenly tensioned and tighten the strapping band so that it cannot slip.
A0001113

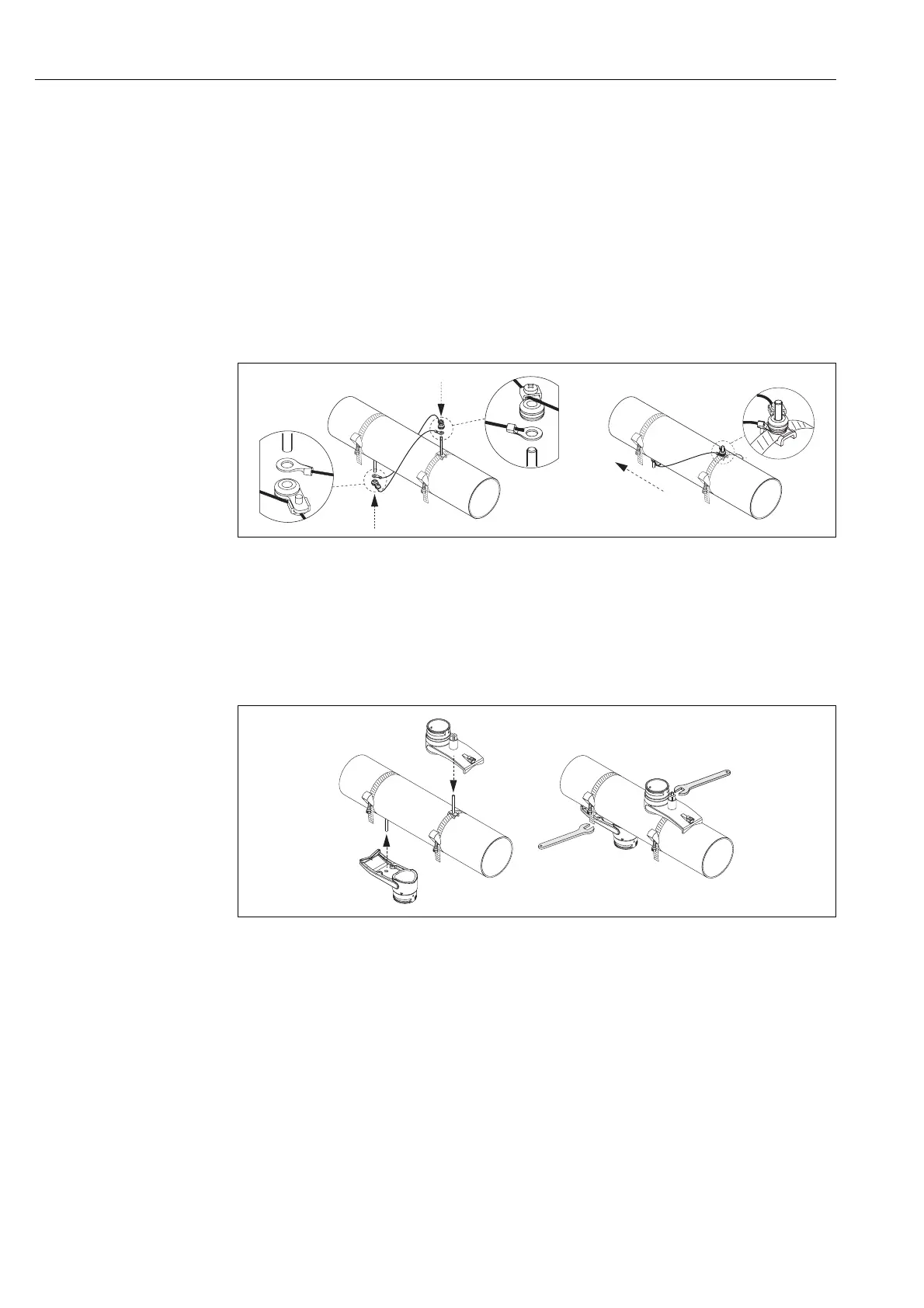

Fig. 12: Positioning the strapping bands (steps 2 to 4)
5. Loosen the screws of the fixers on the measuring wires and remove the measuring wires from
the mounting bolt.
6. Fit the sensor holders over the individual mounting bolts and tighten securely with the
retaining nut.
A0001114
Fig. 13: Mounting the sensor holders
