Endress+Hauser Proline Prosonic Flow 91 User Manual

Installation Proline Prosonic Flow 91
20 Endress+Hauser
3.3.4 Affixing the local display to the blind version
A local display can be temporarily affixed to devices which do not have a local display.
1. Switch off power supply.
2. Remove the cover of the electronics compartment.
3. Affix local display.
4. Switch on power supply.
3.3.5 Rotating the local display
1. Unscrew cover of the electronics compartment from the transmitter housing.
2. Remove the display module from the transmitter retainer rails.
3. Turn the display to the desired position (max. 4 × 45° in each direction).
4. Place the display back on the retaining rails.
5. Screw the cover of the electronics compartment firmly back onto the transmitter housing.
A0003237

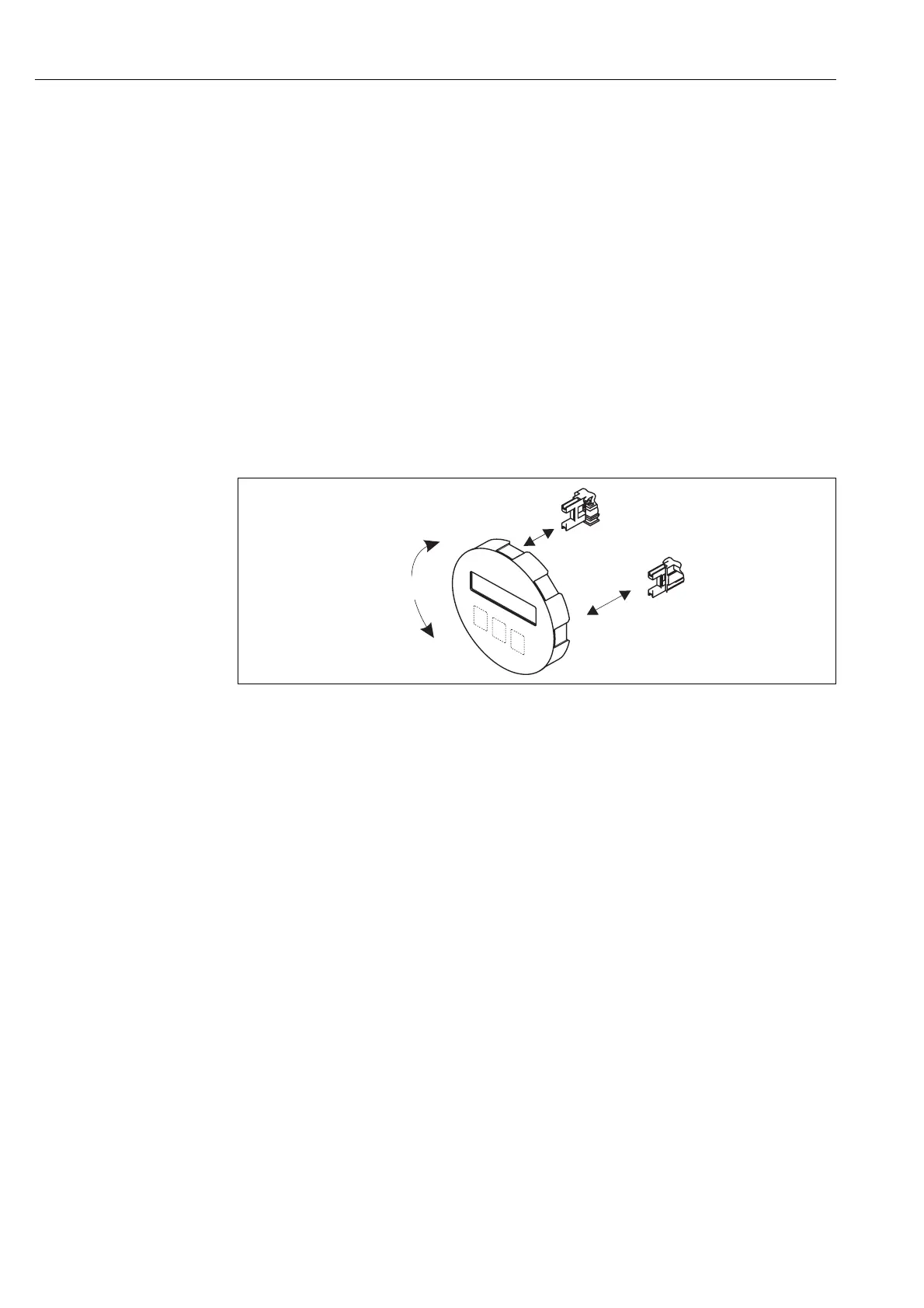

Fig. 20: Rotating the local display
4 x 45°
