Proline Prosonic Flow 91 Installation
Endress+Hauser 21
3.3.6 Mounting the transmitter
The transmitter can be mounted in the following ways:
• Wall mounting
• Pipe mounting (with separate mounting kit, accessories → ä 46)
"
Caution!
• The ambient temperature range (–25 to +60 °C; –13 to +140 °F) may not be exceeded at the
mounting location. Avoid direct sunlight.
• If a warm pipe is used for the installation, ensure that the housing temperature does not exceed
the max. permitted value of +60 °C (+140 °F).

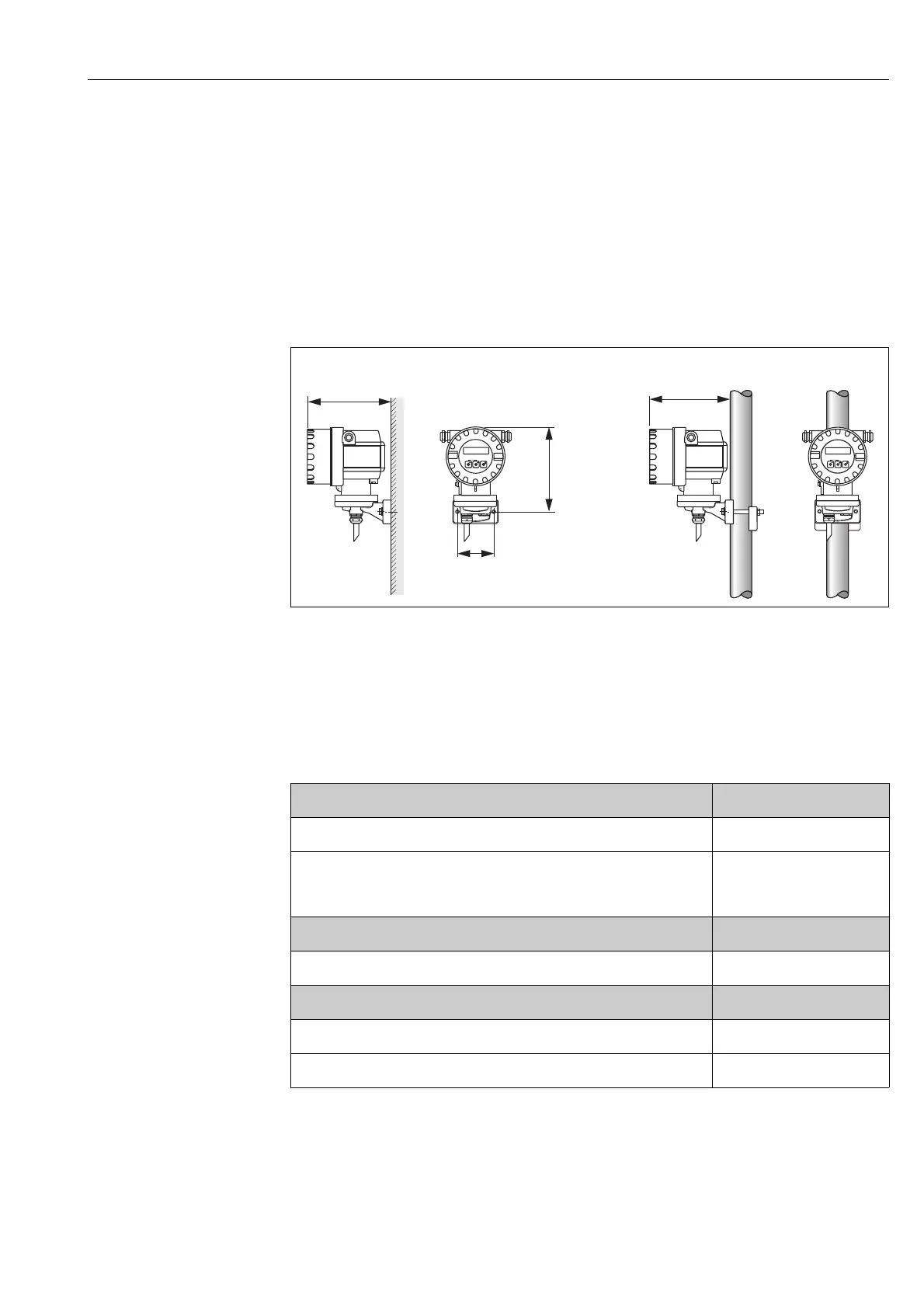

Mount the transmitter as illustrated in → å 21.
a0005819
Fig. 21: Mounting the transmitter
A Direct wall mounting
B Pipe mounting
3.4 Post-installation check
Perform the following checks after installing the measuring device in the pipe:
190
Esc
A
&185
Esc
B
80
172.5
Device condition and specifications Notes
Is the device damaged (visual inspection)? -
Does the device correspond to specifications at the measuring point, including
process temperature, process pressure, ambient temperature, measuring range,
etc.?
→ ä 64
Installation Notes
Are the measuring point number and labeling correct (visual inspection)? -
Process environment / process conditions Notes
Are the inlet and outlet runs respected? → ä 12
Is the measuring device protected against moisture and direct sunlight? -
