5.2 Brief guide to the function matrix
!
Note!
• Please refer to the general notes on → ä 30.
• Function matrix overview → ä 67
• Detailed description of all functions → ä 69
The function matrix is a two-level construct: the function groups form one level and the groups'
functions the other.
The groups are the "highest-level grouping" of the operating options for the measuring device. A
number of functions is assigned to each group. You select a group in order to access the individual
functions for operating and parameterizing the measuring device.
1. HOME position → F → Enter the function matrix
2. Select a function group (e.g. OPERATION)
3. Select a function (e.g. LANGUAGE)
Change parameter/enter numerical values:
P → Select or enter enable code, parameters, numerical values
F → Save your entries
4. Exit the function matrix:
– Press and hold down the Esc key (X) for more than 3 seconds → HOME position
– Repeatedly press Esc key (X) → Return step by step to HOME position
A0001142

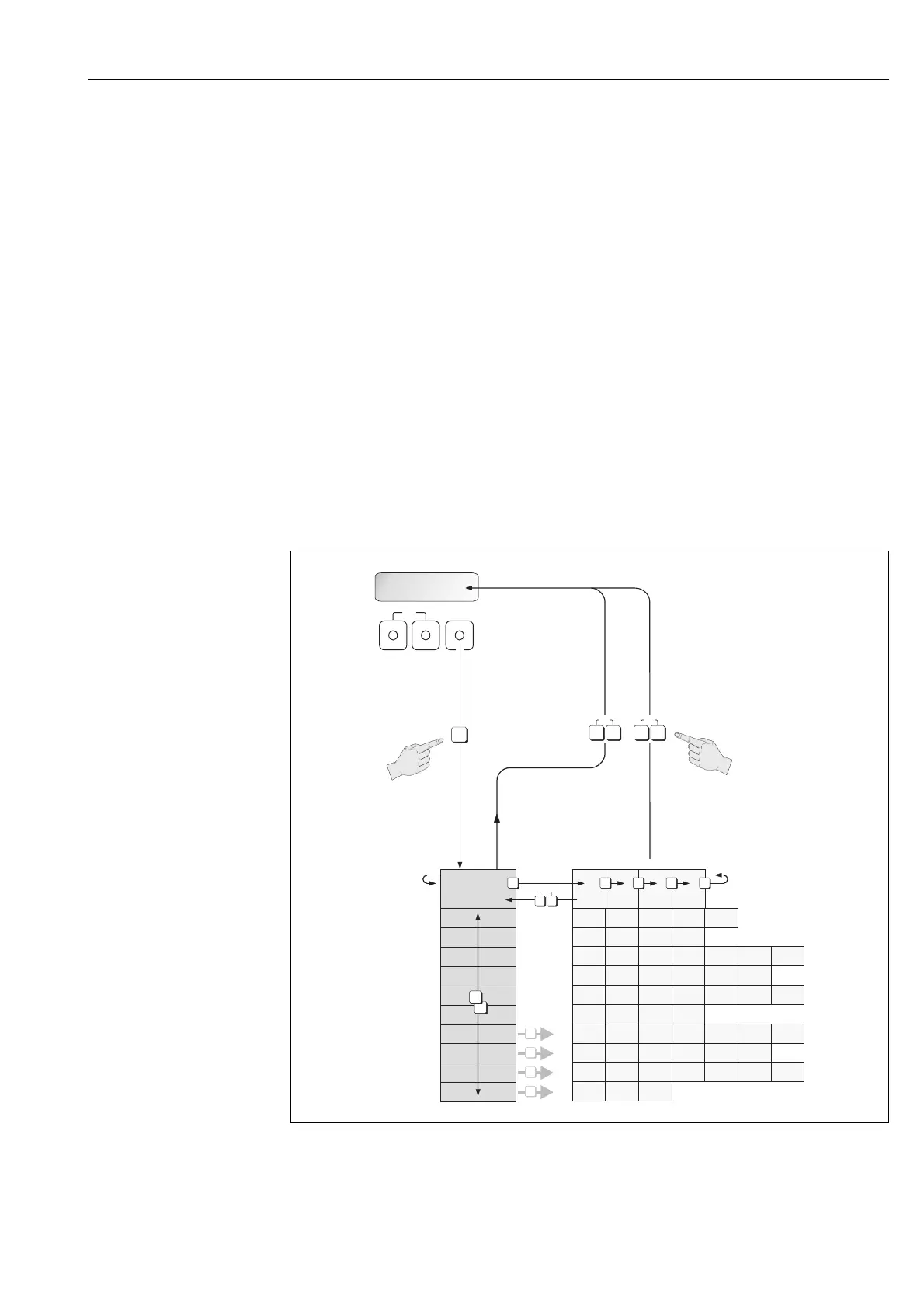

Fig. 30: Selecting functions and configuring parameters (function matrix)
