Wiring Proline Prosonic Flow 91
22 Endress+Hauser
4 Wiring
4.1 Connecting the sensor connecting cables
4.1.1 Connecting Prosonic Flow W
!
Note!
The outer shield of the sensor connecting cable (triaxial cable) is grounded by a ground disk in the
cable feedthrough (A). This grounding is absolutely essential to ensure correct measurement.
1. Unscrew the cover (c) of the cable gland (A). Remove the rubber seal (d).
2. Guide the sensor connecting cables (a, b) through the cover of the cable gland.
3. Guide the sensor connecting cables individually through the ground disk in the cable gland
holder (g) and into the connection compartment.
4. Plug in the connectors of the sensor connecting cables.
Left sensor upstream (a), right sensor downstream (b).
The connector engages with a click when correctly plugged in.
5. Spread the rubber seal (d) along side slits (e.g. using a screwdriver) and fix the cables in place
appropriately. Push up the rubber seal in the cable gland until the sensor cable sleeves are
pressed against the ground disk.
6. Close the cover of the cable gland (c) so that it is tight.
7. In the connection compartment, fix the two sensor connecting cables in place in the holder (i)
provided.
a0005843

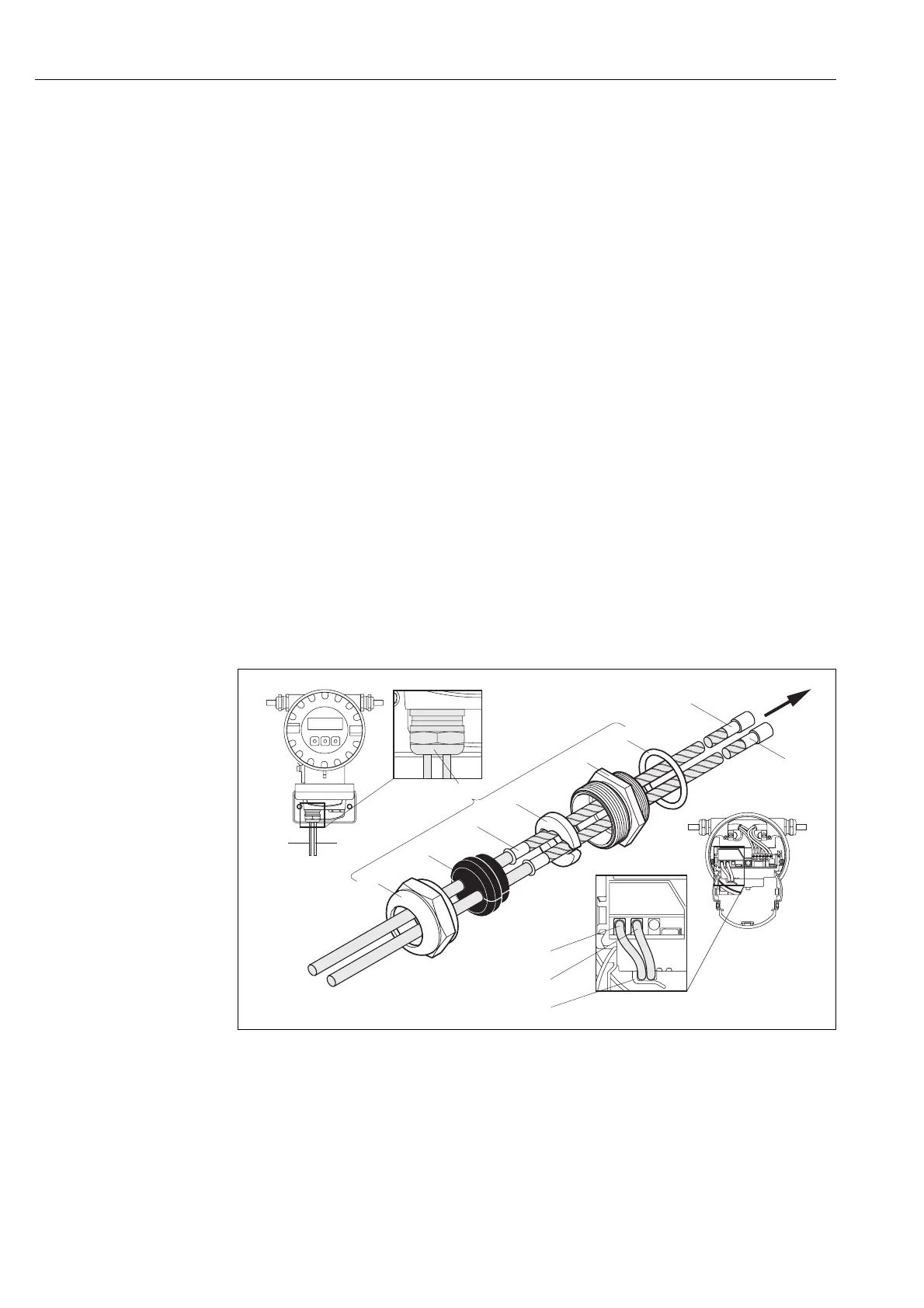

Fig. 22: Connecting the measuring system
a, b Sensor connecting cables
c Cable gland cover
dRubber seal
e Cable fixing sleeves
f Ground disk
g Cable gland holder
hSeal
i Cable holder
a
b
ab
h
a
b
A
c
d
e
f
g
i
