Proline Prosonic Flow 91 Troubleshooting
Endress+Hauser 57
a0005831

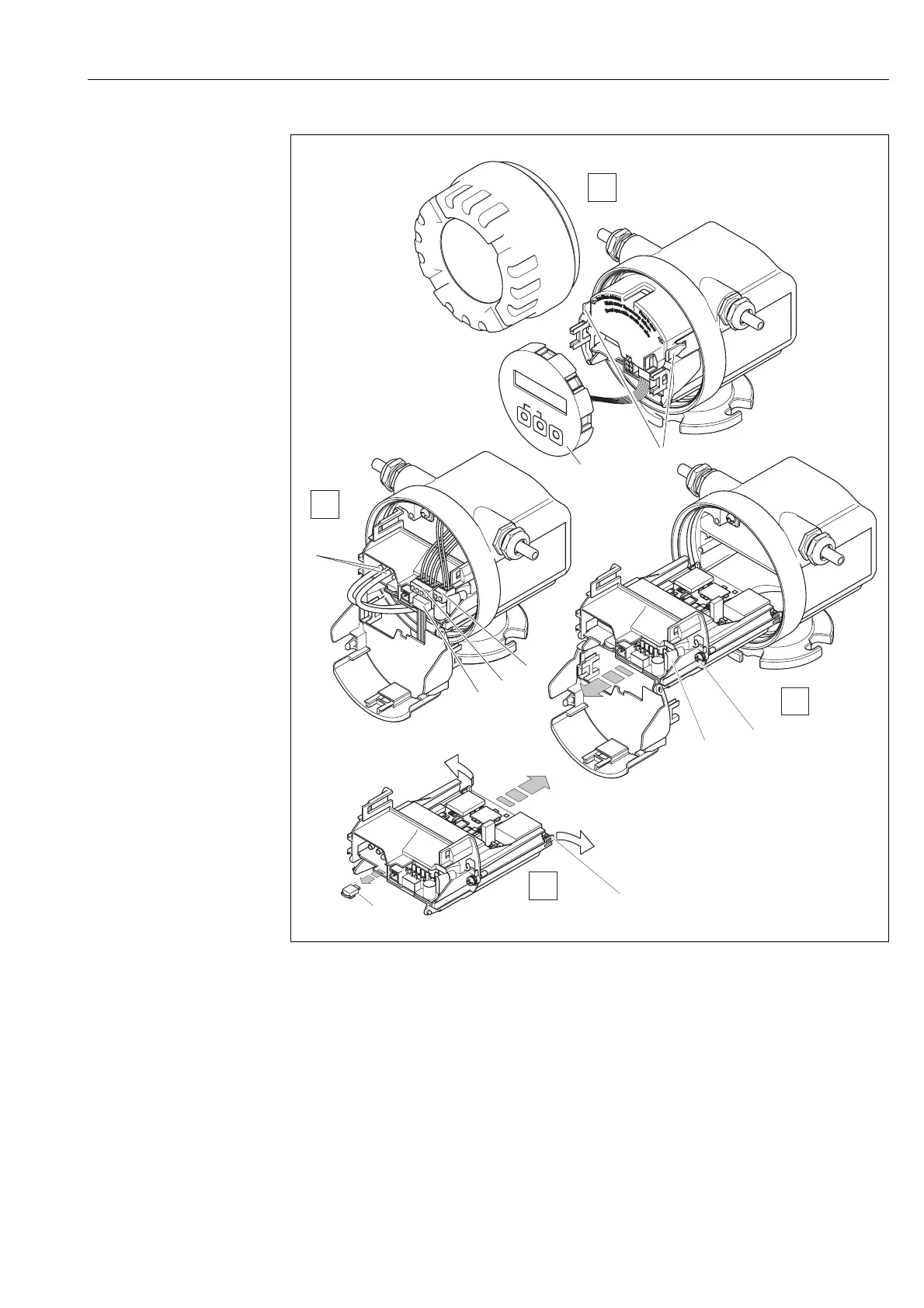

Fig. 35: Field housing: removing and installing electronics boards
a Local display
b Latches
c Connectors for sensor cable
d Connector for power supply
e Connector for current output and pulse/status output
f Connector of local display
g Securing screws of the board carrier
h Connector of the ground cable
i Latches for the electronics board
k T-DAT (transmitter-DAT)
Esc
1
4
2
a
b
c
d
e
f
g
h
3
i
k
