Endress+Hauser SpectraSensors SS2100i-1 - Table 3-4 ASCII Character Map

NS 5.14 Firmware
3–28 4900002262 rev. B 3-23-21
If using the AMS100 software to update these values, the characters desired
can be typed in directly from the PC keyboard. However, only the keys on the
PC keyboard are supported. For instance, superscript values for engineering
units such as mg/m
3
are not supported. To use a superscript value (superscript
3
equates to hex 1F from Table 3–4), Modbus must be used to download the
desired characters.
• Val 1 Concentration: Sets the concentration value of validation gas
supply #1.
• Val 2 Concentration: Sets the concentration value of validation gas
supply #2.
• Val 1 Value: Measured concentration (in selected engineering units)
of validation gas 1.

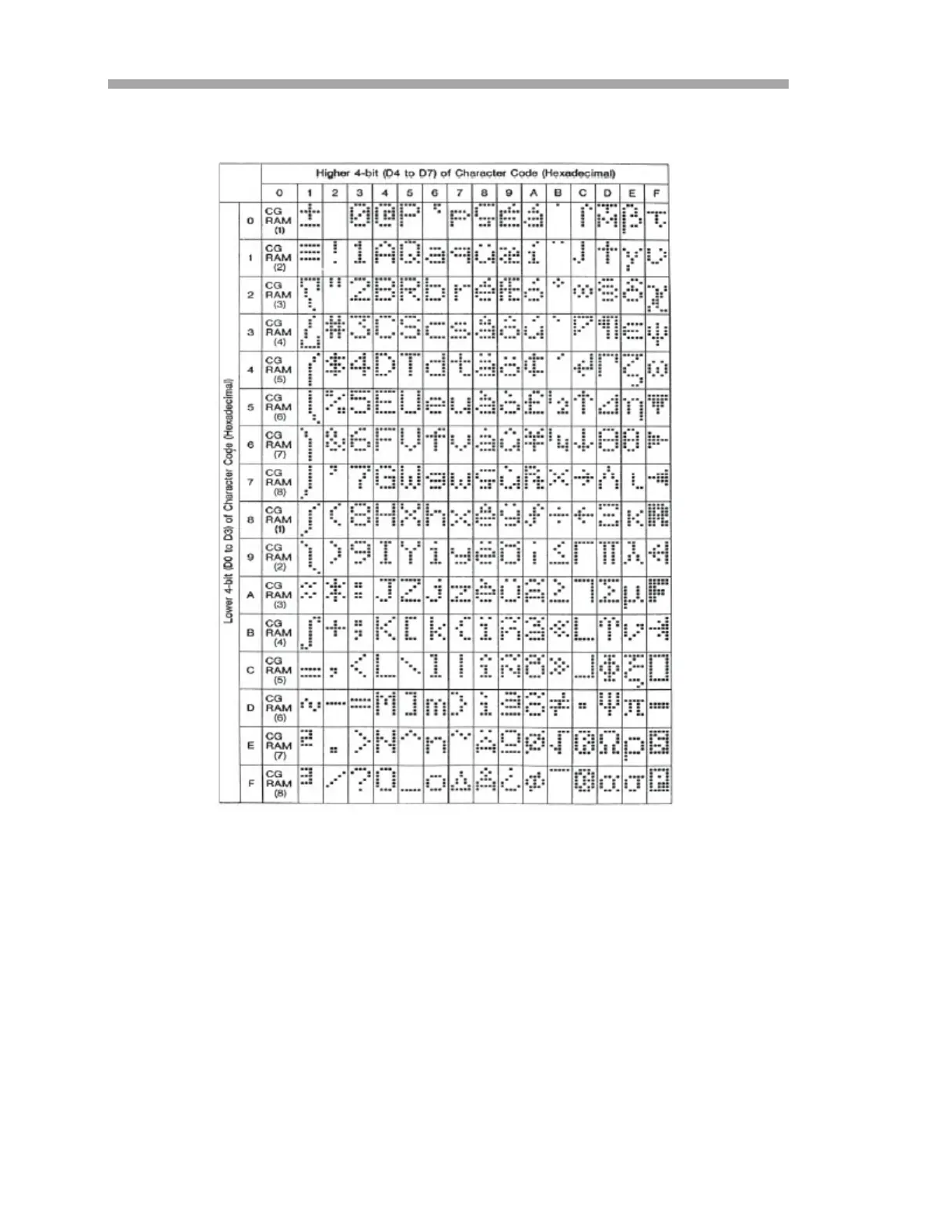

Table 3–4 ASCII Character Map
