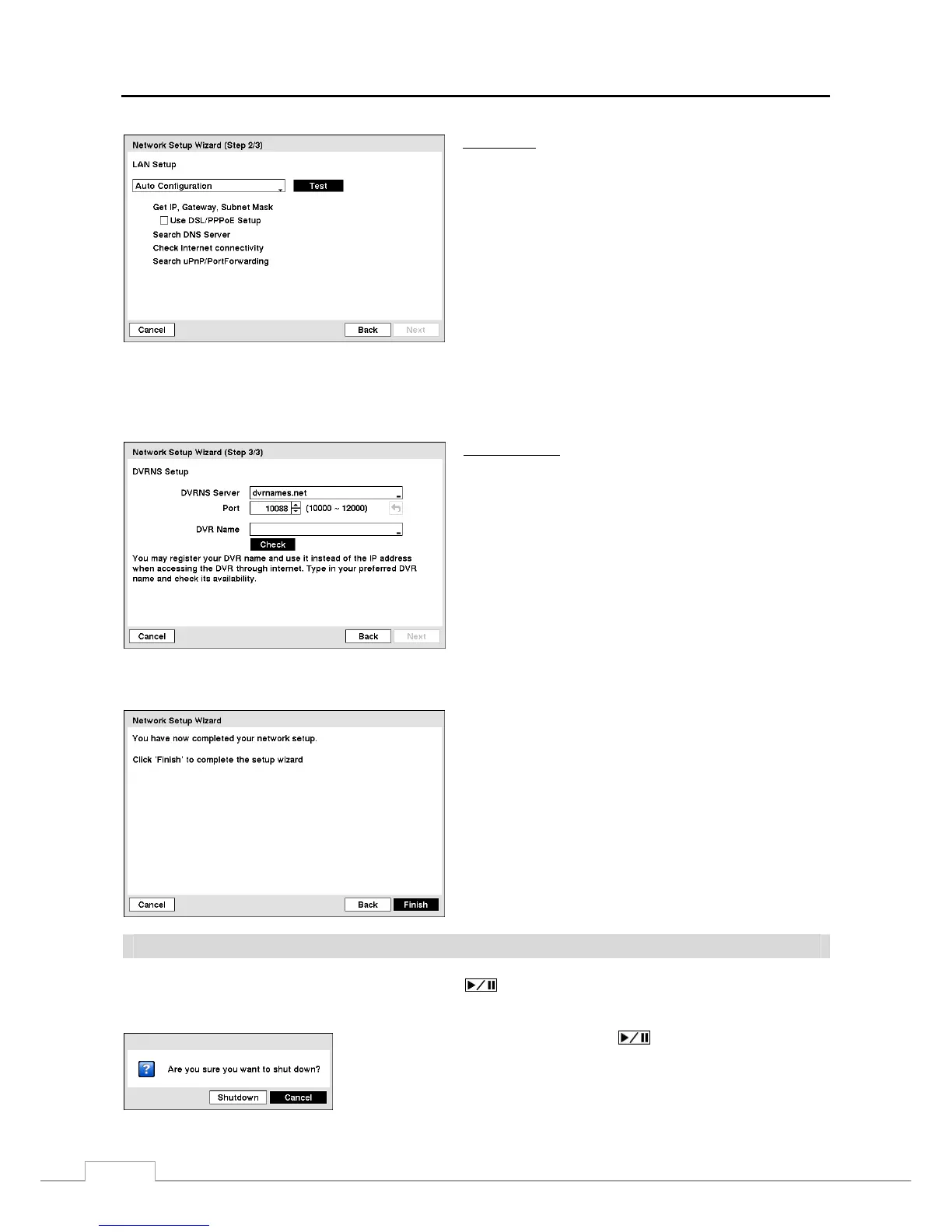

LAN Setup
Select between Auto Configuration and Manual Configuration
for network configuration, and then select the Test button to
test the network configuration you selected.
NOTE: Selecting Auto Configuration allows the DVR to
automatically obtain LAN parameters (IP address,
Gateway, Subnet Mask and DNS Server address).
Selecting Manual Configuration allows you to set
up LAN parameters manually.
NOTE: The network configuration you set should be tested
by selecting Test, otherwise the Next button will
cannot be selected, and cannot move to the next
step.
y Use DSL/PPPoE Setup: Selecting the box allows you to
set up the DSL network. Entering the ID and password for
DSL connection is required.
DVRNS Setup
y DVRNS Server: Enter the IP address or domain name of
the DVRNS server.
y Port: Set the port number of the DVRNS server.
y DVR Name: Enter the DVR name to be registered on the
DVRNS server.
y Check: Select the box to check whether or not the name you
entered can be used.
NOTE: The DVR name you entered should be checked by
selecting Check, otherwise the DVRNS changes
will not be saved.
NOTE: When entering no name or a name already registered
on the DVRNS server, an error message
displays.
Select the Finish button to finish the Setup Wizard.
Shutdown
Highlight Shutdown in the System menu and press the
button. The Shutdown screen displays asking you to
confirm whether or not you want to shut the system down.
After selecting Shutdown and pressing the
button, a screen will appear
telling you when it is safe to disconnect power.
