User’s Manual
32
NOTE: Sequence cannot be used in the 4x4 display mode.
You can adjust the display dwell time by highlighting the box beside Interval and pressing the button. You can
select dwell intervals ranging from 1 second to 1 minute.
Highlight Event Monitoring On and press the button. Pressing the button toggles between On and Off.
When it is On, the DVR will display the camera associated with the event when an event occurs.
Highlight the VGA tab to switch to the VGA screen.
Highlight the box beside Resolution and press the
button. You can select from 800x600, 1024x768 and
1280x1024.

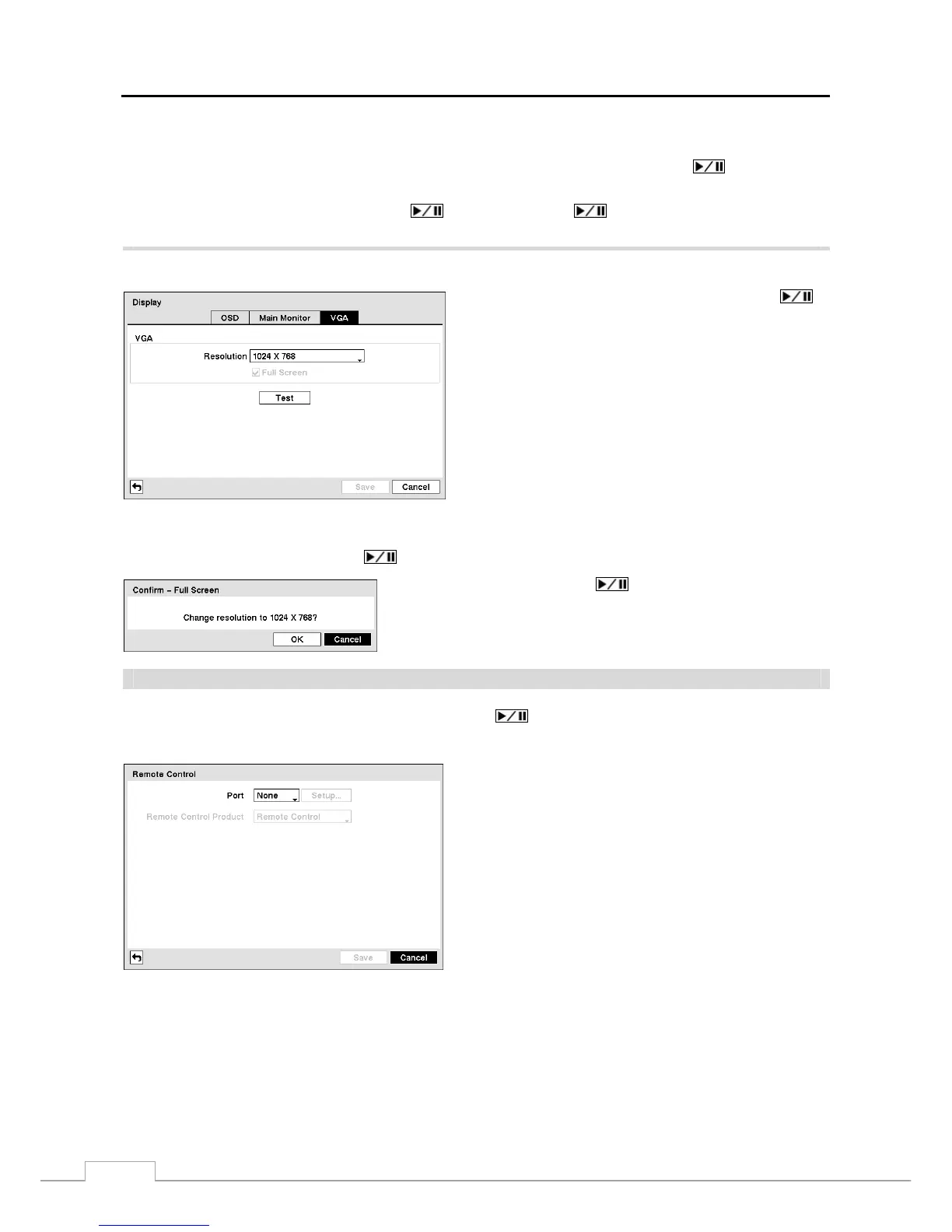

Figure 35 — VGA screen.
Highlight the box Test box and press the
button to test how the screen will be displayed with the resolution you set.
Remote Control
Highlight Remote Control in the Devices menu and press the
button. The Remote Control setup screen allows
you to select a port and make correct settings for a remote keyboard.
Highlight the box beside Port and select from None, RS232
and RS485. If the RS232 port and RS485 port are in use for
PTZ control, networking or text input, the remote keyboard
cannot be configured.
Highlight Setup… and select the correct Baud Rate, Parity,
Data Bits and Stop Bits for the device you are connecting to
the DVR.
Highlight the box beside Remote Control Product and select
the device from the list.
Figure 36 — Remote Control setup screen.
Highlighting OK and pressing the
button applies resolution changes.
