44
WSG-1068 ENGINE

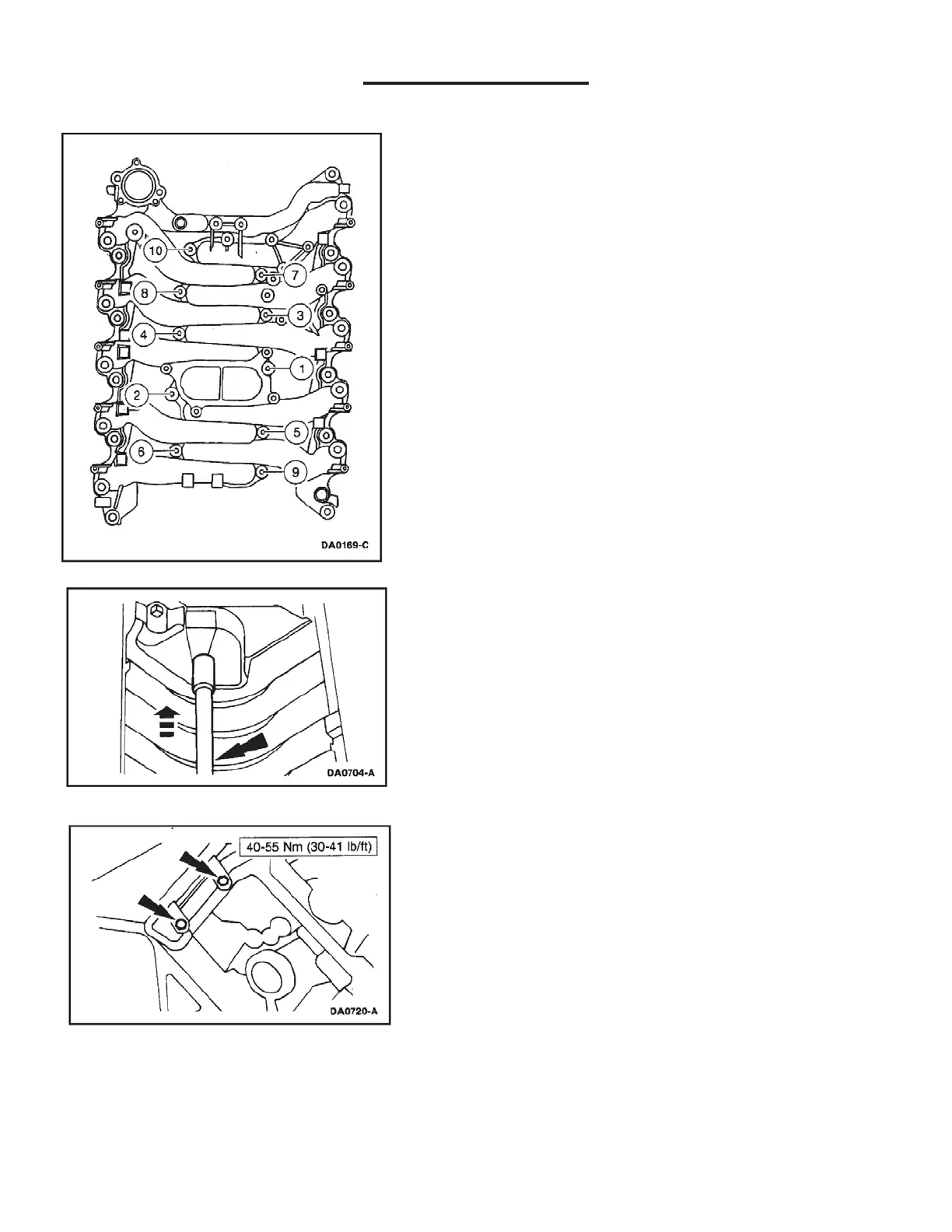

2. NOTE: Tighten the bolts in two stages.
Tighten the bolts in the sequence shown.
Stage 1: Tighten to 2 Nm (18 lb/in).
Stage 2: Tighten to 8-12 Nm (71-106 lb/in).
3. Position the water return tube as shown.
4. Install the heater water return tube studs.
