Front Mounting an S8 Chassis
ToinstalltheS8chassisinarackusingtheS8chassisfrontmountingbrackets:
1. Liftthechassisandslideitallthewayintotherackuntilthefrontmountingbracketsare
againstthefrontoftherackposts.
2. Use12screws(6perside)tosecurethechassisto
therack,startingwiththebottomholesand
workingtowardthetopofthechassis.SeeFigure 3‐3.

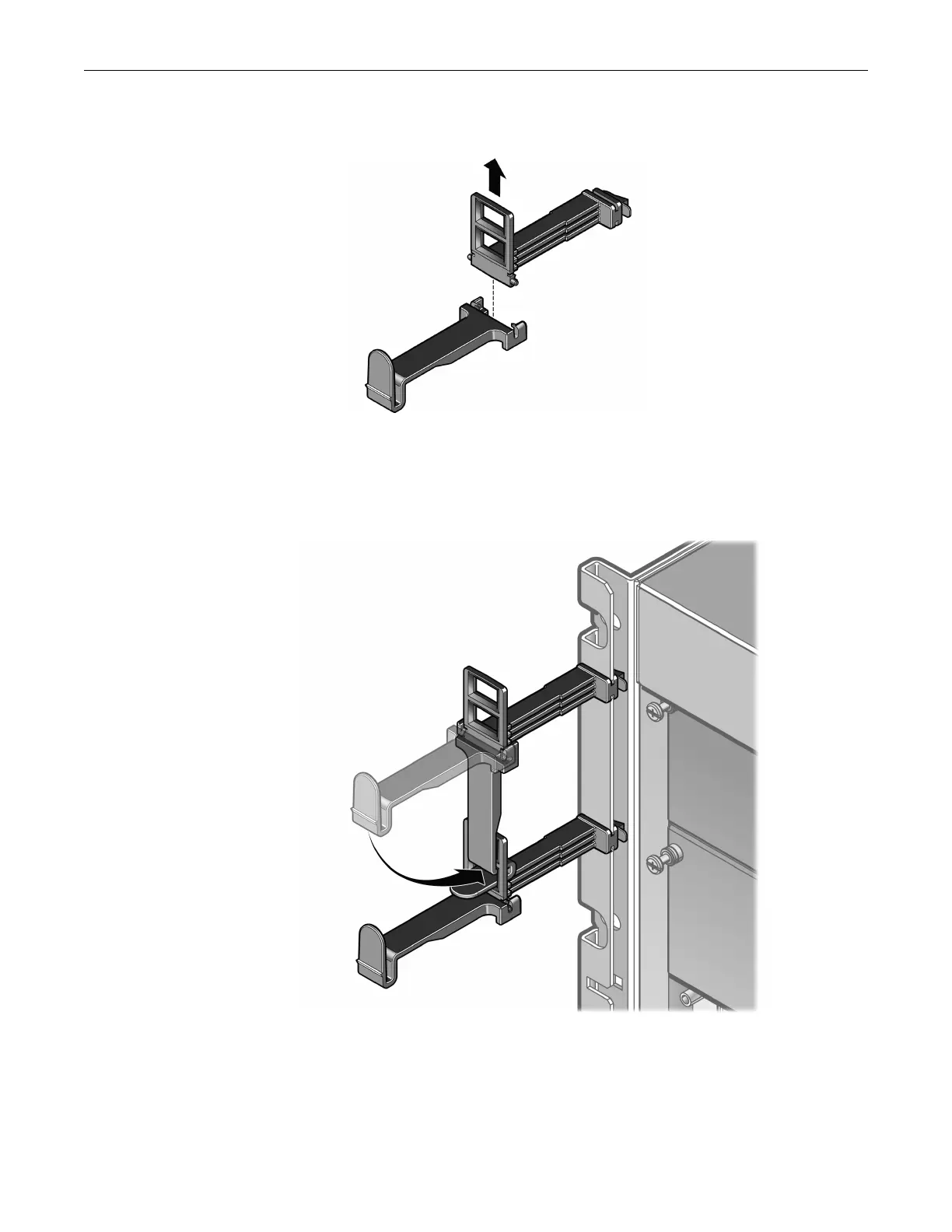

Figure 3-3 Front Mounting the S8 Chassis in a Rack
Warning: To help prevent personal injury, at least two people are required to lift the chassis into
the rack.
Advertencia: Para ayudar a prevenir alguna lesión personal , al menos dos personas son
requeridas para levantar el chasis y meterlo al rack.
Warnhinweis: Zum Schutz vor körperlichen Schäden, sollten sie mit min. zwei Personen das
Chassis in das Rack heben.
Note: Refer to Table A-5 on page A-3 for recommended torque values to use when installing the S8
chassis using standard threaded fastener machine screws and bolts.
