Mid-Mounting an S8 Chassis
ToinstalltheS8chassisinarackusingthemid‐mountingbrackets:
1. Liftthechassisandslideitallthewayintotherackuntilthemid‐mountingbracketsare
againstthefrontoftherackposts.
2. Use14screws(7perside)tosecurethechassistotherack,
startingwiththebottomholesand
workingtowardthetopofthechassis.SeeFigure 3‐4.

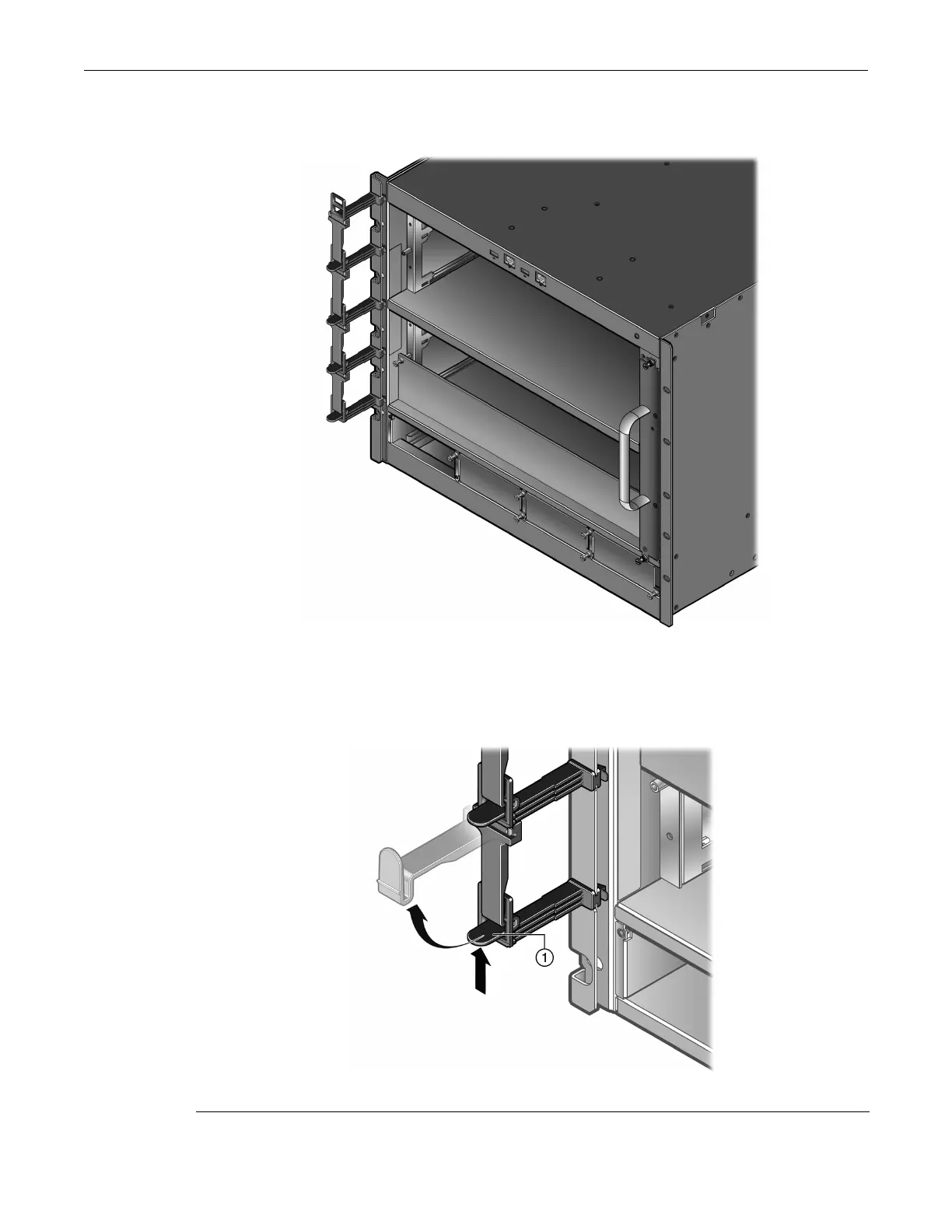

Figure 3-4 Mid-Mounting the S8 Chassis in a Rack
Note: You must install the mid-mounting brackets on the S8 chassis before installing the S8
chassis in the rack. See “Installing the Mid-mount Brackets” on page 3-4.
Warning: To help prevent personal injury, at least two people are required to lift the chassis into
the rack.
Advertencia: Para ayudar a prevenir alguna lesión personal , al menos dos personas son
requeridas para levantar el chasis y meterlo al rack.
Warnhinweis: Zum Schutz vor körperlichen Schäden, sollten sie mit min. zwei Personen das
Chassis in das Rack heben.
Note: Refer to Table A-5 on page A-3 for recommended torque values to use when installing the S8
chassis using standard threaded fastener machine screws and bolts.
