Connecting Power to the S-POE-PS Power Supplies
3-24 Chassis Setup
Connecting Power to the S-POE-PS Power Supplies
ACinletsatthefrontofthePoEshelfprovidepowertotheS‐POE‐PSpowersuppliesinstalledin
thePoEsubsystem.AnACpowercordisshippedwitheachS‐POE‐PS.
ToconnecttheS‐POE‐PSpowersuppliestoACpower:

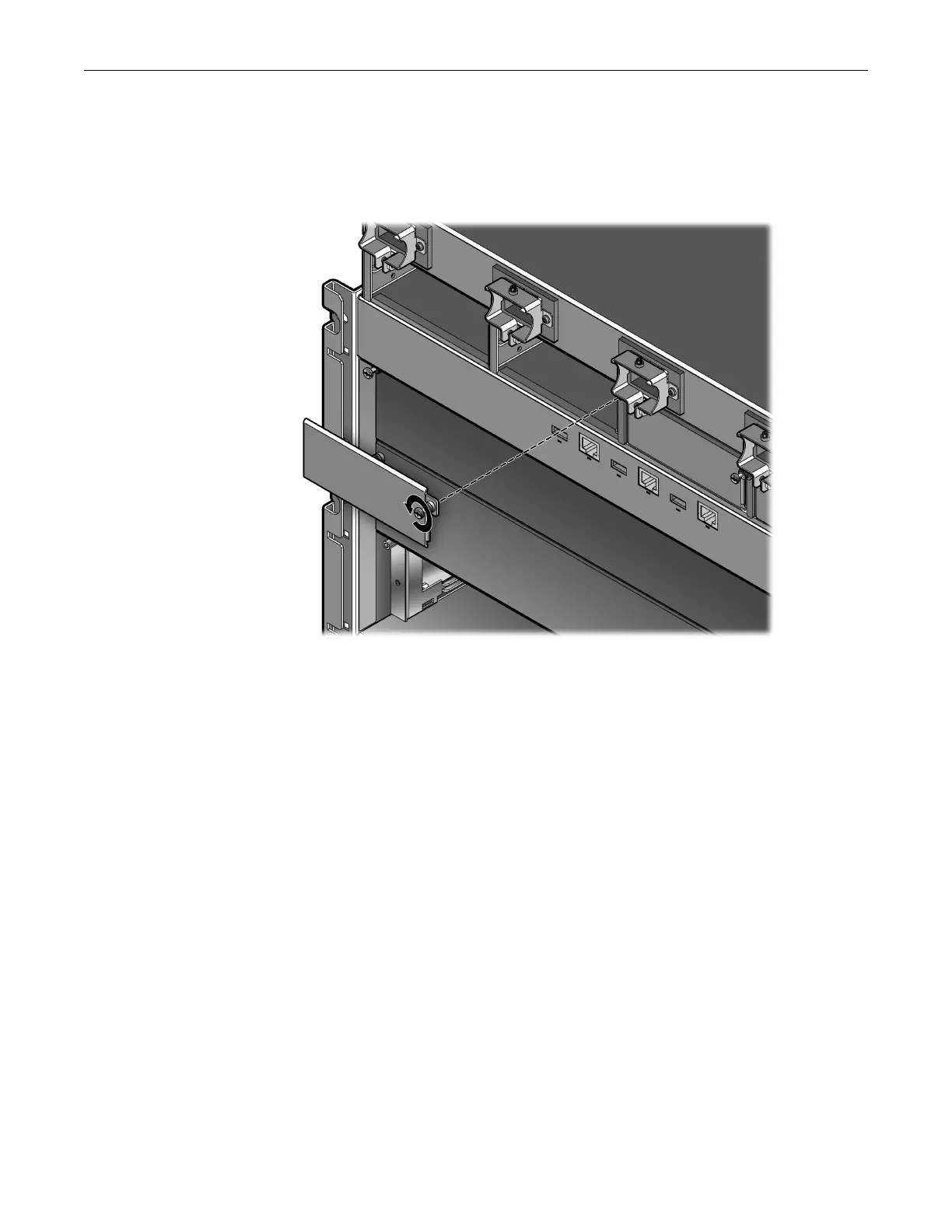

1. PlugtheACpowercordintothe
appropriateACinletconnectoronthePoEshelf.TheAC
inletconnectorsarenumbered.
2. PlugtheotherendoftheACpowercordintoaseparatelyfusedACpoweroutletthatmeets
thepowerspecificationsprovidedinAppendix A,SpecificationsandRegulatory
Compliance.
3. ChecktoseeiftheDCpowerLED
isgreenandtheACpowerLEDisoff.Otherwise,referto
“S‐POE‐PSPowerSupplyLEDs”onpage 3‐27todeterminetheproblem.
4. Repeatsteps1through3foreachadditionalpowersupply.
Ifyouneedadditionalhelpwiththisinstallation,contactEnterasysNetworks.Referto“Getting
Help”onpage xviiforinstructions.
